200Kw Electric Motor High Pressure Mud Pump Cement Grouting Drilling
1 set
MOQ
negotiable
Price
200Kw Electric Motor High Pressure Mud Pump Cement Grouting Drilling
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: XITAN
Certification: CE;
Model Number: As customised
High Light:

200Kw High Pressure Mud Pump

,

Grouting Drilling High Pressure Mud Pump

,

200Kw drilling mud pump
Payment & Shipping Terms
Packaging Details: Nude in 20gp Container
Delivery Time: 30-90days
Supply Ability: 100set Per Year
Specifications
Structure: Compact
Motor Power: 200kw
Application: Ground Improvement Construction
Performance: High Pressure, Variable Frequency
Inlet Diameter: 60mm
Outlet Diameter: 32mm
Package: Nude,woody Box,As Customised
Condition: NEW
Product Description

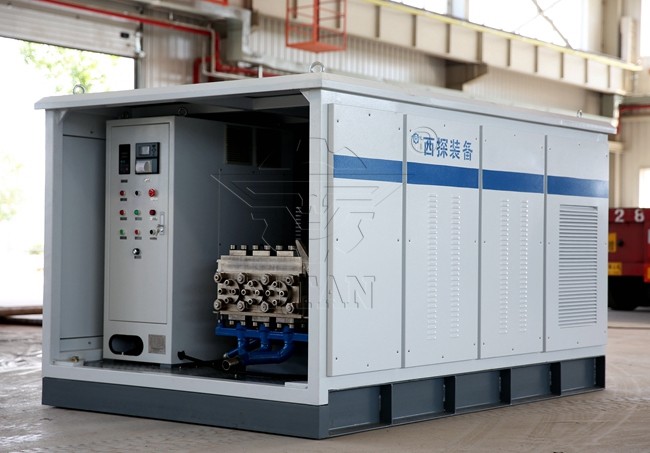

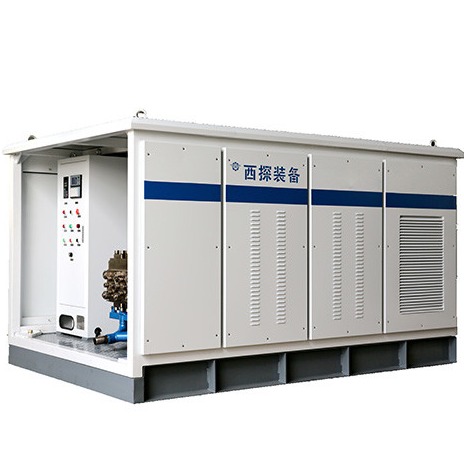

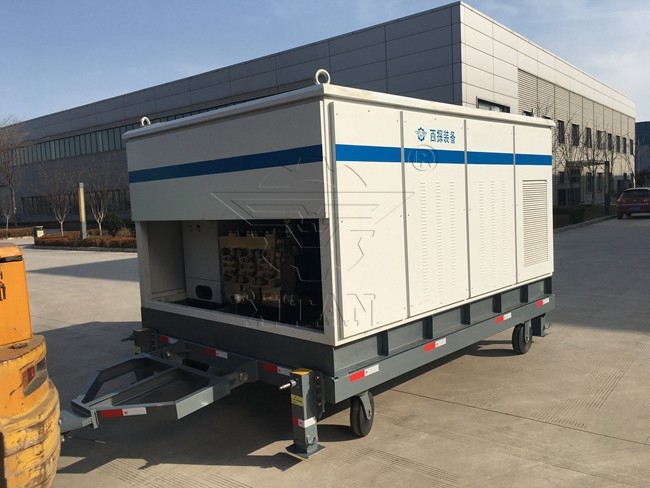

Customised Construction High Pressure Variable Frequency Grout Pump

This grouting pump are a universal high-pressure grouting pump and is used for grouting in soil, earth foundation stabilization, waterproofing, tunnel lining, underwater foundations, bridge decks, deep well casing, slope line grouting, etc.



Technical Parameters(The below as reference)



Model

 DQB---60
Plunger diameter (mm) 85
Plunger stroke (mm) 152.4
Maximum grouting flow (L/min) 150
Maximum pressure (MPa) 45
Motor power (Kw) 200
Inlet diameter (mm) 60
Outlet diameter (mm) 32
Total weight (Kg) 7200
Dimentions (mm) 3726X2400X2100

200Kw Electric Motor High Pressure Mud Pump Cement Grouting Drilling 0

We can provide high pressure and Variable Frequency cement grouting pump as customised

Don't hesitate to send your requirements to us!
