90KW High Pressure Mud Pump Or Cemment Jet Grouting Pump Frequency Control
1 set
MOQ
negotiable
Price
90KW High Pressure Mud Pump Or Cemment Jet Grouting Pump Frequency Control
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: XITAN
Certification: CE;
Model Number: ZJB/BP90(A)
High Light:

90KW Jet Grouting Pump

,

90KW High Pressure Mud Pump

,

Frequency Control High Pressure Mud Pump

Payment & Shipping Terms
Packaging Details: Nude in 20gp Container
Delivery Time: 30-90days
Supply Ability: 100set Per Year
Specifications
Structure: Compact
Motor Power: 90kw
Application: Ground Improvement Construction
Performance: High Pressure, Variable Frequency
Inlet Diameter: 50mm
Outlet Diameter: 25mm
Package: Nude,woody Box,As Customised
Condition: NEW
Product Description

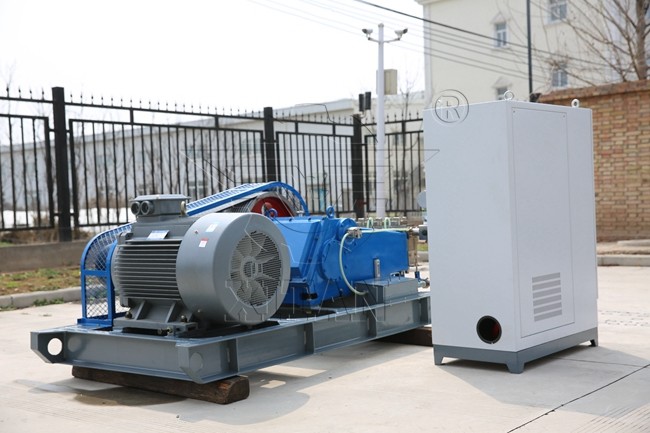

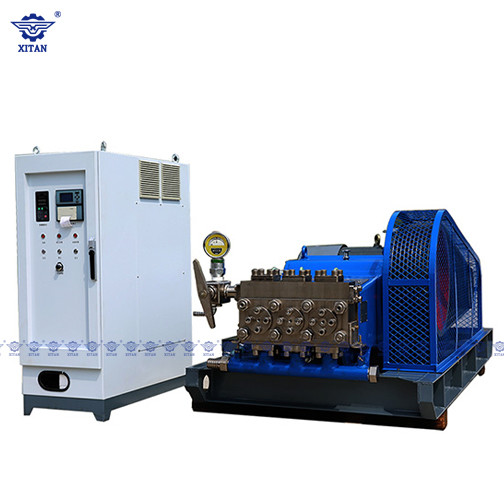

ZJB/BP90(A) 90KW High Pressure Cment Grouting Pump



Application

ZJB/BP90(A) Cment Grouting Pump is frequency conversion high pressure grouting pump,which often works together with cement mixer. The idea choice of engineering grouting.

It is applied in highway, railway, mine, port, national defense and other fields of foundation reinforcement, building settlement treatment, foundation impermeable curtain, retaining cofferdam, slope anchorage, mine plugging, shaft wall and other engineering construction.



Main feature

1. Electric mortar pump.

2. High performance mortar pumpt for pumping, helping cement injecting for gound improvement..

3. Simple and robust.

4. Easy to use.



Parameter



Model Name ZJB/BP90 ZJB/BP 90(A)
Plunger diameter 45mm 55mm
Plunger stroke 120mm 120mm
Maximum grouting flow 114L/min 160L/min
Maximum pressure 50MPa 300MPa
Motor power 90Kw 90Kw
Inlet diameter 50mm 50mm
Outlet diameter 25mm 25mm
Total weight 2200Kg 2200Kg
Dimentions

2490X1196X915mm

2490X1196X915mm
