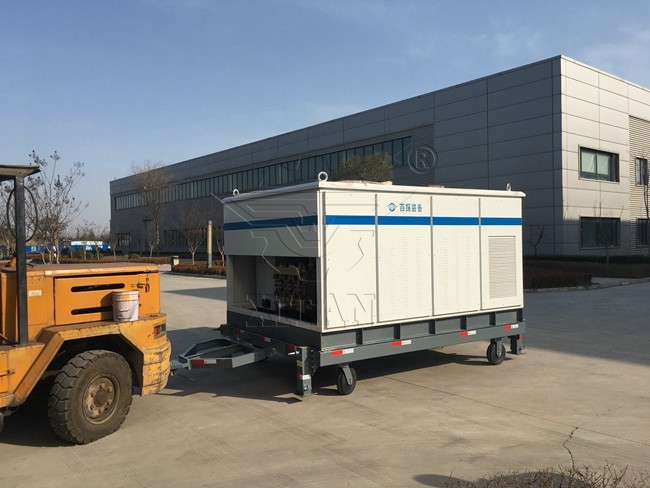

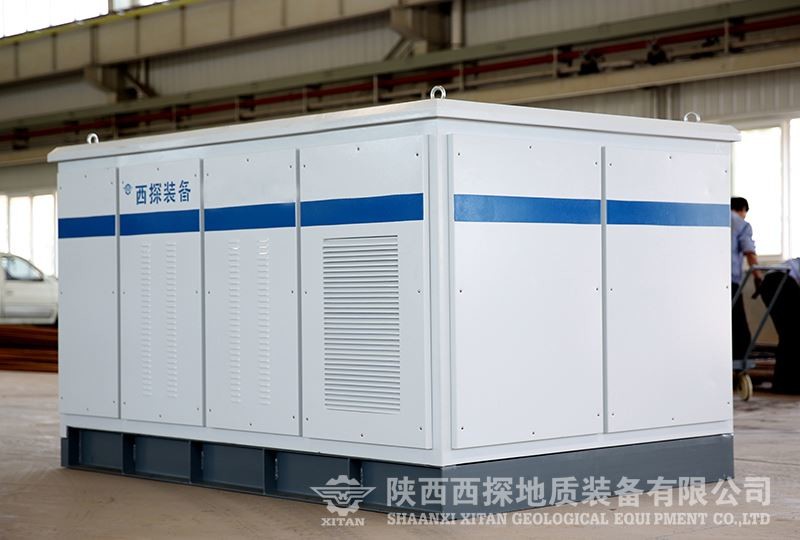

DQB30A/30C Construction High Pressure Variable Frequency Grout Pump
Application
High pressure variable frequency grouting pump series products are applied in highway, railway, mine, port, national defense and other fields of foundation reinforcement, building settlement treatment, foundation impermeable curtain, retaining cofferdam, slope anchorage, mine plugging, shaft wall and other engineering construction.
Technical Parameters
Model Data |
DQB-30A | DQB-30C |
Plunger diameter | 60mm | 65mm |
Plunger stroke | 100mm | 100mm |
Maximum grouting flow | 95L/min | 100L/min |
Maximum pressure | 50MPa | 40MPa |
Motor power | 132Kw | 132Kw |
Inlet diameter (mm) | 38mm | 38mm |
Outlet diameter (mm) | 25mm | 25mm |
Total weight (Kg) | 3250Kg | 4600Kg |
Dimentions (mm) | 2700X1800X1600mm | 3350X2226X1600mm |
