Depth 50 Meter Hydraulic Jet Grouting Equipment Without Cabin
1set
MOQ
Negotiation
Price
Depth 50 Meter Hydraulic Jet Grouting Equipment Without Cabin
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: XITAN EQUIPMENT
Certification: CE;ISO9001:2015
Model Number: XL-50C
High Light:

Hydraulic Jet Grouting Equipment

,

50 Meter Jet Grouting Equipment

,

50 Meter anchor drill rig

Payment & Shipping Terms
Packaging Details: Container+Wooden Case
Delivery Time: 90-180days
Payment Terms: T/T
Supply Ability: 200/Pieces/Year
Specifications
Driller Type: Jet Grouting Drill Rig
Drilling Depth:: 50m
Cement Pile Dia: 0.6-0.8m
Drilling Way: Rotary
Moving Type: Crawler
Power System: Electric
Construction: Ground Improvement, Micro-piles
Condition:: New
Product Description

Hydraulic crawler type jet grouting drilling rig XL-50C



The Capacity of jet grouting drilling rig

XL-50C crawler jet grouting drill rig is mainly adapted for reinforcement foundation construction of railways, highways, bridges, dam , various industria buildingsl and civil buildings.anchoring for Pit foundation support; If it’s matched with air compressors and pneumatic down-the-hole hammers can be used for drilling with following pipe. It can be not only used for general jet grouting (swing jetting, fixed jetting) engineering construction, but also for shallow hole drilling and engineering exploration drilling.



Parameter of jet grouting drilling rig

Drilling depth 50m
Drill rod diameter φ42mm φ50mm φ73mm
Inclination of drilling hole left and right:± 3° forward:10°backward:90°
Maximum torque 3000N/m
Moving speed 1.km/h
Climbing ability 30°
Power head speed

High:0—148r/min

Low:0—48r/min

Power head Rated lifting force 30kN
Power head allowable pressure 12kN
Power head lifting/pressurizing speed Fine-tuning jet grouting speed:0.06~0.9/1.8 m/min
Fast lifting of power head 0~22/0~28 m/min
Power head stroke 3500mm
Dimensions (working) 2600×1800×4600
Dimensions (Transportation) 1780×1800×4600
Weight 2800 kg

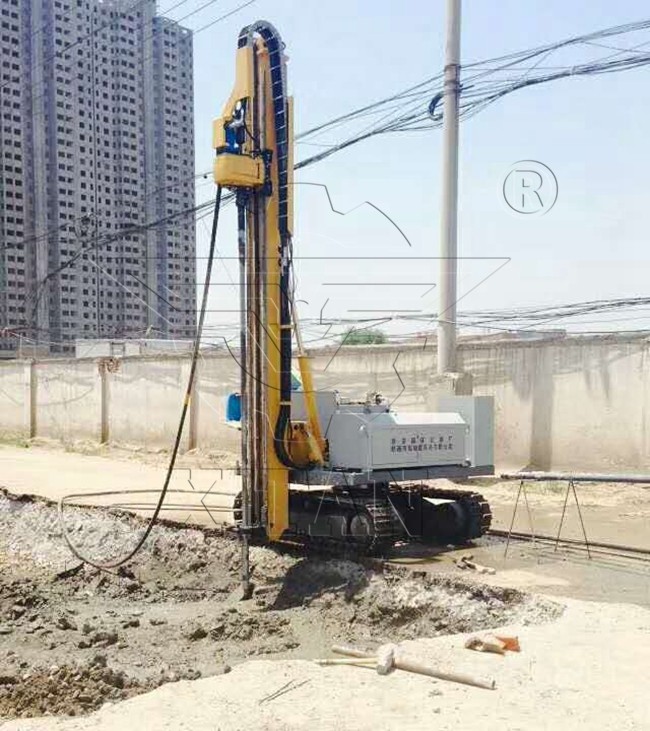

Depth 50 Meter Hydraulic Jet Grouting Equipment Without Cabin 0

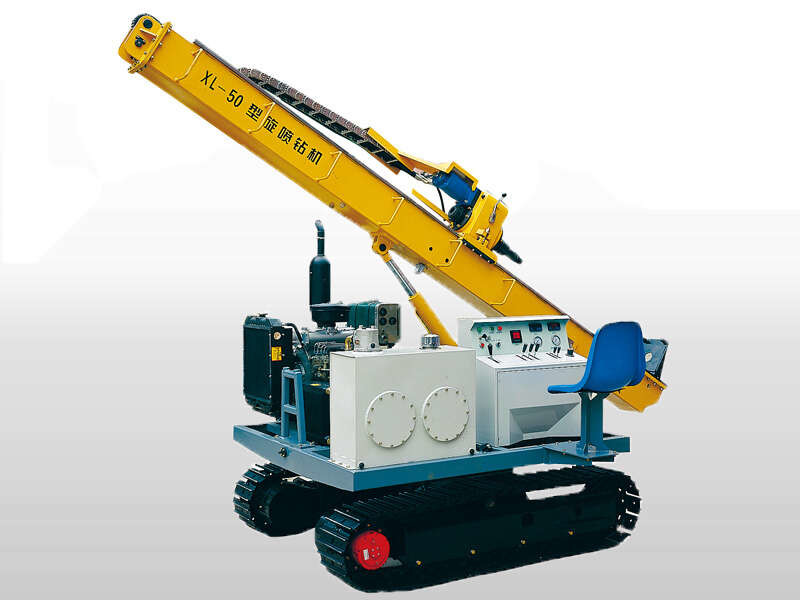

Depth 50 Meter Hydraulic Jet Grouting Equipment Without Cabin 1

Main features of hydraulic driling rig

1. This hydraulic jet grouting drilling rig adopts full hydraulic control, convenient and flexible operation, crawler type is convenient moving and quick walking and moving in place. power head is long stroke,Assisant time is shorten.

2.High efficiency and Low energy consumption. Direct-acting load feedback and fine-tuning hydraulic system, power changes with the loading.

3. The special valve with friction positioning is adopted for the gyrator, and meets the requirements of jet grouting process.

4. The power head has a wide variable speed range, which can meet the requirements of various formations and different drilling techniques.

5. Equipped with a slewing bearing, the hole position can be transferred to the side of the crawler when needed.

6. Compact structure for centralized operation, it’s convenient and safe.

7. Equipped with display devices for vertical drilling tower, power head rotation and lifting speed.
