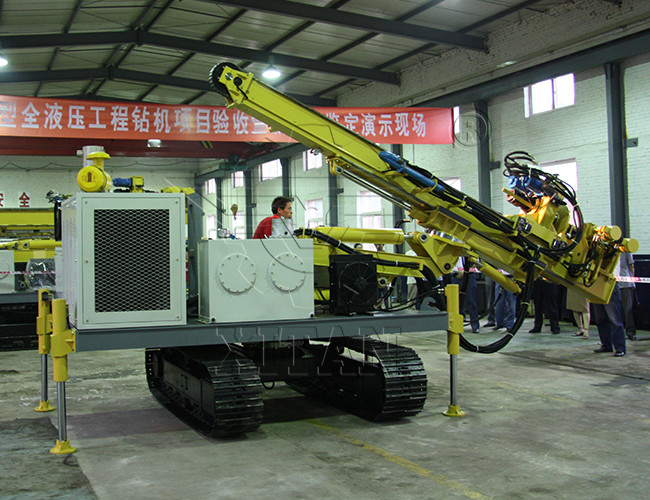

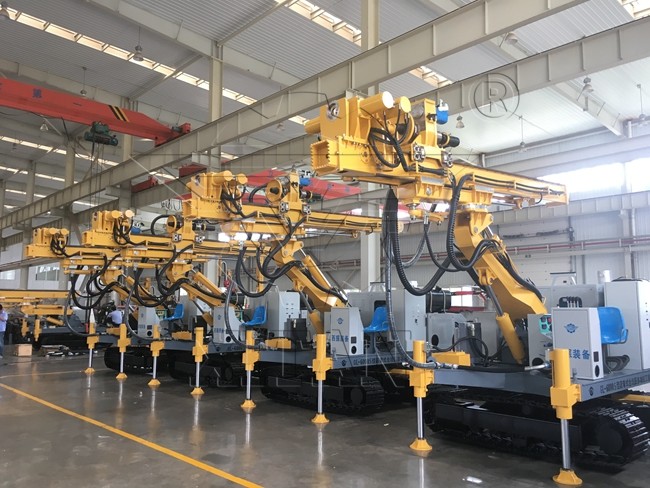

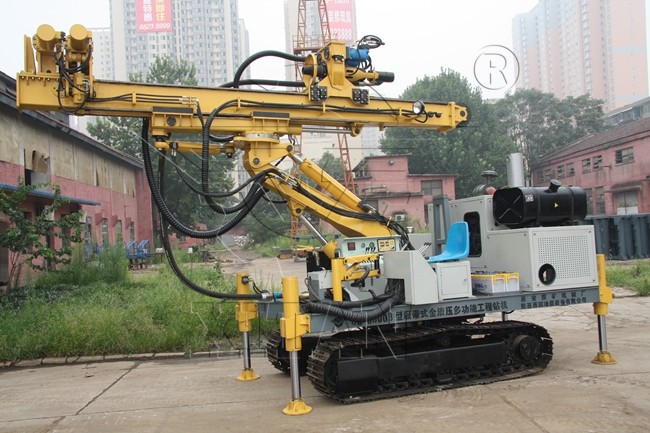

Full Hydro Multifunction 58kN Construction Drilling Rig
Product Name: Jet Grouting Rig
Type: Crawler, Rotary, Jet Grouting
Condition: New
Power Type: Electric/Diesel
Dimension(L*W*H): 5.6m×2m×2.93m
Drill Diameter (mm): 110-400mm
Drill Depth (m) : 50-200m
Drilling Angle: 360
Applicable Industries: Construction Works, ground Improvement
Pile Diameter: 2.2m
Supplier: Manufacture
Voltage: As a Requirement
Construction Scope of Drilling Rig:
1. Suitable for high-speed drilling in soil, sand, and other strata, mud slag discharge; three-wing drill bit, or horseshoe-shaped drill bit drilling.
2. Air down-the-hole hammer drilling and air slag discharge in rock formations and broken layers.
3. Hole bottom hydraulic hammer drilling and mud discharge slag in broken layer, sand egg layer, etc.
4. Drill robe or rob and casing combined drilling.
6. Meet single-tube, double-tube, triple-tube jet grouting drilling, and swing or fixed jet grouting technique requirements, (customer optional).
7. Equipment with the high-pressure grouting pump, mud mixer, rotary or swing jet drilling tool, deflector, nozzle, three-wing drill bit, horseshoe-shape drill bit, and PDC drill bit of Xi Tan Equipment Company.
8. Reducing joints is good for seamlessly connecting with domestic and foreign drilling tools.
Technical Data:
| Mode | GL6000S | |||
| Motor | Motor 55kW | Diesel 56kW | ||
| Weight | 7.9t | |||
| Size | 5600mm×2000mm×2930mm | |||
| Speed | High 5.06 km/h | Low 2.6km/h | ||
| Climbing Capacity | 20° | |||
| Diameter Pile | ||||
| Max Diameter | Max 2.2m | |||
| Max Depth | 200m | |||
| Power Head | ||||
| Feeding Stroke | 3m | |||
| Feeding Force | 58kN | |||
| Rotation Speed | Low 8～50.6r/min | |||
| High 16～101r/min | ||||
| Lifting Power | 110kN | |||
| Torque | 3000N.m～6000N.m | |||
| Borehole | ||||
| Depth | 50～200m | |||
| Diameter | 110～400mm | |||
| Drill pipe (diameter x length) | 60～89×2500mm | |||
| Horizontal Hole Height | High 3450mm | Low 338mm | ||
| Column | ||||
| Sliding Stroke | 1200mm | |||
| Pitch Angle | 120° | |||
| Swing Angle | 0°～90° | |||
| Drill Arm Pitching Angle | Elevation angle 35° |
Pitch Angle 16° |
||
| Hydraulic System | ||||
| Rated Flow | Main Pump | 100L/min | ||
| Sub-pump | 30L/min 15L/min | |||
| Rated Pressure | Main Pump | 21MPa | ||
| Sub-pump | 18MPa | |||
