Geological Disaster Compensation Grouting Multi Purpose Drill Rig
1Set
MOQ
Negotiable
Price
Geological Disaster Compensation Grouting Multi Purpose Drill Rig
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: XITAN EQUIPMENT
Certification: CE;ISO9001:2015
Model Number: EST-1
High Light:

Disaster Compensation Grouting Equipment

,

Geological Compensation Grouting Equipment

,

Multifunction Disaster rescuing truck

Payment & Shipping Terms
Packaging Details: container
Delivery Time: 90-180 days
Payment Terms: T/T
Supply Ability: 5 sets/year
Specifications
Product Name:: Emergency Equipment
Type:: Mounted On Trailer
Condition:: New
Power Type:: Electric
Core Components:: Motor, Pump,Drill Rig,Mixer,Air Compressor
Application: Emergency Rescuing Equipment
Supplier:: Manufacture
Service:: Customized,Design
Product Description

Geological Disaster Compensation Grouting Multi Purpose Drill Rig

Geological Hazard Response OR Disaster Emergency Rescuing
Harzard:Earthquake, Tsunami, Land slide, storm surge,flood
Solution purpose:Prevention and mitigation, Recovery
product description:

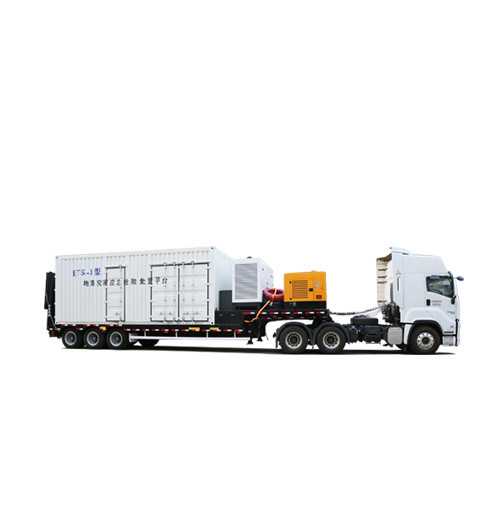

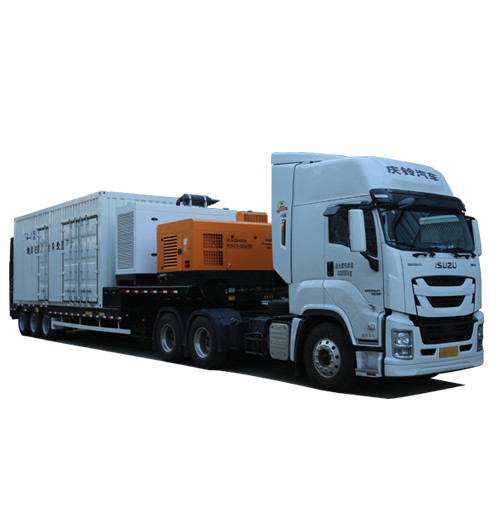

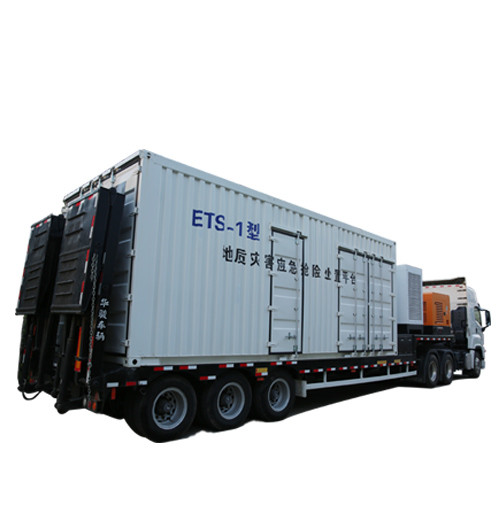

It is the customized equipment with remote monitoring system, which is grouped by customised low-plate semi-trailer, tractor, multi-function drilling rig, high-pressure grouting pump, mixing system, control cabinet, generator set, air compressor, drilling tools and others.
This equipment is widely used in compensation grouting in geological disaster control for rescuing construction such as roadbed and mountain landslides, road strutrure subsidence, mining collaspes inceidents. It can also performs drilling hole process rapidly by pneumatic DTH hammer and pipe drilling and spiral drilling. It is pplied in foundation construction,slope stability by anchoring and jet grouting , shield-tunneling face supported , drilling hole for the mine emergency rescuing , advanced geological forecast, high pressure jet grouting, cut-off water curtain, ground or soil improvement with various drilling techniques requirements, shallow drilling and geological prospecting drilling projects.

Feature:
1. Integrated rotary drilling, auger drilling, pneumatic down-the-hole hammer drilling, high-pressure rotary jet drilling and other drilling techniques.
2. It can reach the construction site quickly to save preparation time and start working immediately.
3. Centralized operation,reasonable equipment layout, and small working area.
4. The whole drilling rig system runs in a good condition and low failure rate.
5. Uninterrupted construction is possible within a radius of 100 meters.
6. Equipped with a remote monitoring system, it helps to reduce the number of people in site , ensure the safety of the command and decision-making team, and minimize the loss cuased by secondary damage.



Transportation vechicle



Equipment NameParameter itermParameter
TractorModelQL4250W2NCZ
Engine model6WG1-TCG51
Emission StandardsNational Ⅴ
Weight(kg)8870
Traction total weight of (kg)40000
Axles3
Semi-trailer lowbedClimbing ladderElectric hydraulic ladder (remote control )

Main Equipment group

GeneratorRate(kw)200 (National Ⅲ)

Air compressor



Engine(National Ⅲ)
TypeScrew air compressor
Air pressure(Mpa)1.5
Displacement(m3/min)13



Drilling rig

ModelGL-6000S
Drilling depth (m)50-200
Drilling diameter (mm)Φ110~Φ400
Drilling speed of power head (r/min)Min:8-55 Max:16-110
Torque of power head(Nm)3000-6000
Power head stroke(mm)3000
Maximum feed force(kN)58
Maximum pulling force(kN)110
Column sliding stroke(mm)1200
Driving speed(km/h)1.5
Power supplyElectric motor 55kw/Diesel engine56kw
Overall dimension(m)5.6x2x2.93
Weight(kg)9500

Frequency-conversion high pressure grouting pump



ModelZJB/BP-90A
Plunger diameter(mm)55
Plunger stroke(mm)120
Maximum flow(L/min)114(160)
Maximum pressure(Mpa)35
Maximum pressure(kw)90
Inlet diameter(mm)50
Outlet diameter(mm)25
Dimensions(mm)2490x1196x915
Weight(kg)2200
Cement MixerModelNJ-1200
Maximum capacity (L)1450
Available capacity(L)1200
Stiring speed(r/min)610
Power(kw)11
Dimensions(mm)1520x1650x1610
Weight (kg)750


Compensation Grout Application in construction :
1. Strengthing road bed
2.Subsidence filling
3.Lansilide control
4.Diaphragm wall of dam reinforce
5.Underpining to relevel overlying stractrure.
6.Drilling hole rapidly in mining inceidents for rescuing.


Geological Disaster Compensation Grouting Multi Purpose Drill Rig 0

Geological Disaster Compensation Grouting Multi Purpose Drill Rig 1
Geological Disaster Compensation Grouting Multi Purpose Drill Rig 2
Geological Disaster Compensation Grouting Multi Purpose Drill Rig 3
