Horizontal Directional Construction Drilling Rig Borehole Drilling Rig Cralwer
1set
MOQ
negotiable
Price
Horizontal Directional Construction Drilling Rig Borehole Drilling Rig Cralwer
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Xitan equipment
Certification: CE;ISO9001:2015
Model Number: GM-5S
High Light:

Horizontal Directional Construction Drilling Rig

,

Cralwer Borehole Drilling Rig

,

Cralwer borehole drilling machine

Payment & Shipping Terms
Packaging Details: Nude Package in 40HP Container
Delivery Time: 90-180days
Payment Terms: T/T
Supply Ability: 100set Per Year
Specifications
Product Name:: Anchor Drilling Rig
Type:: Anchor Drilling
Condition:: New
Power Type:: Electric
Core Components:: Drill Rig
Dimension(L*W*H):: 5450x2300x2250(mm)
Drill Hore Diameter (mm): 50-250mm
Drill Depth (m):: 100-120m
Drilling Angle:: 0-90°
Applicable Industries:: Construction Works,slope Surporting
Casting: Anchor Cable;Jet Grouting
Product Description

Horizontal Directional Borehole Drillling Rig Cralwer Constrcution Egineering



Product description of Borehole Constrcution Drilling Rig :

GM-5S borehole Constrcution  Drillling Rig is a fully hydraulic crawler type.

Application of GM-5S Dia 250mm Engineering Drilling Rig

1,Urban deep foundation pit support, soil nail wall support, railway and road slope support.

2,Anti-floating anchor rod, thin underground continuous wall and anti-seepage wall in foundation treatment.

3,Pipe shed grouting and water stop grouting in tunnel engineering.

4,Construction of rock blasting holes for roads, mines, hydropower dams, etc.

5,Foundation reinforcement of various industrial and civil buildings such as railways, highways, bridges, roadbeds and dam foundations, water-blocking and sealing works, soft foundation treatment and geological disaster management.

6,Engineering application of bolt drilling, down-the-hole drilling, casing drilling and drill pipe casing composite drilling.

7,Single-tube and double-tube construction for general rotary jet engineering

Product parameters:

Drilling diameter ¢50-250mm
Drilling depth 100-120 M
Drill rod diameter (mm) ¢50 ¢73 ¢76 ¢89
Drill tower inclination angle

downward tilt: 0-90°

upward tilt: 0-7°

Power head output speed 15-150 (r/min)
Maximum torque of power head 6800 (N·m)
Power head stroke 3200 (mm)
Bracket to feed stroke 900 (mm)
Horizontal lifting height

Highest: 3500mm

Lowest: 1800mm

Rated lifting force of power head 50KN
Input power 55KW+18.5KW+2.2KW
Dimension(Transportation) L:5450xW:2300xH:2250 (mm)
Weight 7000kg

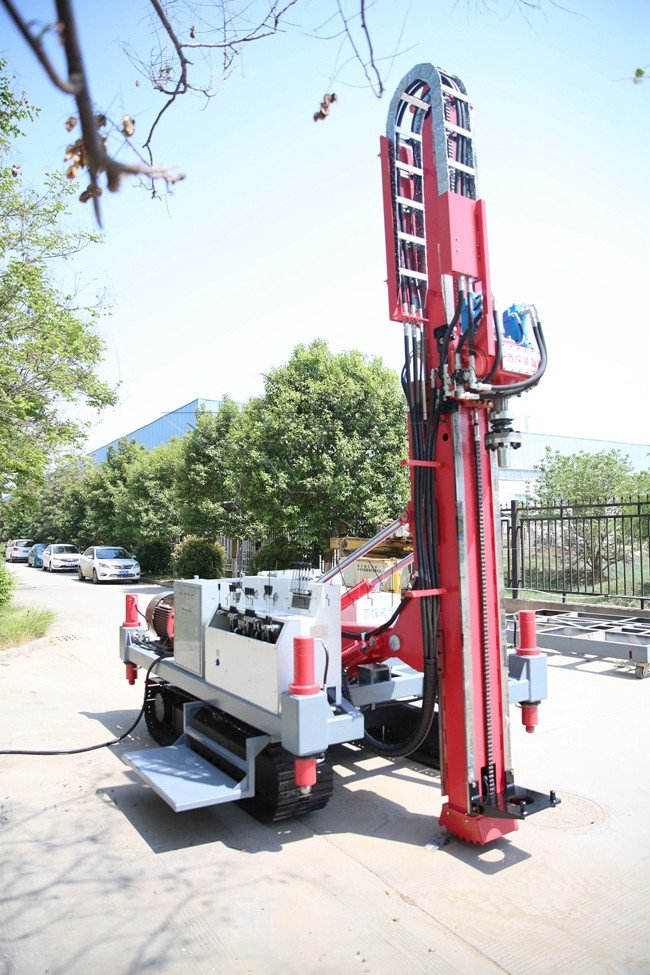

Horizontal Directional Construction Drilling Rig Borehole Drilling Rig Cralwer 0

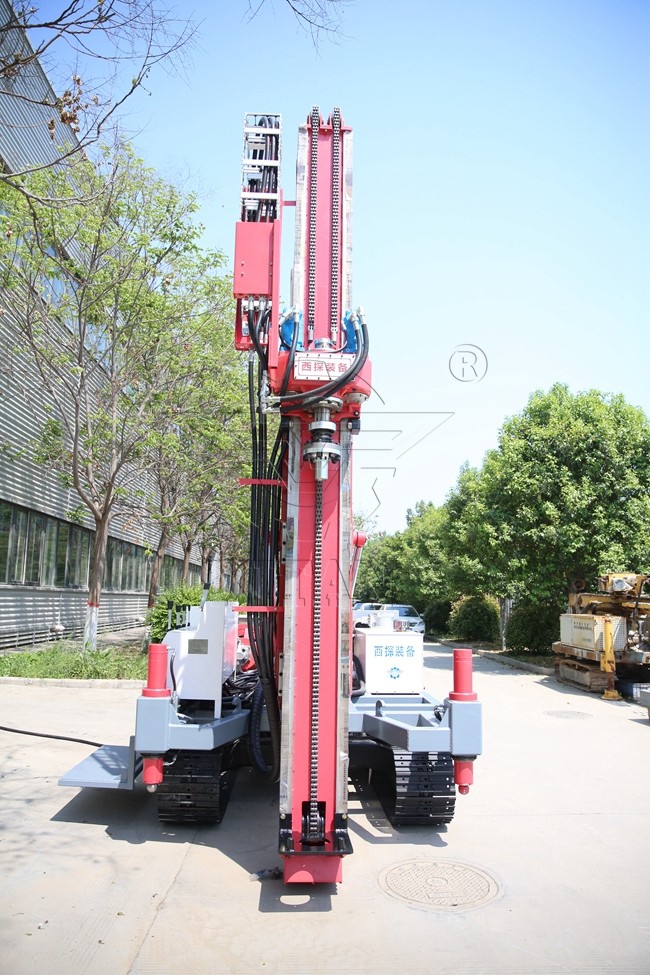

Horizontal Directional Construction Drilling Rig Borehole Drilling Rig Cralwer 1
Horizontal Directional Construction Drilling Rig Borehole Drilling Rig Cralwer 2
