Pneumatic DTH Hard Rock Engineering Construction Drilling Rig Hard Ground
1set
MOQ
Negotiable
Price
Pneumatic DTH Hard Rock Engineering Construction Drilling Rig Hard Ground
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Xi Tan Equipment
Certification: CE;ISO9001:2015
Model Number: GL-6000S
High Light:

Pneumatic Construction Drilling Rig

,

DTH Construction Drilling Rig

,

Hard Rock Engineering Drilling Rig

Payment & Shipping Terms
Packaging Details: container
Delivery Time: 90-180days
Payment Terms: T/T, Western Union
Supply Ability: 200set/year
Specifications
Product Name:: Jet Grouting Rig
Type:: Crawler,Rotary,Jet Grouting
Condition: New
Power Type: Electric
Dimension(L*W*H): 5.6m×2m×2.93m
Drill Diameter (mm): 110-400mm
Drill Depth (m):: 50-200m
Drilling Angle:: 360
Applicable Industries:: Construction Works,ground Improvement
Pile Diameter: 110-400mm
Supplier: Manufacture
Voltage:: As Requirement
Product Description

Pneumatic DTH Hard Rock Engineering Construction Drilling Rigs Hard Ground

GL-6000S Engineering/construction Drilling Rig is multifunction drilling equipment as undergroud drilling rig,which can reach horizontal directional drilling.



Multifunction performance:

1. Tungstan carbide bits drilling,rotation drilling, auger drilling, pneumatic DTH hammer drilling, following-up casing drilling,

2. extensional functions such as  rotary jeting grouting, swivel jet grouting or fixed jet grouting

3. Anchorage

4. DTH drilling

5. Cement grout Injection for conceret pile



Application:

This engineering driller can be applied in tunnels Pipe shed support, rock and soil anchoring, blasting holes, embankment and dam reinforcement, drilliing hole for geothermmal energy , hydrological wells, foundation pile construction and geological disaster treament and other engineering fields.



Parameter

Drilling depth 50~200m
Drilling diameter Φ110~Φ400mm
Drill rod specifications Φ60~Φ89×2500mm
Power head speed

Low-speed power head

Low:8~55r/min

High:16~110r/min

High-speed power head:

Low 8~275r/min

High :16~550r/min

Power head torque 6000Nm~3000Nm
Power head stroke 3000mm
Feed force 58kN
Maximum pulling force 110kN
Column sliding stroke 1200mm
Arm Swing angle 0°~90°
Arm pitch angle Elevation :35° Depression:16°
Height of horizontal hole Max:3450mm Min:338mm
Walking speed 1.5km/h
Power Electric motor 55kW Diasel engine 56kW
Dimensions 5.6m×2m×2.93m
Weight 9500kg



Note: The user can choose diesel engine power, electric motor power,or diesel engine power/motor dual power.

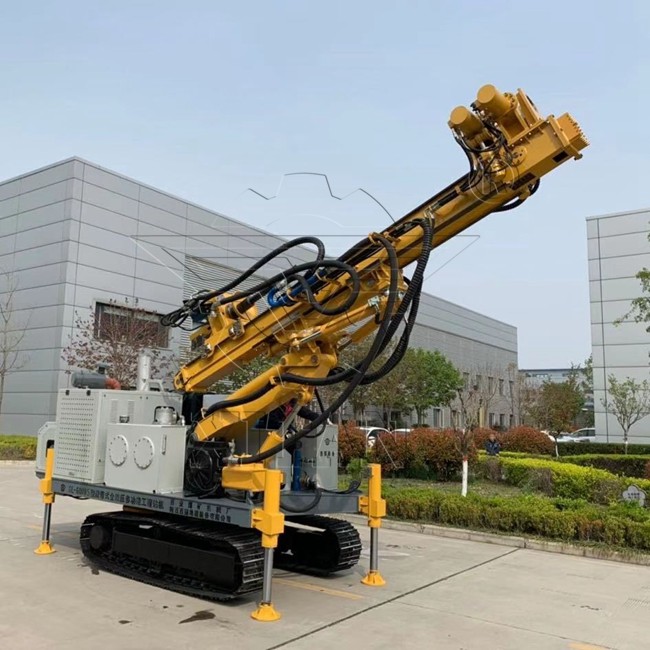

Pneumatic DTH Hard Rock Engineering Construction Drilling Rig Hard Ground 0

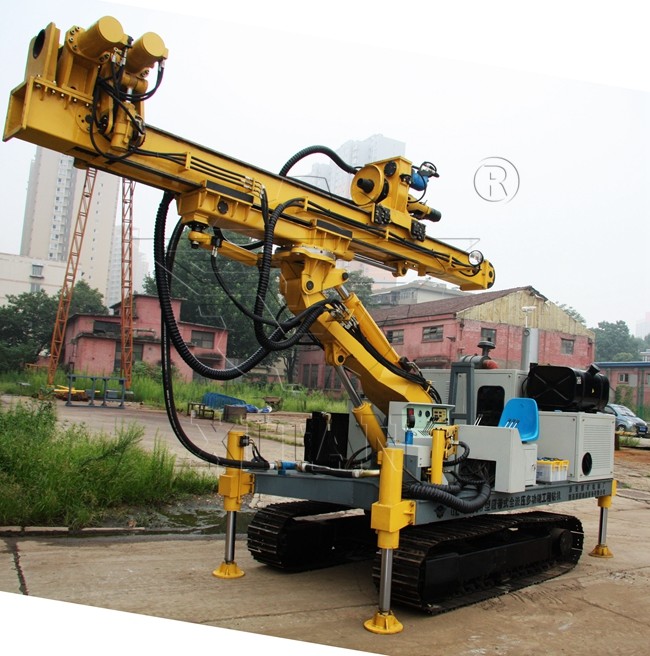

Pneumatic DTH Hard Rock Engineering Construction Drilling Rig Hard Ground 1
