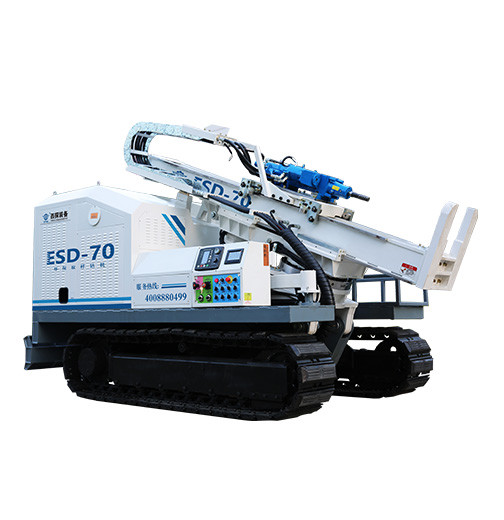

Sampling Machine Soil Drilling Rig Straight Push Or Rotary Drilling
Product Description:
1. Direct soil sampling;
2. Groundwater sampling;
3. Soil restoration and treatment;
4. Groundwater restoration and treatment;
5. Soil treatment through high-pressure rotary spraying;
Applicable Construction:
Geological investigation& survey
Soil sampling and treatment
Groundwater sampling and treatment
Construction prospecting
Environmental protection
Technical Data:
| Mode | ESD-70 | |
| Sampling Depth | 30m | |
| Sampling Diameter | 110mm(the depth of sampling will be reduced) | |
| Power Head Impact Frequency | ≥3,000 Hz | |
| Impact Power Head | ||
| Torque | 950 N·m | |
| Rotation Speed | 200rpm | |
| Impact Frequency | 3120/3990/4800 Hz | |
| Impact Power | 14.5 KW | |
| Lifting Power | 12t | |
| Rotary Power Head | ||
| Torque | 4000/8000 N·m | |
| Rotation Speed | 92/46 rpm | |
| Feeding System | ||
| Stroke | 1700mm | |
| Feeding Force | 100kN | |
| Lifting Force | 160kN | |
| Power System | ||
| Power | 75 kw/2500 rpm | |
| Engine Model | Dongfeng Cummins QSB3.9-C100-31 | |
| Size | Transmission 4000X1800X2900 mm | |
| Working 4130X1900X3160 mm | ||
| Weight | 7t | |
