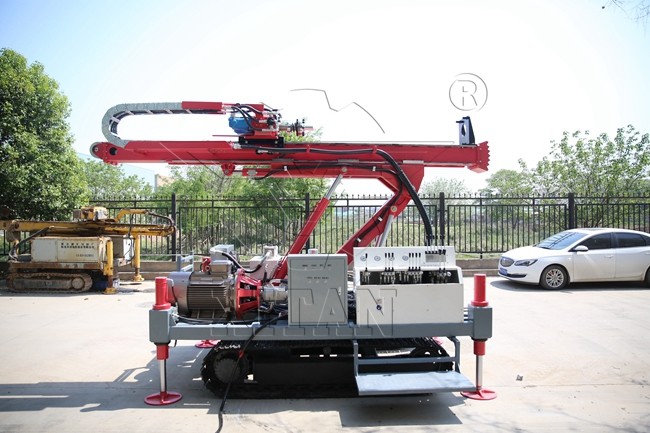

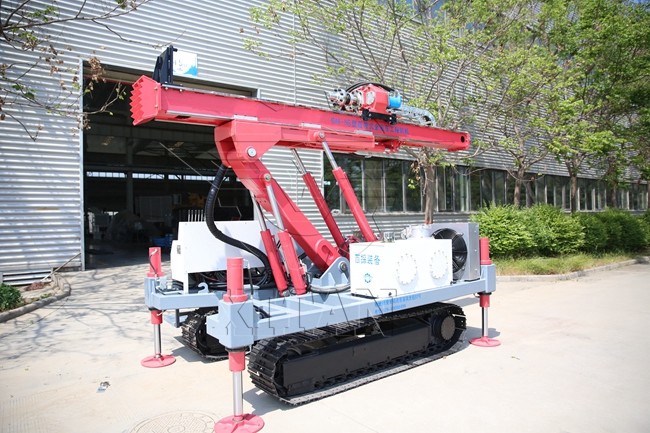

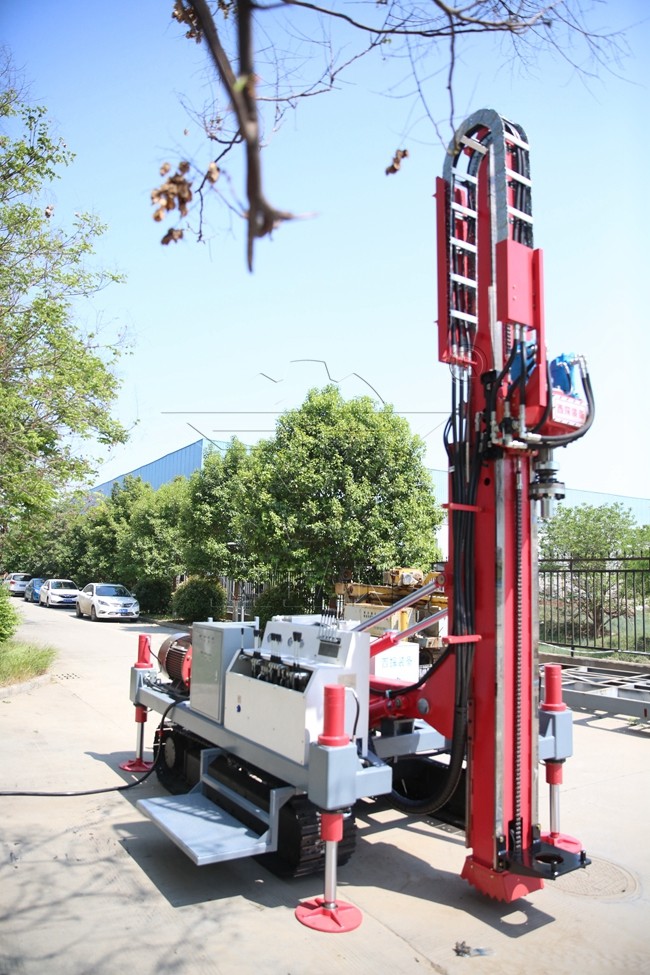

GM-5S Hydraulic Crawler Lifting Type Soil-Slope Strengthing Anchor Drill Rig
GM-5S horizontal lift multifunctional anchor drill rig is a fully hydraulic crawler type that integrates deep foundation pit slope anchoring, rotary jet grouting and dewatering, which can meet the requirements of various construction techniques. This is an engineering drilling rig developed by our company after long-term market research and customer exchanges, aiming at anchor supportingredients under complex deep foundation construction conditions, mainly for deep foundation slope supporting technology and jet grouting technique as the auxiliary. It has the characteristics of good mobility, wide range of operating holes, high efficiency, good drilling quality and low pollution.
1. Simple structure, convenient maintenance and low consumption.
2. The maximum horizontal lifting height is 3.5 meters and the minimum is 1.8 meters. double-row anchor cables drill in one go.
3. Optional power, effectively reducing power consumption and waste.
4. Simple overall structure, reasonable layout and easy operation.
5. Optioanl crane-mounted funtion,reduce the labor intensity, save cost.
1. Three-wing drill bit drilling, mud slag discharging, suitable for high-speed drilling in soil layer and other layers.
2. Small diameter twist drilling for soil layer (≧200mm).
3. Pneumatic DTH hammer drill, air slag discharge. Suitable for construction of rock formations and broken layers.
4. Casing drilling.
5. Composite drilling of casing and drill pipe.
6. Single, double, triple rotary jet grouting and directional jet grouting.
|Drilling depth||100-120 M|
|Drill rod diameter (mm)||￠50 ￠73 ￠76 ￠89|
|Drill tower inclination angle||
downward tilt: 0-90°
upward tilt: 0-7°
|Power head output speed||15-150 (r/min)|
|Maximum torque of power head||6800 (N·m)|
|Power head stroke||3200 (mm)|
|Bracket to feed stroke||900 (mm)|
|Horizontal lifting height||
|Rated lifting force of power head||50KN|
