XITAN CE 110kw Pre Grouting Ground Drilling Equipment
1set
MOQ
Negotiation
Price
XITAN CE 110kw Pre Grouting Ground Drilling Equipment
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: XITAN EQUIPMENT
Certification: CE;ISO9001:2015
Model Number: XPS-15
High Light:

Pre Grouting Ground Drilling Equipment

,

110kw Ground Drilling Equipment

,

XITAN CE Jet Grouting Rig

Payment & Shipping Terms
Packaging Details: Container+Wooden Case
Delivery Time: 90-180days
Payment Terms: T/T
Supply Ability: 200/Pieces/Year
Specifications
Product Name:: Jet Grouting Rig
Drilling Depth:: 0-75m
Pile Diameter: 0.6-0.8m
Drilling Way: Rotary Drilling
X Type: Crawler
Power Type: Electric Motor
Applicable Industries:: Construction Works,Tunneling
Condition:: New
Product Description

XPS-15 Hyadrualic 110kw Motor Tunnel Pre Grouting Ground Drilling Rig



This is a full hydraulic rotary type anchor engineering drill, used for city foundation pit support, building displacement and geological disaster control engineering construction.
1. Full hydraulic control, easy and flexible operation, easy to shift.
2. With large output torque to improve the stability of drilling.
3. Equipped with special follow pipe drilling tool, high drilling efficiency, good hole quality.
4. The drilling machine is mainly suitable for anchoring and supporting deep foundation pit, and can also be used for rotary spraying construction.
5. It can meet the requirements of three-wing drill bit drilling, air hammer drilling, casing drilling, drill pipe/casing compound drilling, single/double/triple rotary jet, fixed jet, swing jet and other rotary jet construction.

6. Equipped with a foldable arm work trolley, manned space, operate the orifice expediently.

7. Equipped with a centralizer to reduce the swing of the drill rod during drilling, and the drilling is stable and reliable.

8. Jet grouting tools: 76 single-tube jet grouting, 89 double-tube jet grouting drill pipe accessories.

9. If equipped with different drilling tools, it can perform anchor rod, down-the-hole, rock drilling and others.

10. Paired with XTB series high pressure grouting pump with large dynamic rate and large flow and ZDJ-1 automatic mixer .



Main Specifications

Model XPS-15
Power head speed (r/min) 1st Gear 2nd Gear 3rdGear 4thGear
0~30 30~65 65~138 138~269
Mast pitch angle 15°
Mast swing angle -5°~5°
Arm rotation angle -120°~120°
Feed stroke 14m
Maximum torque 17000Nm(rotation power)
Maximum feed force 75KN
Max wich pulling force 75KN
Maximum lifting height 8.8m
Maximum turning radius 4.7m/2.7m
Power

110KW Electromotor

(Equiped with 183Kw DEUTZ desiel generator)

Transport size 13500*2800*3430 mm
Weight 50Ton



Features:

1. Operating system: equipped with a wireless remote control operator, which can remotely control. The master operational console is equipped with a display that can show drilling depth, mast angle, rotation speed, feed and return speed, hydraulic system pressure, etc.

2. Walking system: steel track, with a width of 2800mm, a chain plate width of 600mm, and a driving speed of 1-1.4Km/h. The walking is driven by a hydraulic motor, which is suitable for construction under complex ground condition .

3. Electrical control system: adopts PLC centralized control, with fault alarm and other functions, safe and reliable.

4. Hydraulic system: using hydraulic components from world-renowned brands such as REXROTH, brevini, EATON, and advanced technologies such as load-sensitive control system, electro-hydraulic proportional control, etc., making the operation simple, efficient, and reliable.

5.Power system: 110KW electric motor can be started by 183KW DEUTZ diesel generator or powered by 380 AC

6. Structural parts: Frame slewing mechanism, dual-arm supporting and mast are integrated into the compact structure. Dual-arm supporting is two-grade lifting, stable supporting, avoiding drift during deep hole operation. The first grade with a turning machanism can rotary ±120°. It can achieve multi-hole operation in the same working plane for improving work efficiency. The mast is composed of three sections, both ends are foldable for easy transportation.The power head has four-grade speed change, wide speed range, and large torque. (Optional hydraulic impact power head)

The stroke of the power head is 14m, and the length of the drill rod is 15m. It can drill a hole and jet grouted pile in one go.Feeding and pulling back by hoist; the gripper supporting drill rods and shackles,the labor intensity is reduced. The front end of the rear gripper is equipped with a pull back cylinder. The stroke of it is 600mm and the pulling back force is 15.7 tons. When the drill is stuck, the winch can pull back forcely.

Introduction:

The XPS-15 horizontal jet grouting drilling rig is a special equipment for advanced pre-supporting when encountering aeolian sand and other weak layers during tunnel construction. Through the jet grouting technique, a closed waterproof and sand fixed jet-grouted pile curtain is formed before the tunnel excavation. The drilling rig can also be equipped with different drilling tools for slope disaster treament and bolting.

Construction application

1. Pipe roof support

2. Tunneling constrcurtion

3. Anchoring

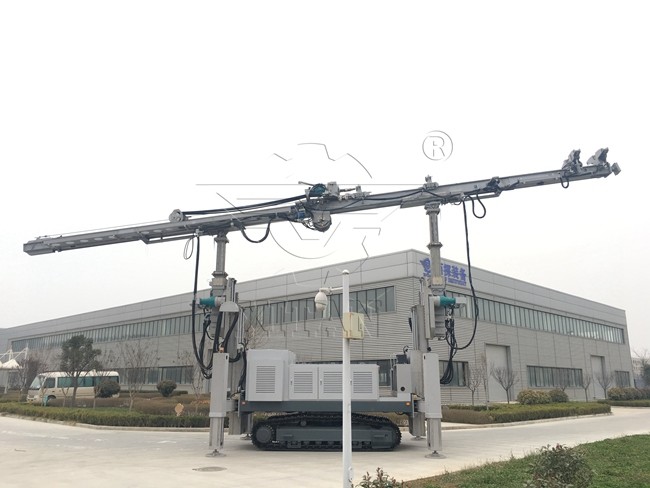

XITAN CE 110kw Pre Grouting Ground Drilling Equipment 0

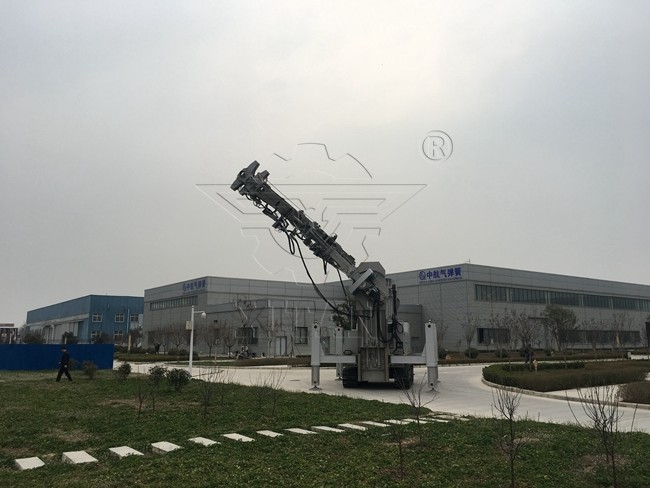

XITAN CE 110kw Pre Grouting Ground Drilling Equipment 1                                                                  XITAN CE 110kw Pre Grouting Ground Drilling Equipment 2

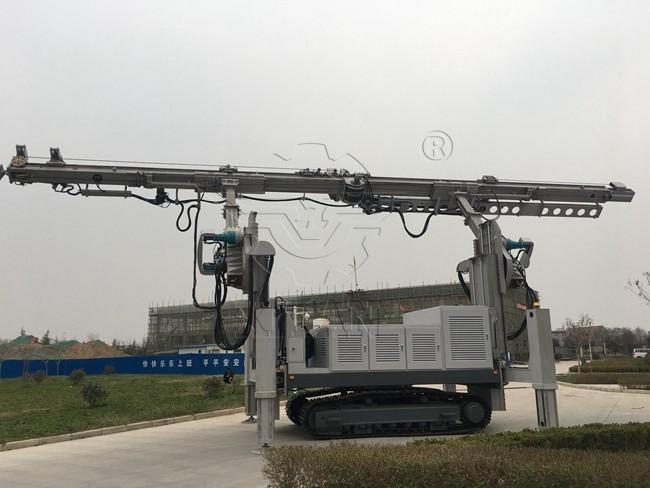

XITAN CE 110kw Pre Grouting Ground Drilling Equipment 3

XITAN CE 110kw Pre Grouting Ground Drilling Equipment 4
