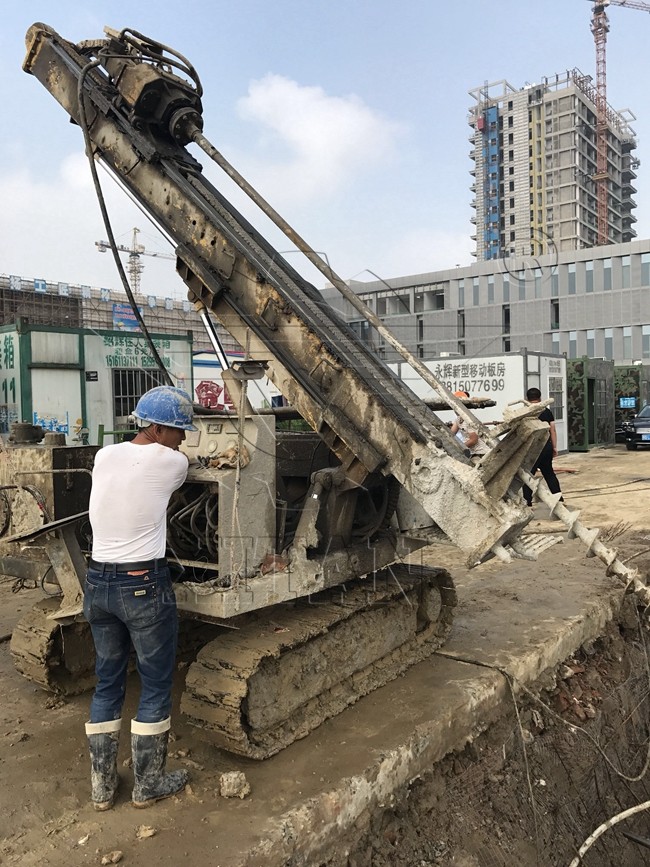

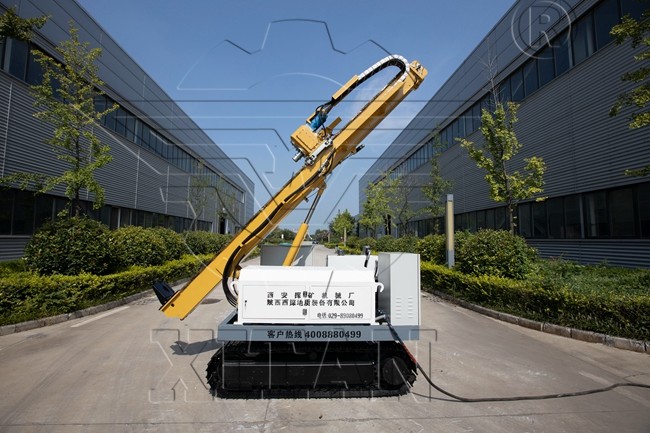

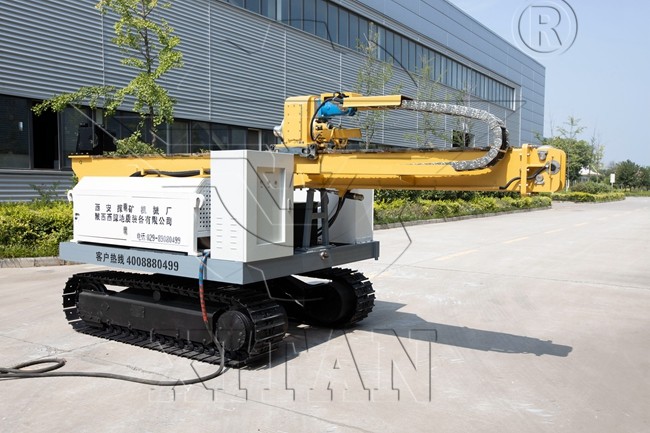

XL-50C crawler jet grouting drill rig
XL-50C crawler jet grouting drill rig is mainly adapted for reinforcement foundation construction of railways, highways, bridges, dam , various industria buildingsl and civil buildings.anchoring for Pit foundation support; If it’s matched with air compressors and pneumatic down-the-hole hammers can be used for drilling with following pipe. It can be not only used for general jet grouting (swing jetting, fixed jetting) engineering construction, but also for shallow hole drilling and engineering exploration drilling.
1. It adopts full hydraulic control, convenient and flexible operation, crawler type is convenient moving and quick walking and moving in place. power head is long stroke,Assisant time is shorten.
2.High efficiency and Low energy consumption. Direct-acting load feedback and fine-tuning hydraulic system, power changes with the loading.
3. The special valve with friction positioning is adopted for the gyrator, and meets the requirements of jet grouting process.
4. The power head has a wide variable speed range, which can meet the requirements of various formations and different drilling techniques.
5. Equipped with a slewing bearing, the hole position can be transferred to the side of the crawler when needed.
6. Compact structure for centralized operation, it’s convenient and safe.
7. Equipped with display devices for vertical drilling tower, power head rotation and lifting speed.
Supporting drilling tools
1. In single pipe drilling and jet grouting integrated construction , wchich is suitable for high-speed drilling in soil, sand and other formations.Only need to be matched with three-wing drill bit or in-line drill bit and Ф42 or Ф50 drill pipe;
2. In jet grouting and anchor construction, just equipped with 65 locking anchor rod thruster and anchor rope drill pipe, it can be suitable for reinforcement by anchor cable.
3. Single-tube, double-tube, triple-tube rotary spray, swing spray, fixed spray and other techniques
|Drill rod diameter||φ42mm φ50mm φ73mm|
|Inclination of drilling hole||left and right:± 3° forward:10°backward:90°|
|Power head speed||
|Power head Rated lifting force||30kN|
|Power head allowable pressure||12kN|
|Power head lifting/pressurizing speed||Fine-tuning jet grouting speed:0.06～0.9/1.8 m/min|
|Fast lifting of power head||0～22/0～28 m/min|
|Power head stroke||3500mm|
