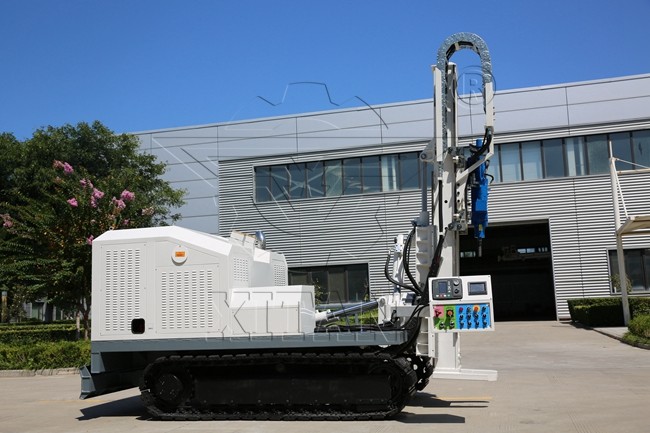

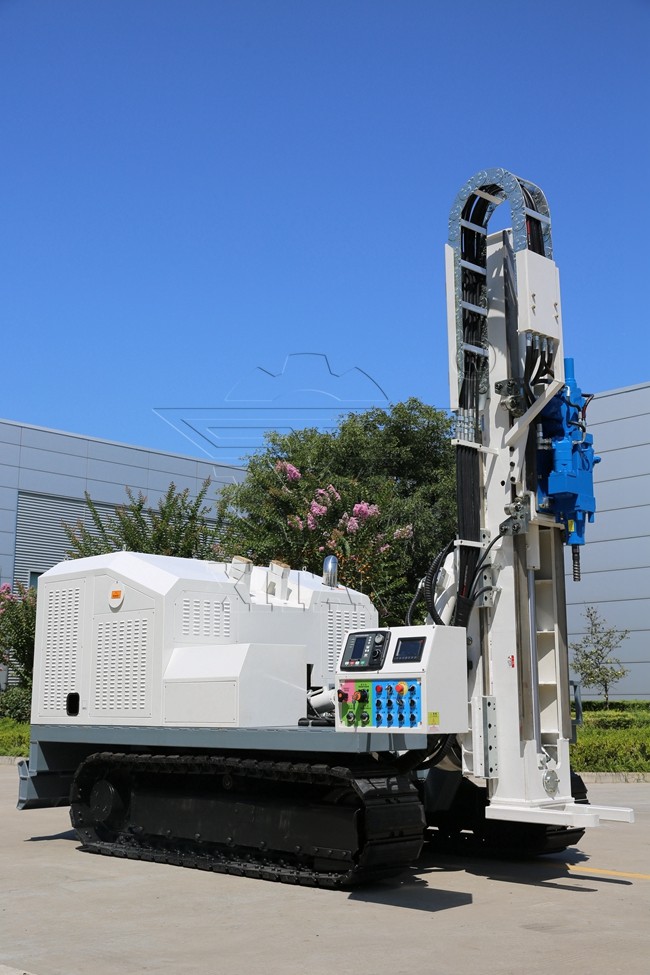

30M Depth Soil Drilling Rig SPT Machine Diesel Engine ESD-70
This environmental drill rig is soil Sampling, pollution sampling, and treatment in one. It is a new type of soil sampling rig. It is a full hydraulic drilling rig specially used in the field of environmental protection. The drilling rig uses a single impact power head, which is easy to operate and cost-effective. The device has many functions,such as direct push type undisturbed soil sampling,direct push for undergroud sampling and Injetion to soil and Contaminant treatment for pollution control. This environmental drill rig has thrust effectively, without water, drilling with a sampling tube,and multifunction equipment :Sampling and polution treatment.
Technical Data:
| Mode | ESD-70 | |
| Sampling Depth | 30m | |
| Sampling Diameter | 110mm(the depth of sampling will be reduced) | |
| Power Head Impact Frequency | ≥3,000 Hz | |
| Impact Power Head | ||
| Torque | 950 N·m | |
| Rotation Speed | 200rpm | |
| Impact Frequency | 3120/3990/4800 Hz | |
| Impact Power | 14.5 KW | |
| Lifting Power | 12t | |
| Rotary Power Head | ||
| Torque | 4000/8000 N·m | |
| Rotation Speed | 92/46 rpm | |
| Feeding System | ||
| Stroke | 1700mm | |
| Feeding Force | 100kN | |
| Lifting Force | 160kN | |
| Power System | ||
| Power | 75 kw/2500 rpm | |
| Engine Model | Dongfeng Cummins QSB3.9-C100-31 | |
| Size | Transmission 4000X1800X2900 mm | |
| Working 4130X1900X3160 mm | ||
| Weight | 7t | |
