GM-5B Hydraulic Crawler Engineering Anchor Drilling Rig
1set
MOQ
negotiable
Price
GM-5B Hydraulic Crawler Engineering Anchor Drilling Rig
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: XITAN EQUIPMENT
Certification: CE;ISO9001:2015
Model Number: GM-5B
High Light:

50 Meter hydraulic crawler drilling machine

,

3.4m Hydraulic Crawler Drilling Machine

,

Anchor Rod crawler drilling rig

Payment & Shipping Terms
Packaging Details: Nude Package in 40HP Container
Delivery Time: 30-90days
Payment Terms: T/T
Supply Ability: 100set Per Year
Specifications
Product Name:: Anchor Drilling Rig
Type:: Drilling
Condition:: New
Power Type:: Electric
Core Components:: Drill Rig
Dimension(L*W*H):: (working Mm)3750×2450×5450
Drill Hore Diameter (mm): 65-150mm
Drill Depth (m):: 50-70m
Drilling Angle:: 0-90°
Gyrator Stroke (mm): 3.4m
Applicable Industries:: Construction Works,slope Renforcr
Casting: Anchor Cable;Anchor Rob;Soil Nail
Product Description

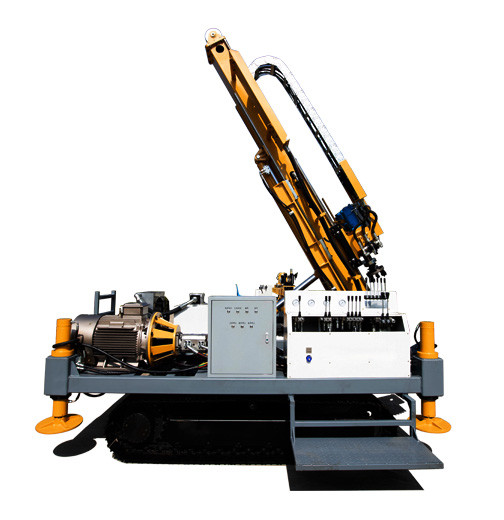

GM-5B Hydraulic Crawler Engineering Anchor Drilling Rig 01

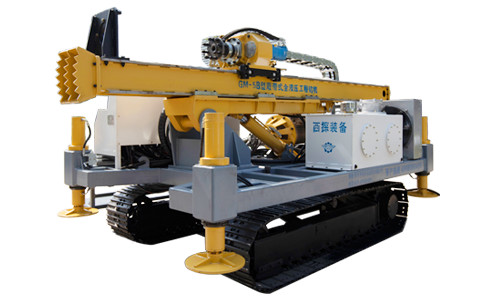

GM-5B Hydraulic Crawler Engineering Anchor Drilling Rig 0

Application

1,Urban deep foundation pit support, soil nail wall support, railway and road slope support.

2,Anti-floating anchor rod, thin underground continuous wall and anti-seepage wall in foundation treatment.

3,Pipe shed grouting and water stop grouting in tunnel engineering.

4,Construction of rock blasting holes for roads, mines, hydropower dams, etc.

5,Foundation reinforcement of various industrial and civil buildings such as railways, highways, bridges, roadbeds and dam foundations, water-blocking and sealing works, soft foundation treatment and geological disaster management.

6,Engineering application of bolt drilling, down-the-hole drilling, casing drilling and drill pipe casing composite drilling.

7,Single-tube and double-tube construction for general rotary jet engineering



Main feature

1, Adopt full hydraulic power head transmission, infinitely variable speed, high drilling efficiency, low labor intensity.

2, The hydraulic system of drilling rig is stable and reliable with long service life.

3, The power head adopts hydraulic variable-speed mode with high and low grades, which can meet the requirements of various formations and different drilling techniques.

4. The drill has the function of crawler walking by itself, and the equipment can be moved easily and quickly.

5. Equipped with a slewing mechanism, the hole can be manually transferred to the side of the track when needed.

6, Compact structure, centralized operation, convenient and safe.

7.The column can be stretched back and forth to meet the bolt construction requirements.

8,Optional clamping device reduces labor intensity and operation time of loading and unloading drill pipe.

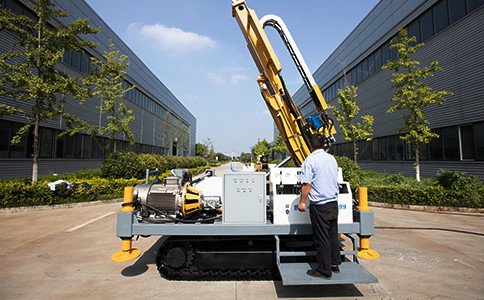

GM-5B Hydraulic Crawler Engineering Anchor Drilling Rig 1

GM-5B Hydraulic Crawler Engineering Anchor Drilling Rig 2

GM-5B Hydraulic Crawler Engineering Anchor Drilling Rig 3

GM-5B Hydraulic Crawler Engineering Anchor Drilling Rig 4

Technical Parameter



Maximum torque 6500 N.m
Rotate speed 0-150 r/min
Power head maximum stroke 3400 mm
Power head rated lifting force 60 kN
Power head plus pressure 30 kN
Drill rod diameter Ф50 mm,Ф7 3mm,Ф89 mm
Drilling angle 0°~ 90°
Lifting /plus pressure speed Speed adjustment of rotary jet
0~0.75/1.5m/min
Power head rapid lifting 0~13.3 /0~26.2 m/min
Engine power 55+18.5+2.2 kW
Column stretch 900 mm
Climbing ability 20°
Travel speed 0.8km/h
Dimension (working mm)3750×2450×5450
(transporting mm)5450×2300×2250
Weight 6500 kg
