XY-44 1400m Coring Minning Engineering Drilling Rig
XY-44 1400m Coring Minning Engineering Drilling Rig
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: Xitan equipment
Certification: CE;ISO9001:2015
Model Number: XY-44B
High Light:

1400m Geotechnical Drill Rig


50mm Rob Geotechnical Drill rig


2200kg Soil Investigation Drilling Equipment

Payment & Shipping Terms
Packaging Details: Nude Package in 20GP Container
Delivery Time: 30-90days
Payment Terms: T/T
Supply Ability: 100set Per Year
Condition: New
Drill Hole Diameter: As Specification
Drill Hole Depth: As Specification
Bit Type: Diamond
Voltage: 380V
After-Sales Service Provided: Engineers Available To Service Machinery Overseas
Product Description

XY-44B 1400m Coring Minning Engineering Drilling Rig


Construction application of Coring Minning Engineering Drilling Rig

XY-44B core drilling rig adopts the rotary drilling push to push the drilling pipes into the soil, with water or cement grout injection, it can continuously and quickly take out the columnar soil and rock core samples at a specific depth without external interference.


Application of Coring Engineering Drilling Rig XY-44B

Geological exploration

Foundation inspection

Environmental survey

Engineering investigation

Hydrological wells drilling

Shallow oil or gas drilling

Geothermal drilling

Large-diameter cement pile for foundation construction.


Rob Dia. Φ42mm Φ50mm Φ60mm Φ89mm
Drilling depth 1400m 1300m 950m 800m


Spindle rotary speed

Low speed forward 82r/min;151r/min;243r/min;320r/min
High speed forward 265r/min;466r/min;745r/min;983r/min
Reverse speed 46r/min;143r/min
Drilling angle 0―360°
Spindle hole diameter 93mm
Maximum torque of spindle 4200N.m
Spindle stroke 600mm
Spindle lifting capacity 120kN
Spindle maximum pressure 90kN
Rated pressure of hydraulic system 8MPa
Maximum lifting force of single rope of winch 45kN
Drilling rig movement stroke 460mm
Electric motor Y225S-4,37kW
diesel engine R4105ZD1,52kW
Dimensions (length × width × height)) 3200mm×1100mm×1950mm
Drilling rig weight (not including power machine) 2200kg

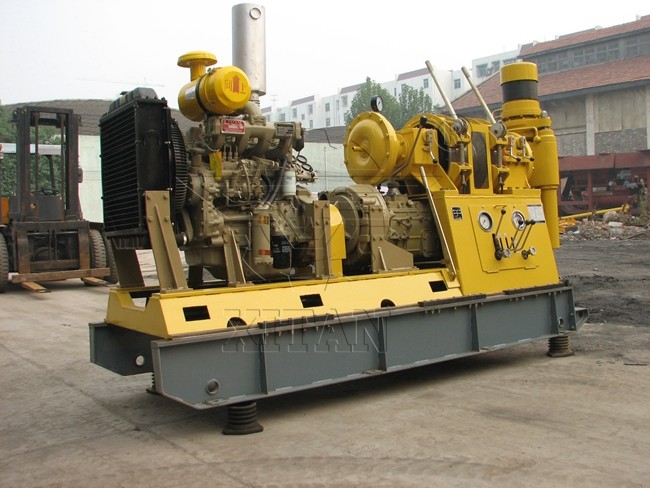

XY-44 1400m Coring Minning Engineering Drilling Rig 0

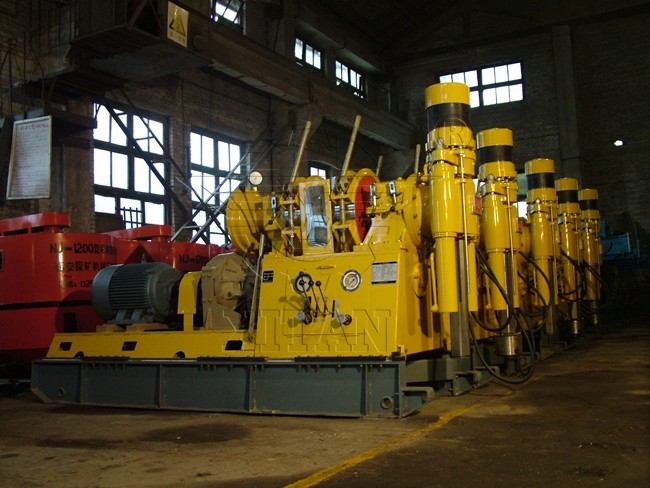

XY-44 1400m Coring Minning Engineering Drilling Rig 1

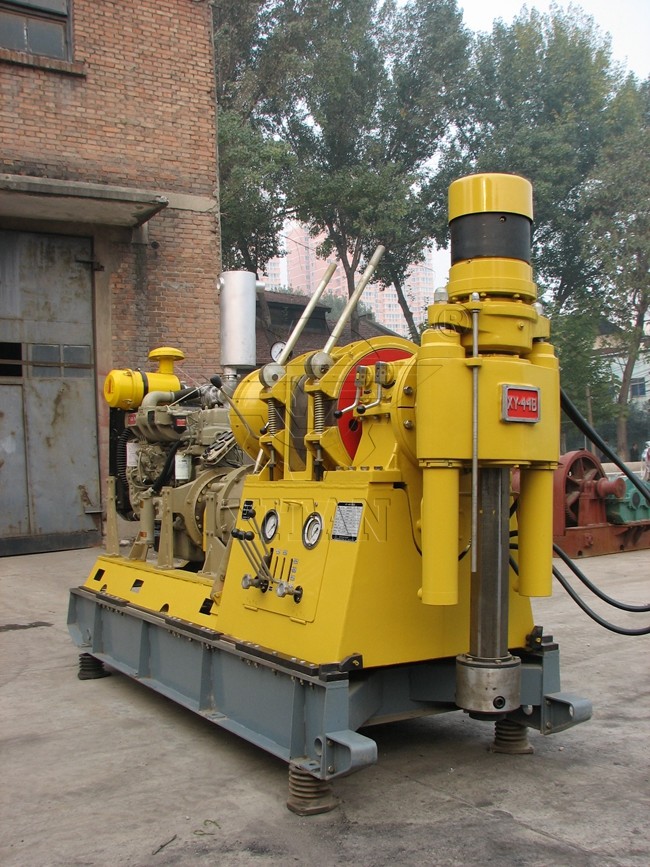

XY-44 1400m Coring Minning Engineering Drilling Rig 2
