Introduction:
The horizontal jet grouting drilling rig is a special and customized equipment for advanced pre-supporting when encountering aeolian sand and other weak layers during tunnel construction. Through the jet grouting technique, a closed waterproof and sand-fixed jet-grouted pile curtain are formed before the tunnel excavation. The XPS-15 drilling rig can also be equipped with different drilling tools for slope disaster treatment and bolting.

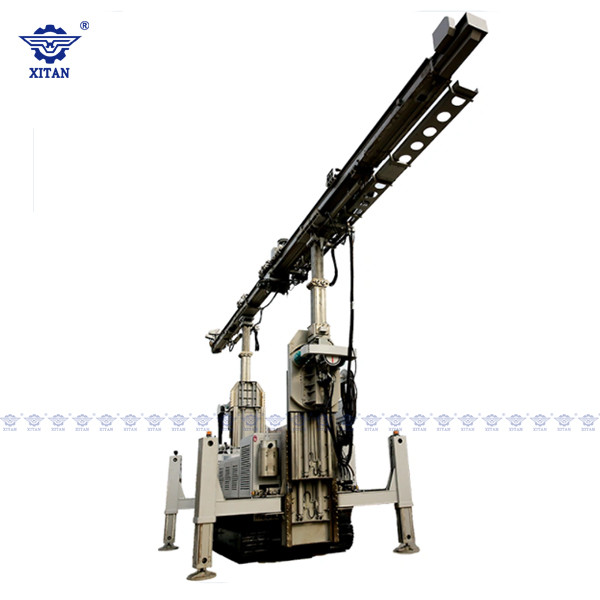

Our product XPS-15 horizontal jet grouting drilling rig is designed and manufactured by ourselves.
Technical Data:
| Mode | XPS-15 | |||
|
Rotation Speed of Power Head (r/min 0) |
First gear | Second gear | Third gear | Fourth gear |
| 0～30 | 30～65 | 65～138 | 138～269 | |

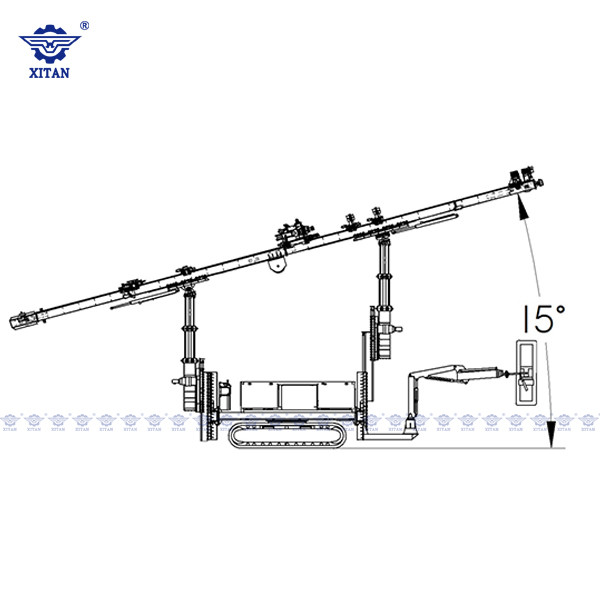

| Mast Pitch Angle (°) | 15 | |||
| Mast Swing Angle (°) | -5～5 | |||

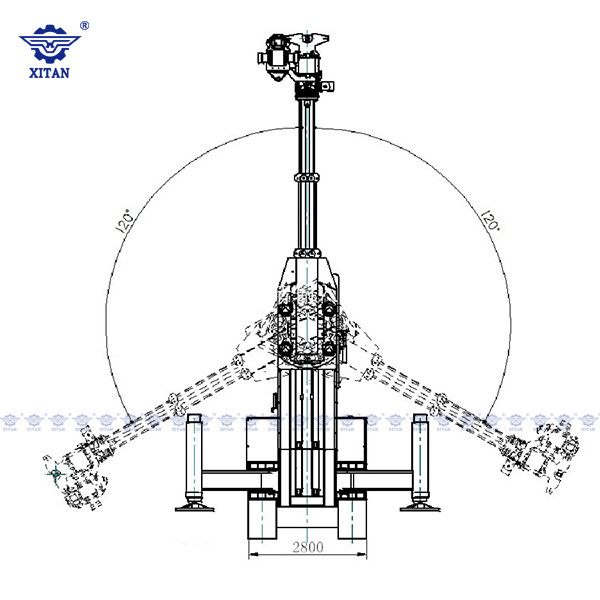

| Upper Arm Rotation Angle (°) | -120～120 | |||
| Stroke (m) | 14 | |||
| Torque (Nm) | Max 17000(Rotary power head) | |||
| Max. Winch Feed Force (KN) | 75 | |||
| Max. Winch Drag Force (KN) | 75 | |||
| Working Height (m) | Max 8.8 | |||
| Rotation Radius (m) | Max 4.7/Min 2.7 | |||
| Motor | 110KW electric motors(equipped with 183Kw DEUTZ diesel generator set) | |||
| Size (mm) | 13500×2800×3430 | |||
| Weight (T) | 50 | |||
Customized drilling rig services:
| Designs | 1. As per the customer's drawings |
| 2. As per the customer's samples | |
| Surface treatment | 1. Polish |
| 2. Painting | |
| Service | OEM service available |
| OEM Products | PUMPS |
| All kinds of drilling rigs | |
| Special drilling tools | |
| Advantage | 1. With 60 years of production experience in drilling rigs and support equipment manufacture. |
| 2. Near Tianjin Port and Air Port;(Convenient Transportation) | |
| 3. We provide OEM machining services for grouting pumps | |
| 4. We have an advanced processing line and a professional mechanical engineer team | |
| 5 We believe: in on-time, stable quality, just price, and client confidentiality. | |
| 6. With samples and order: We can offer dimension reports and material certification. | |
| Inspection: | 1. Dimension report |
| 2. Material certification | |
| Packing: | Export carton and fumigation wooden pall |
| OEM and ODM: | Accepted and professional. Buyer's drawings or designs are available |
| Material test report: | is available upon request when placing an order. |
