CE Triple Tube Hydraulic Percussion Cement Grouting Drill Rig
CE Triple Tube Hydraulic Percussion Cement Grouting Drill Rig
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: XiTan Equipment
Certification: CE; ISO9001:2015
Model Number: GY-60 (GY-80)
High Light:

CE Cement Grouting Drill Rig


800Nm Cement Grouting Drill Rig


triple tube hydraulic drill rig

Payment & Shipping Terms
Packaging Details: Container
Delivery Time: 7-120 days
Payment Terms: T/T
Supply Ability: 200 set/year
Product Name: Anchor Drilling Rig
Type: Anchor Drilling
Condition: New
Power Type: Electric/Diesel
Core Components: Drill Rig
Dimension(L*W*H): ( Transportation) 5450×2300×2250 Mm
Drilling Diameter (mm): Ф42 Mm; Ф50 Mm; Ф73 Mm; Ф89 Mm
Drilling Angle:: 0-90°
Applicable Industries: Construction Works, Slope Supporting
Drilling Technique: Anchor Cable; Jet Grouting; Casing; Roof Bolt
Product Description

CE Triple Tube Hydraulic Percussion Cement Grouting Drill Rig


Feature of Anchor Drill Rig :

1. Carried out with PDC bits, it can be rotary drilling in rock layers.

2. In the rock layer, the special crown button drill bit, can be drilling holes at high speed.

3. On pebble layers, matching with following pipe drilling tools, it meets casing drill.

4. Equipped with a hydraulic impact system, it can meet the foundation construction work such as impacting and breaking rock and hole formation, fluid discharge, underground micro-pile, drilling for roof bolt or anchor cable, geological prospecting, and geothermal hole formation, and slope supporting.

5. After changing the power head, it has a rotary jet grouting function (swing jet grouting, fixed jet grouting), which can also carry out advanced pipe-shed supporting and geologic forecasting in the tunneling.

6. Do rob drilling, casing drilling, casing, and rob drilling. When rotary jet grouting, it can be applied for single-tube, double-tube, triple-tube jet grouting, and others.

7. It adopts a full hydraulic power head drive, infinitely variable speeds, high drilling efficiency, and low labor intensity.

8. It benefits parts reduced, reliable quality, and easy maintenance that the power head adopts hydraulic variable speed mode with high and low gears, which can meet the requirements of various formations and different drilling techniques. The hydraulic rear top hammer impact function is added, and the impact and rotation function is integrated as well.

Not only can the drilling rig quickly drill into the general rock formation, but also drill into the gravel layer and cobblestone layer.

Anti-drive device: When the drilling rig is stuck during drilling, the drill pipe can be quickly taken out by the anti-drive device hitting.

Frequency adjustment: There is a manual frequency adjustment device on the cylinder of the hydraulic impact drill, which can be adjusted under different geological conditions.

9. Direct-acting load feedback and fine-tuning variable hydraulic system, power changes with load, high efficiency, low energy consumption.

10. The main components of the drilling rig hydraulic system adopt from well-known brands, the system is stable and long service life.

11. The drilling rig has a crawler self-propelled function for convenient and quick moving.

12. Equipped with a rotation, the hole position can be transferred to the side of the crawler when necessary.

13. Compact structure, centralized operation, convenient and safe.


Short Introduction:

GY-60 (GY-80) crawler type full hydraulic engineering anchor drill rig is used for embankment reinforcement of industrial construction such as railways, highways, bridges, roadbeds, dam foundations, etc., and foundation strengthening of civil buildings such as water-proof and leak-proofing works, soft foundation treatment, and geological disasters control and the anchorage against the building displacement.


Technical Data:

Mode GY-60/80
Motor (55+30)kW
Weight 7.9t
Size Working(mm) 3750×2450×5450
Transmission(mm) 5450×2300×2250
Speed 1.5km/h
Climbing Capacity 20°
Diameter Pile
Max Diameter Max 2m
Max Depth 200m
Power Head
Feeding Stroke 3.4m
Rotation Speed 0~92rpm (GY-60)
Lifting Power 50kN
Torque 11500 N.m,16680 N.m(GY-80)
Diameter Ф42mm Ф50mm Ф73mm Ф89mm
Inclination 0°~90°
Expansion 900mm
Hydraulic System
Pressure Main Pump 20MPa
Sub-pump 20MPa
Sub-pump 20MPa

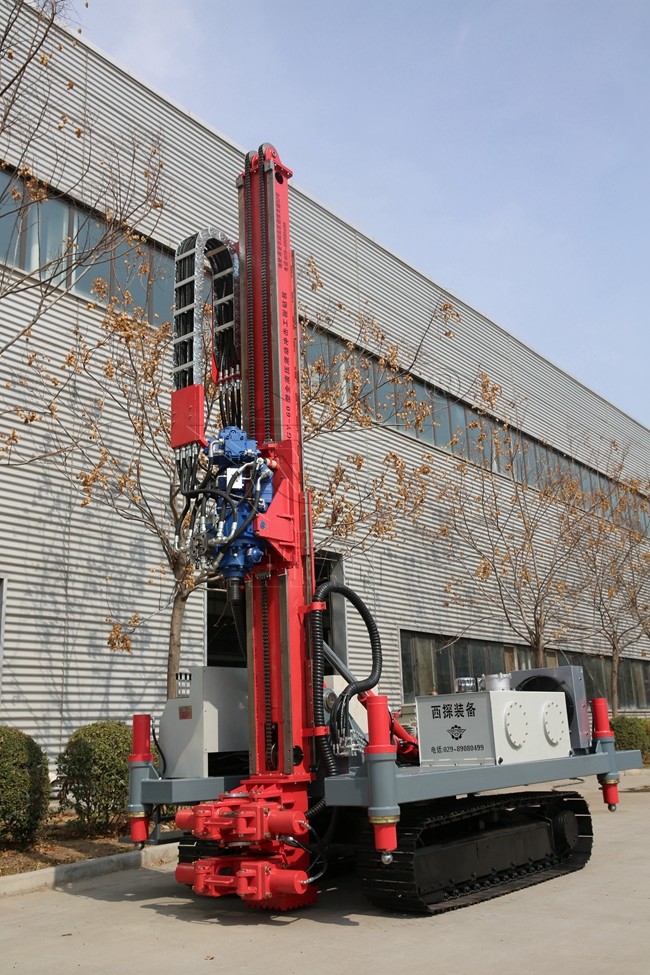

CE Triple Tube Hydraulic Percussion Cement Grouting Drill Rig 0

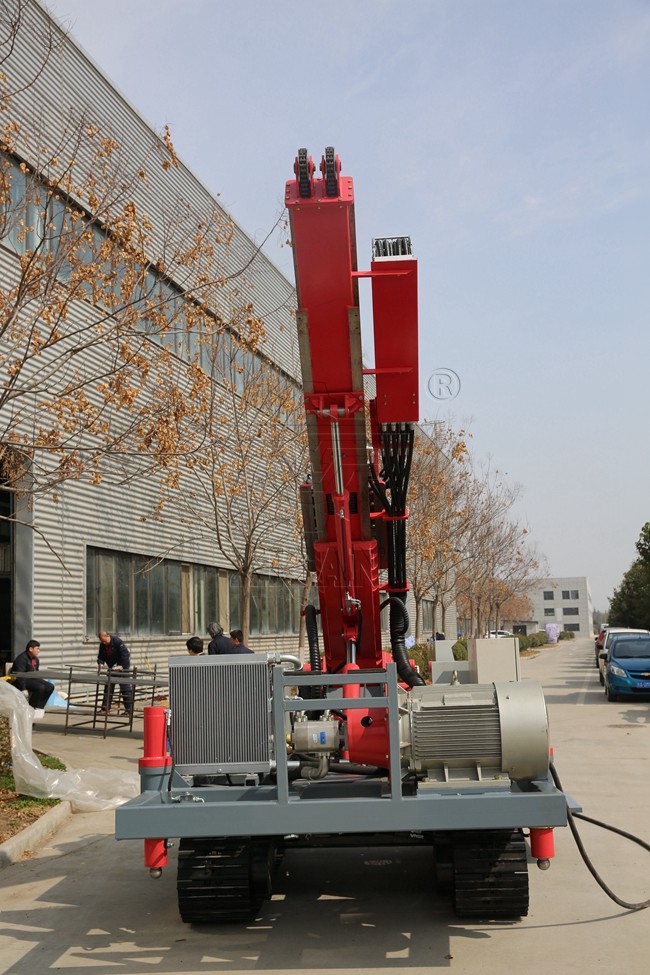

CE Triple Tube Hydraulic Percussion Cement Grouting Drill Rig 1

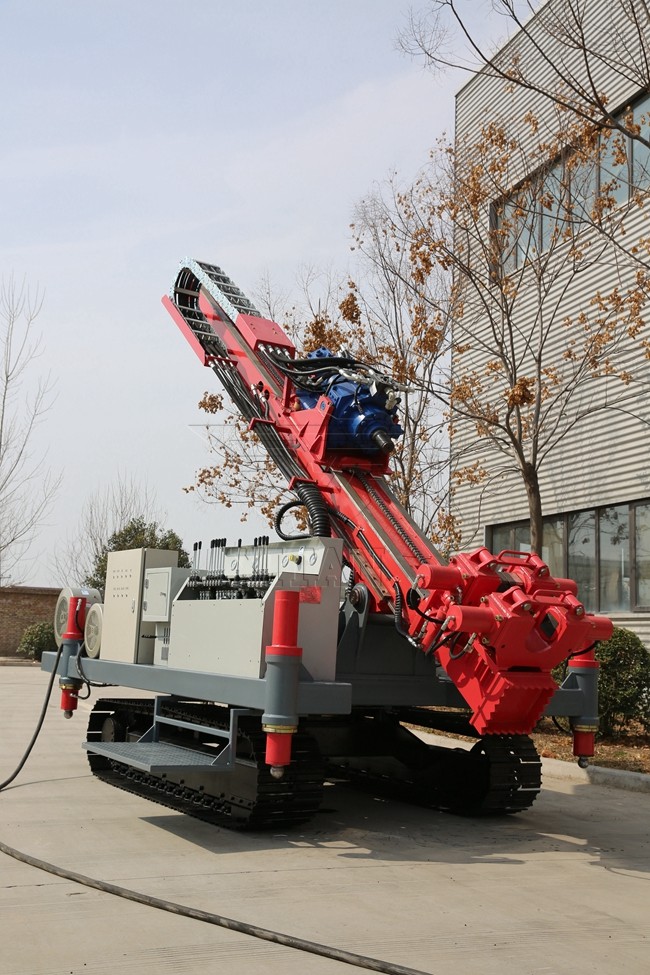

CE Triple Tube Hydraulic Percussion Cement Grouting Drill Rig 2
