Casing 89mm 1.5m/Min Anchor Drilling Rig For Bridges Railways
Application:
They are full hydraulic anchoring machines, it is used for supporting and protecting basic/medium pits, ensuring displacement of buildings, and avoiding geological hazard. It can move fast with the crawler, automatically disassemble rods and casing, reducing labour works and improving efficiency.
Short Introduction:

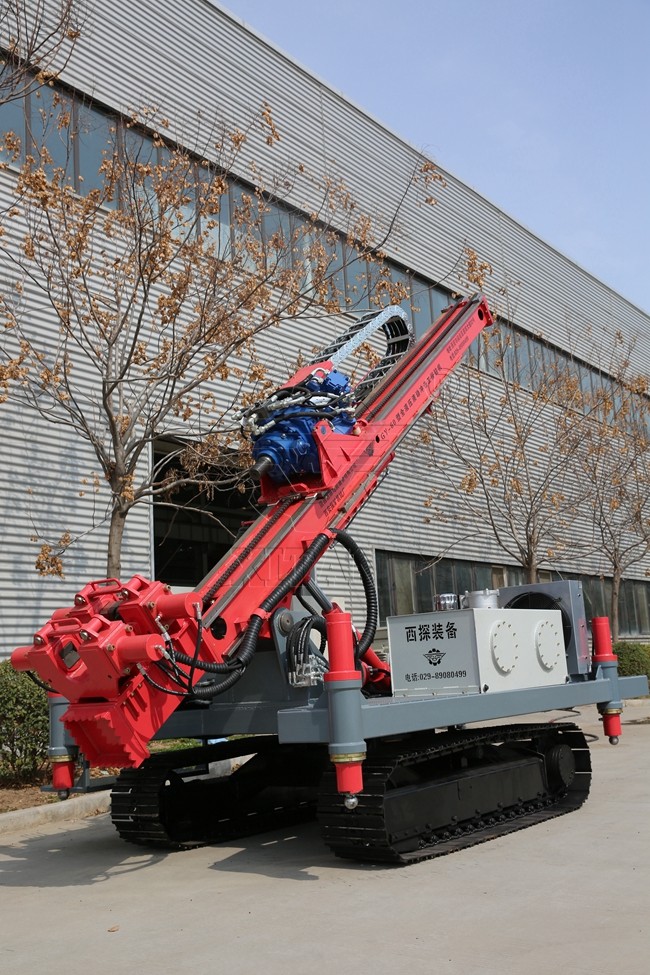

GY-60(80) crawler type full hydraulic engineering anchor drill rig is used for embankment reinforcement of industrial construction such as railways, highways, bridges, roadbeds, dam foundations, etc., and foundation strengthening of civil buildings such as water-proof and leak-proofing works, soft foundation treatment, and geological disasters control and the anchorage against the building displacement.
Carried out with PDC bits, it can be rotary drilling in rock layers.
In the rock layer, the special crown button drill bit can be drilling holes at high speed.
On pebble layers, matching with following pipe drilling tools, it meets casing drill.

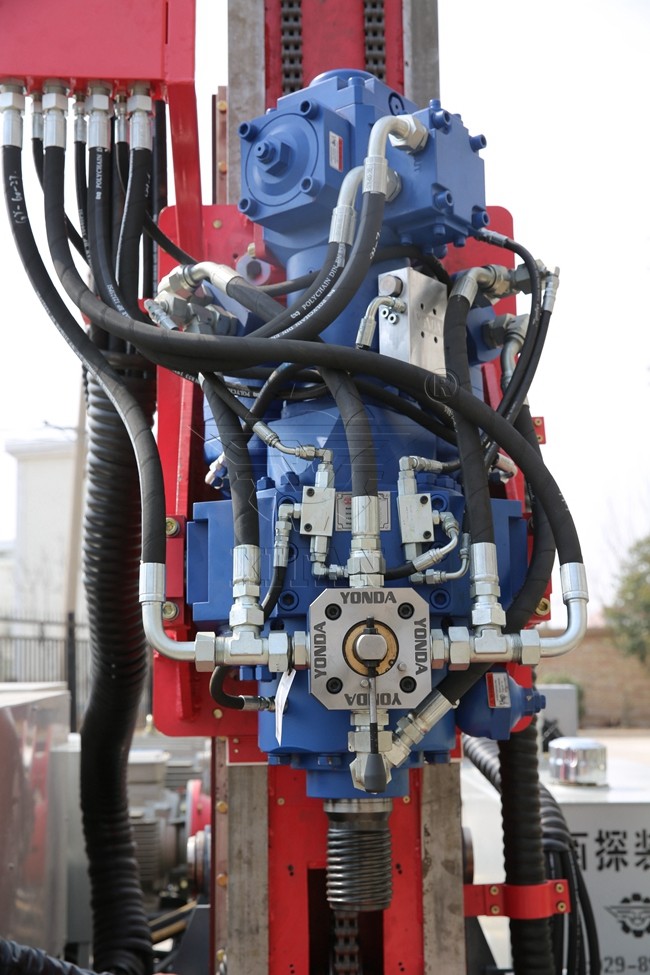

Equipped with a hydraulic impact system, it can meet the foundation construction work such as impacting and breaking rock and hole formation, fluid discharge, underground micro-pile, drilling for roof bolt or anchor cable, geological prospecting, geothermal hole formation, and slope supporting.

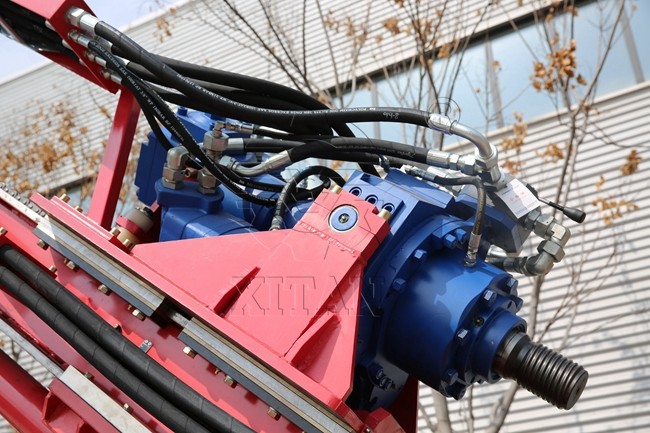

After changing the power head, it has a rotary jet grouting function (swing jet grouting, fixed jet grouting), which can also carry out advanced pipe-shed supporting and geologic forecasting in the tunneling.
Technical Data:
| Mode | GY-60/80 | ||||||
| Motor | (55+30)kW | ||||||
| Weight | 7.9t | ||||||
| Size | Working(mm) | 3750×2450×5450 | |||||
| Transmission(mm) | 5450×2300×2250 | ||||||
| Speed | 1.5km/h | ||||||
| Climbing Capacity | 20° | ||||||
| Diameter Pile | |||||||
| Max Diameter | Max 2m | ||||||
| Max Depth | 200m | ||||||
| Power Head | |||||||
| Feeding Stroke | 3.4m | ||||||
| Rotation Speed | 0～92rpm (GY-60) | ||||||
| 0～64rpm(GY-80) | |||||||
| Lifting Power | 50kN | ||||||
| Torque | 11500 N.m,16680 N.m(GY-80) | ||||||
| Borehole | |||||||
| Diameter | Ф42mm | Ф50mm | Ф73mm | Ф89mm | |||
| Inclination | 0°～90° | ||||||
| Column | |||||||
| Expansion | 900mm | ||||||
| Hydraulic System | |||||||
| Pressure | Main Pump | 20MPa | |||||
| Sub-pump | 20MPa | ||||||
| Sub-pump | 20MPa | ||||||
