Electric 50mm Diameter 100m Depth Anchor Drilling Rig
Electric 50mm Diameter 100m Depth Anchor Drilling Rig
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: XiTan Equipment
Certification: CE; ISO9001:2015
Model Number: GM-5S
High Light:

100m Depth Anchor Drilling Rig


50mm Diameter Anchor Drilling Rig


55KW Electric Drilling Rig

Payment & Shipping Terms
Packaging Details: Container
Delivery Time: 7-120 days
Payment Terms: T/T
Supply Ability: 200 set/year
Product Name: Anchor Drilling Rig
Type: Anchor Drilling
Condition: New
Power Type: Electric/Diesel
Core Components: Drill Rig
Dimension(L*W*H): 5450x2300x2250(mm)
Drill Hole Diameter (mm): 50-250 Mm
Drill Depth (m): 100-120 M
Drilling Angle: 0-90°
Applicable Industries: Construction Works, Slope Supporting
Casting: Anchor Cable; Jet Grouting
Product Description

Electric 50mm Diameter 100m Depth Anchor Drilling Rig



1. Simple structure, convenient maintenance, and low consumption.

2. The maximum horizontal lifting height is 3.5 meters and the minimum is 1.8 meters. double-row anchor cables drill in one go.

3. Optional power, effectively reducing power consumption and waste.

4. Simple overall structure, reasonable layout, and easy operation.

5. Optional crane-mounted function, reduce the labor intensity, save cost.


Product Description:

GM-5S horizontal lift multifunctional anchor drill rig is a fully hydraulic crawler type that integrates deep foundation pit slope anchoring, rotary jet grouting, and dewatering, which can meet the requirements of various construction techniques. This is an engineering drilling rig developed by our company after long-term market research and customer exchanges, aiming at anchor support ingredients under complex deep foundation construction conditions, mainly for deep foundation slope supporting technology and jet grouting technique as the auxiliary. It has the characteristics of good mobility, a wide range of operating holes, high efficiency, good drilling quality, and low pollution.



Technical Data:

Mode GM-5S
Motor (55+11)kW
Weight 6.5t
Size Transportation(mm) 5000×2300×2000
Speed 1.5km/h
Diameter Pile
Max Diameter Max 2m
Max Depth 120m
Power Head
Feeding Stroke 3.4m
Rotation Speed Low 0-10(r/min) High 0-140(r/min)
Lifting Power 65kN
Torque 8000N.m
Diameter (Φ50-Φ250)mm
Depth (100-120)m
Drill Pipe Diameter Φ50mm,Φ73mm,Φ76mm,Φ89mm
Sliding Stroke 900mm
Pitch Angle of Column 90°~ -10°




1. Three-wing drill bit drilling, mud slag discharging, suitable for high-speed drilling in soil layer and other layers.

2. Small diameter twist drilling for soil layer (≧200mm).

3. Pneumatic DTH hammer drill, air slag discharge. Suitable for the construction of rock formations and broken layers.

4. Casing drilling.

5. Composite drilling of casing and drill pipe.

6. Single, double, and triple rotary jet grouting and directional jet grouting.

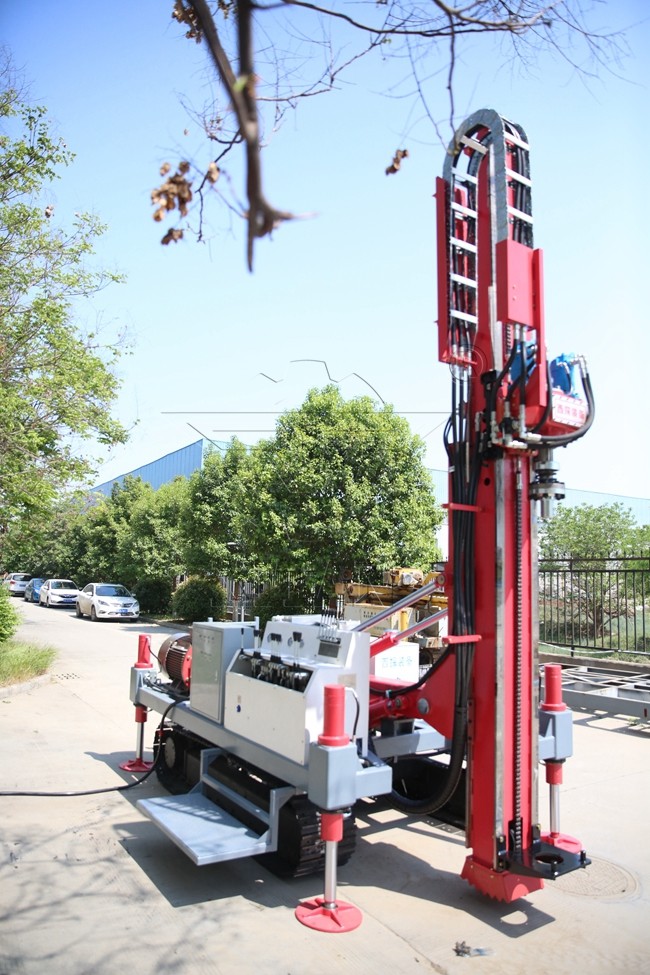

Electric 50mm Diameter 100m Depth Anchor Drilling Rig 0

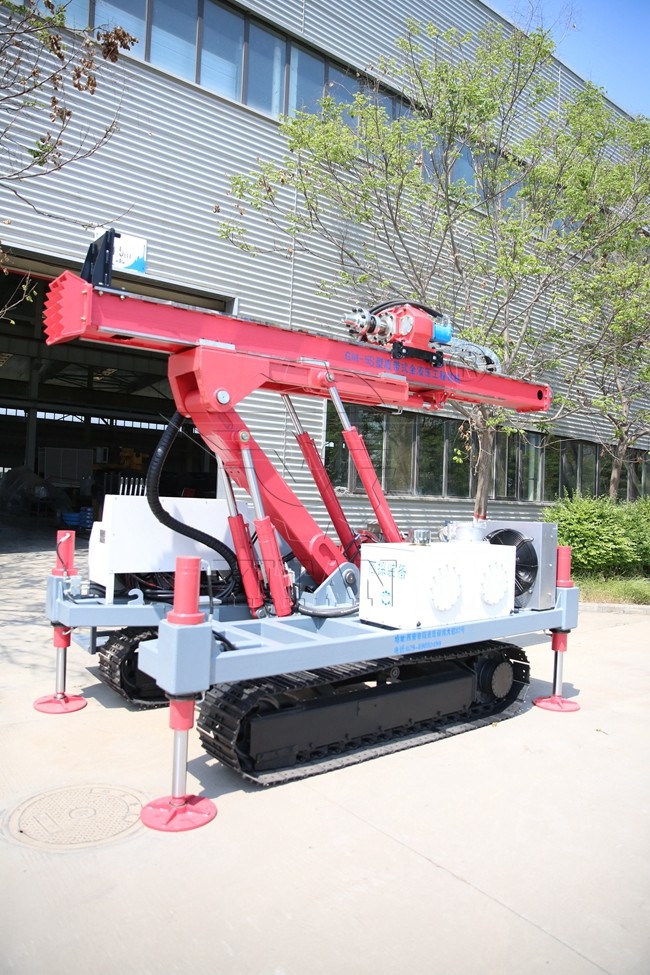

Electric 50mm Diameter 100m Depth Anchor Drilling Rig 1

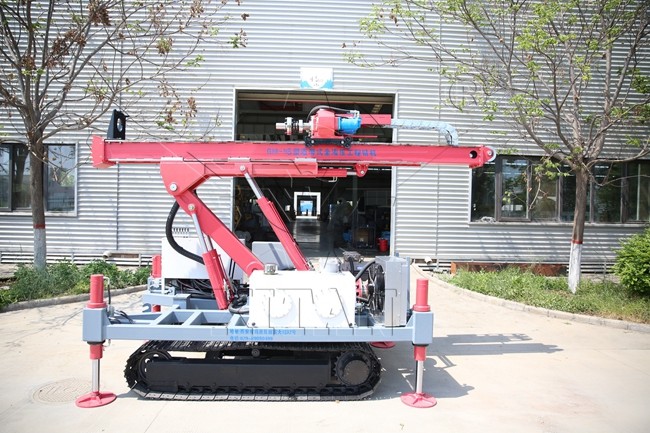

Electric 50mm Diameter 100m Depth Anchor Drilling Rig 2
