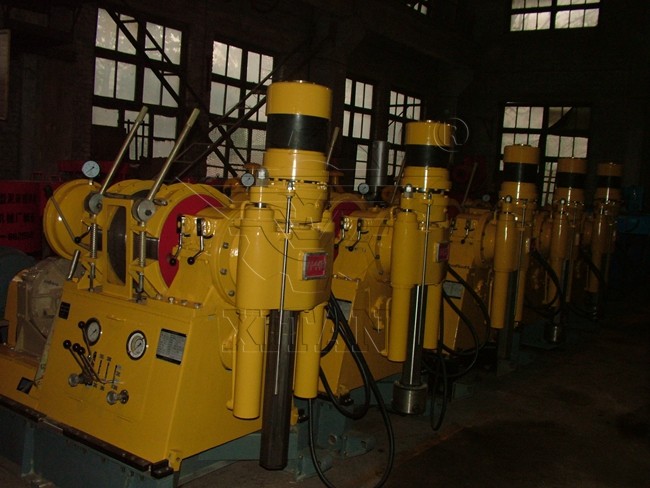

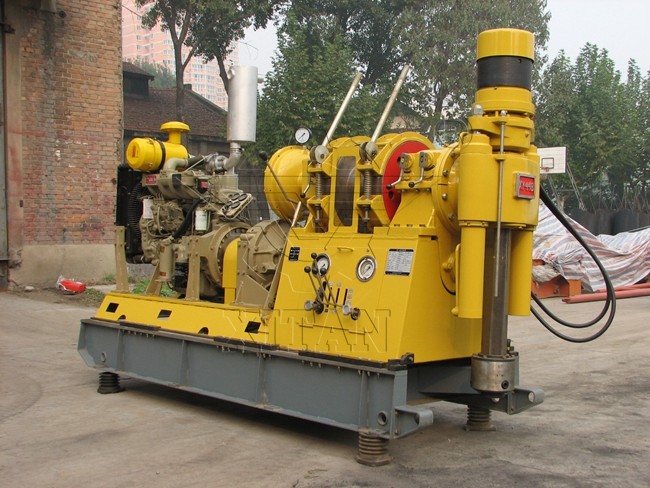

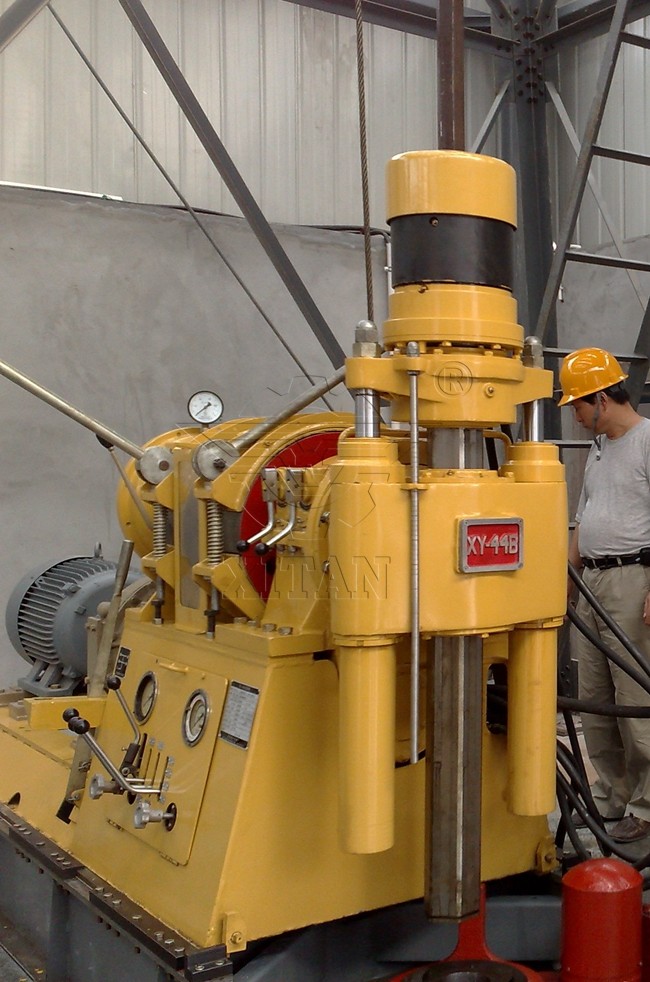

XY-44B Protable Geological Prospecting Borehole Well Diamond Core Drilling Rigs
XY-44B core drilling rig with a diamond bit and alloys bit is mainly used for core drilling. It is applied for different construction such as geological exploration, hydrological wells, shallow oil, gas, geothermal, and large-diameter cement pile for foundation construction.
1. Drilling rig with reasonable structure, lightweight, and large capacity, it has wide-range application, stable performance, high reliability, and a high degree of standardization.
2. Save the cost of accessories to choose a standard automobile gearbox clutch with reliable performance, and flexible operation. It has 8 levels of speed stages and a reasonable speed range and the torque is powerful under low speed (up to 4200N.m).
3. With double-cylinder hydraulic power feed for long stroke, and a large hole diameter (Φ93mm) of a vertical shaft, It’s especially suitable for large diameter drill rods in wireline coring drilling.
4. Having large drilling capacity, rated drilling depth of Φ71mm wireline coring drill rod is 1000m.
5. Lightweight, low center of gravity, compact structure, good detachability, reasonable structure, easy to maintain and repair, the host has detachable 10 parts (the maximum detachable part weight is 300kg), facilitates moving, especially suitable for mountainous areas, mining, and tunnel work.
6. The hydraulic chuck with strong holding force, adopts a two-way oil supply and is equipped with a hydraulic lock, which ensures stable clamping.
7. Equipped with the water brake system, under deep hole drilling, it is safe and stable.
8. The gear oil pump is used for oil supply, which has low power consumption and stable operation. The system is equipped with a hand-operated oil pump. When the power machine cannot work, the hand-operated oil pump can still be used to pull out the drill tool in the hole.
9. Long displacement distance (up to 460mm), firm fixation, and high-speed drilling stability.
10. Anti-vibration instruments with a long service life, which is beneficial to know the situation in the hole. Flexible and reliable operation.
11. High degree of common use, the common parts of this machine matching XY series drilling rig are more than 60%.
Supporting Drilling Tools:
1. Equipped with common geological drilling tools for geological exploration and core drilling.
2. It can be seamlessly connected with domestic and foreign drilling tools through adjustable joints.
Spindle rotary speed
|Low speed forward||82r/min;151r/min;243r/min;320r/min|
|High speed forward||265r/min;466r/min;745r/min;983r/min|
|Spindle hole diameter||93mm|
|Maximum torque of spindle||4200N.m|
|Spindle pulling foce||120kN|
|Spindle maximum pressure||90kN|
|Rated pressure of hydraulic system||8MPa|
|Maximum pulling force of single rope of winch||45kN|
|Drilling rig movement stroke||460mm|
|Dimensions (length × width × height))||3200mm×1100mm×1950mm|
|Drilling rig weight (not including power machine)||2200kg|
Shannxi Xitan Geological Equipment Co., Ltd was established in 1958 as a specialized drilling rig manufacturer for more than 60 years. High-pressure jet grouting rigs, multifunctional engineering drilling rigs, anchor drilling rigs, and environmental drill rigs are our featured products with advanced technology, and other grouting equipment such as grouting pumps, and auto grout mixing stations are low energy consumption, environmental protection, and cost-effective. We are a High-pressure Jet Grouting Engineering Technology Center and National High-tec Enterprise in ancient City-Xi'an. The factory area is 23,000 m2. 300 million yuan production capacity per year can be reached. 150 million yuan has been invested in production line building and technological innovation.
1. Are you the manufacturer?
Ans: Yes, we are a factory with more than 60years of manufacturing experience.
2. What are your terms of payment?
Ans: 50% deposit prepaid by T/T, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
3. How about your delivery time?
Ans: Except GY60/80 anchor drilling rig is not in stock, the common drilling rig has in stock, and could be delivered in one week after getting your full payment.
Customize drilling rig will take 15-45 days after receiving your advance payment. The specific delivery depends on the items and the quantity of your order.
4. What is the warranty of our machine?
Ans: Our main machine enjoys one year warranty. But unreasonable operation and wearing parts exclude.
5. Do you test all your goods before delivery?
Ans: Yes, we have 100% test before delivery. And we will attach our inspection report for every machine.
6. Do you have after-service?
Ans: Yes, we have a special after-sales service team that will supply you with professional guidance. And we provide videos for machine installation and operation.
If you need, we can send our engineers to your worksite and provide the training for your staff.
