Soil Drill Rig Sampling Machine Without Water Drilling for Testing ESD-70
■ Large torque rotation unit with maximum rotation unit torque up to 950 N.m for the pit.
bolting, casing, and large-diameter spiral drilling and improved torque for a large hole size range.
■ Standard equipped more reliable heavy-duty tramming motor and international standard construction machinery track for better sloping ability and stable quality.
This environmental drill rig is soil Sampling, pollution sampling, and treatment in one.
Introduction:

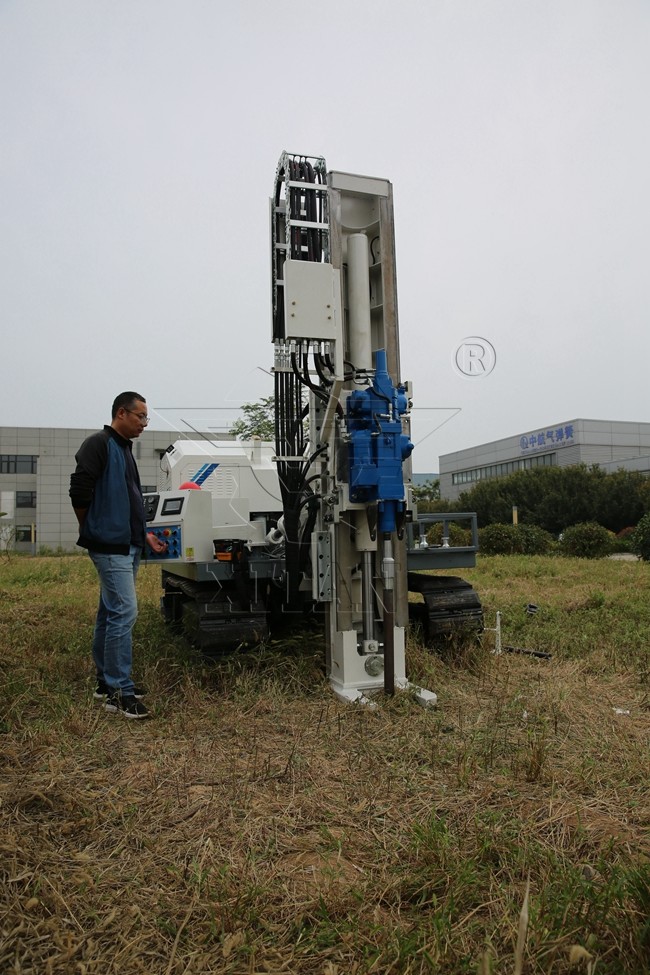

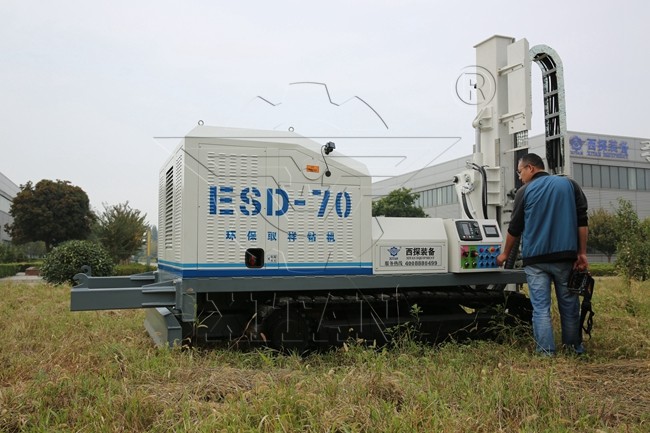

ESD-70 environmental sampling drilling rig is a new type of soil sampling rig. It is a full hydraulic drilling rig specially used in the field of environmental protection. The drilling rig uses a single impact power head, which is easy to operate and cost-effective.
Technical Data:
| Mode | ESD-70 | |
| Sampling Depth | 30m | |
| Sampling Diameter | 110mm(the depth of sampling will be reduced) | |
| Power Head Impact Frequency | ≥3,000 Hz | |
| Impact Power Head | ||
| Torque | 950 N·m | |
| Rotation Speed | 200rpm | |
| Impact Frequency | 3120/3990/4800 Hz | |
| Impact Power | 14.5 KW | |
| Lifting Power | 12t | |
| Rotary Power Head | ||
| Torque | 4000/8000 N·m | |
| Rotation Speed | 92/46 rpm | |
| Feeding System | ||
| Stroke | 1700mm | |
| Feeding Force | 100kN | |
| Lifting Force | 160kN | |
| Power System | ||
| Power | 75 kw/2500 rpm | |
| Engine Model | Dongfeng Cummins QSB3.9-C100-31 | |
| Size | Transmission 4000X1800X2900 mm | |
| Working 4130X1900X3160 mm | ||
| Weight | 7t | |
The device has the following functions:
1. Direct push type undisturbed soil sampling.
2. Direct push for underground sampling.
3. Injetion to soil and Contaminant treatment for pollution control.
Advantages:
1. Thrust effictively
2. Without water
3. Drilling with sampling tube
4. Multifunction equipment :Sampling and polution treatment
