Roatary Soil Drilling Rig Hydaulic Crawler Sampling Machine
1 set
MOQ
Negotiationable
Price
Roatary Soil Drilling Rig Hydaulic Crawler Sampling Machine
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: XITAN EQUIPMENT
Certification: CE;ISO21900:2015
Model Number: EDS-70
High Light:

Roatary Soil Drilling Rig

,

Hydaulic soil Drilling Rig

,

Hydaulic Crawler Sampling Machine

Payment & Shipping Terms
Packaging Details: Machine in Nude Package, Spare Part in Wooden Case
Delivery Time: 30-90days
Payment Terms: T/T, Western Union
Supply Ability: 5sets/Month
Specifications
Condition: New
Drill Rod: Drilling Pipe
Specification: 4000X1800X2900mm
Drilling Way:: Direct Push,Rotary
Product Name:: Environmental Drill Rigs
Drilling Way: Direct Push/impact Drilling
Apllicable Groud: Soft Soil
Multifunction: Polution Sampling And Treatment In One
Product Description

Roatary Soil Drilling Rig Hydaulic Crawler Sampling Machine ​ESD-70



Indroduction

ESD-70 environmental sampling drilling rig is a new type of soil sampling rig. It is a full hydraulic drilling rig specially used in the field of environmental protection. The drilling rig uses a single impact power head, which is easy to operate and cost-effective.



The device has the following functions:
1. Direct push type undisturbed soil sampling.
2. Direct push for undergroud sampling.

3.Injetion to soil and Contaminant treatment for pollution control



Advantages:

1.Thrust effictively

2.Without water

3.Drilling with sampling tube

4.Multifunction equipment :Sampling and polution treatment



Parameter:

Impact power head
Torque(N·m) 950
Speed(rpm) 200
Frequency(Hz) 3120/3900/4800
Impact power (kw) 14.5
Slewing power head
Power head torque(N·m) 4000/8000
Power head speed (rpm) 92/46
power system
Engine model Commins QSB3.9-C100-31
Power(rpm) 75 kw/2500
Feeding system
Feed stroke(mm) 1700
Feeding force(kN) 100
Pulling back force (kN) 160
Basic data
Transport dimension(mm) 4000X1800X2900
Working dimension(mm) 4130X1900X3160
Weight(T) 6.6




The Confriguration of Soil Drill Rig

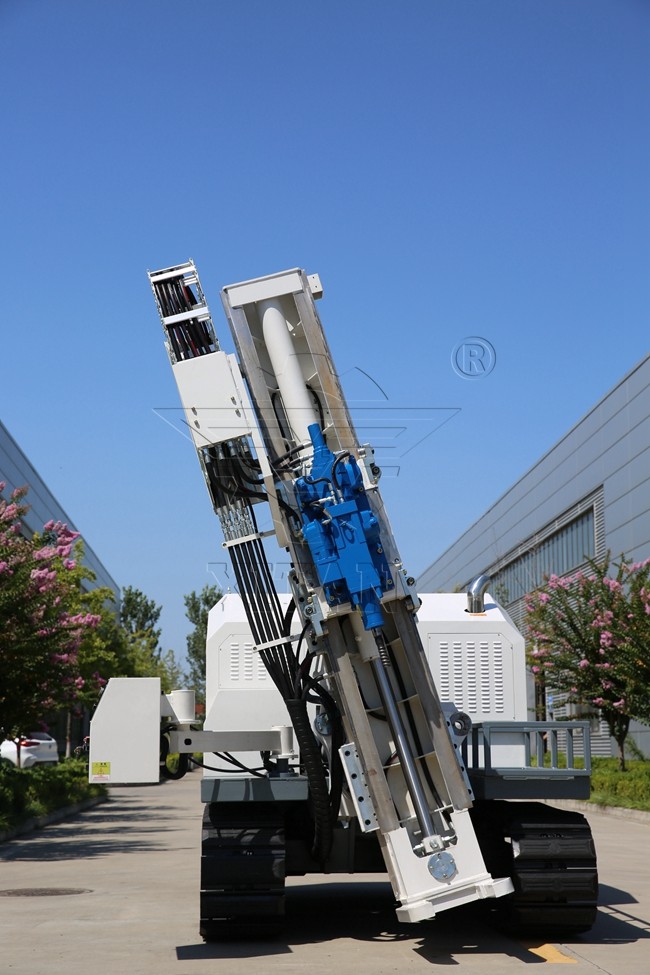

Roatary Soil Drilling Rig Hydaulic Crawler Sampling Machine 0

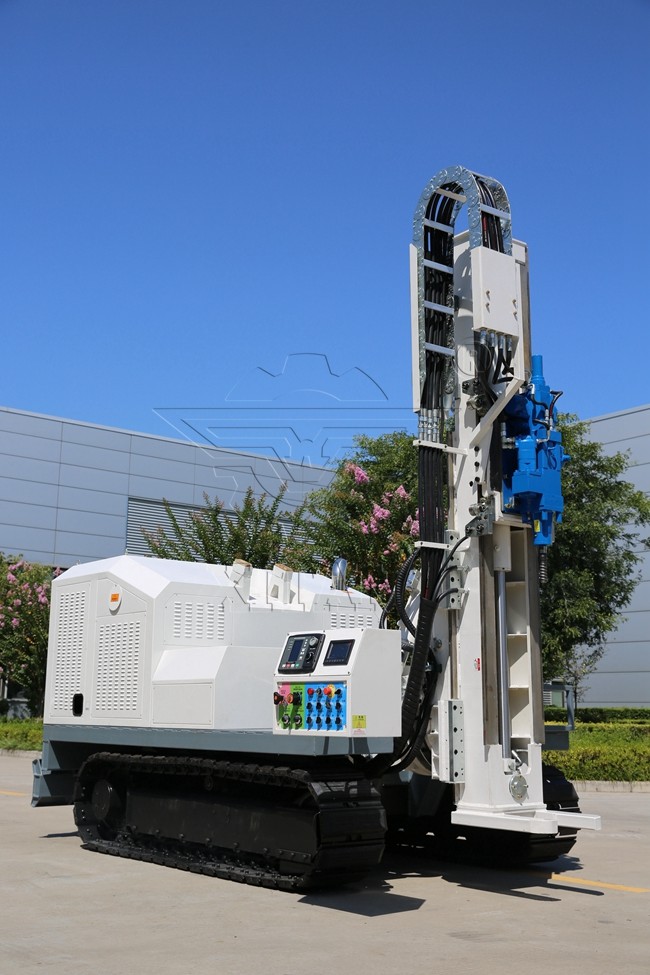

Roatary Soil Drilling Rig Hydaulic Crawler Sampling Machine 1

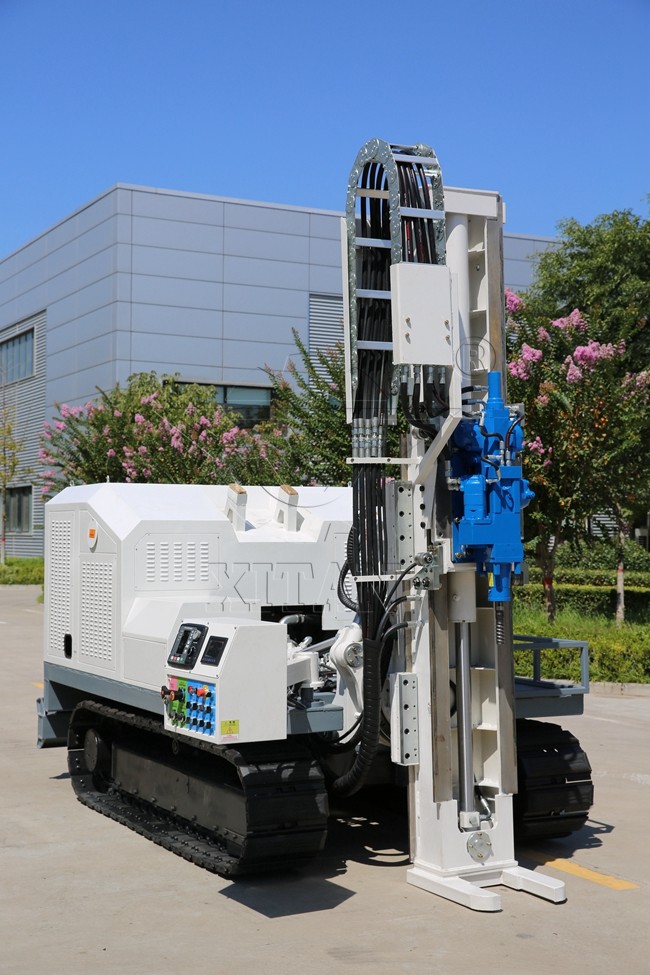

Roatary Soil Drilling Rig Hydaulic Crawler Sampling Machine 2



Roatary Soil Drilling Rig Hydaulic Crawler Sampling Machine 3
