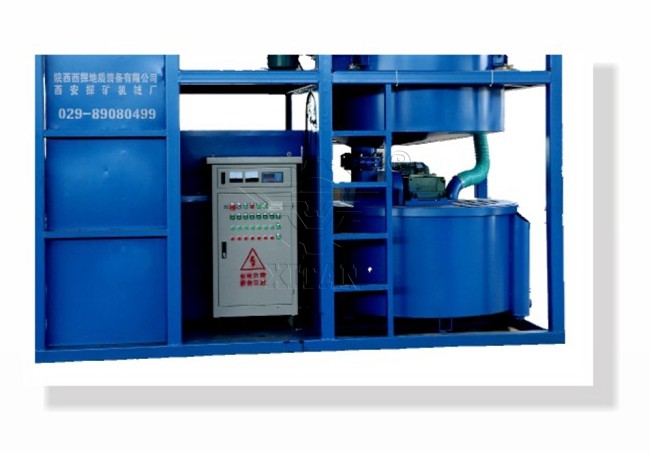

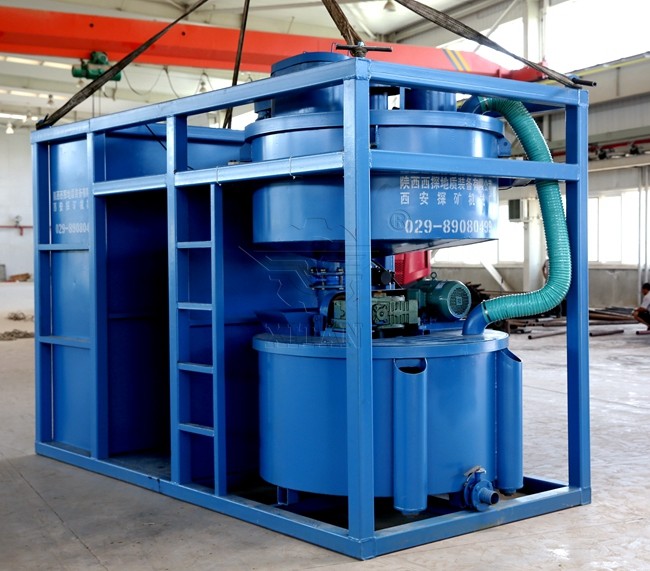

Double Tank Anti-Sediment Cement Mixing Station Advanced Construction Machine
Parameter
| Model | ZDJ-1 | |
| Power | 25KW | |
| Weight | 3000KG | |
| Dimensions | L4000×W2800×H1850mm | |
| Maximum mixing capacity | 10m3/h | |
| Mixing tank | Capacity | 1.4m3 |
| Power | 7.5kw | |
| Mixing Speed | 375r/min | |
| Agitator tank | Capacity | 1.2m3 |
| Power | 5.5kw | |
| Mixing Speed | 25r/min | |
| Water pump | Fluid | 15m3/h |
| Power | 3kw | |
| Air compressor | Flow | 0.25m3/h |
| Power | 2.2kw | |
Application of Double Tank Anti-Sediment Cement Mixing Station
It is widely used in foundation reinforcement projects such as jet grouting piles, two-axis mixing piles and SMW construction method piles.
Features of Double Tank Anti-Sediment Cement Mixing Station
The ZDJ-1 automatic mixer is a mixing system developed by our company to adapt to the supply of cement slurry in the construction of foundation reinforcement by construction companies. It has characteristics as below:
1. Compact structure.
2. A long life service.
3. cement grout mixing well.
4. Easy control and using conveniently.
5. High efficiency,low power consumption.
