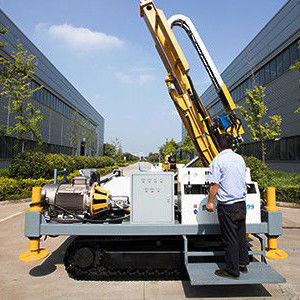

GM-5B Crawler Type Anchor Drilling Rig
1 set
GM-5B Crawler Type Anchor Drilling Rig
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: XiTan Equipment
Certification: CE; ISO9001:2015
Model Number: GM-5B
Payment & Shipping Terms
Packaging Details: Container
Delivery Time: 7-120 days
Payment Terms: T/T
Supply Ability: 200 set/year
Product Name: GM-5B Anchor Drilling Rig
Stroke: 3.4 M
Weight: 6.5 T
Size: 3260×2200×5500 Mm
Motor: (55+11)kW
Torque: 8000 N.m
Pile Diameter: 2 M
Drilling Depth: 120 M
Product Description

GM-5B Crawler Type Anchor Drilling Rig



Feature of Crawler Type Anchor Drilling Rig:

1. Adopting full hydraulic power head drive with step-less variable speed, high drilling efficiency, and low labor intensity;

2. The crawler-type anchor drilling rig hydraulic system is stable, reliable, long service life;

3. The power head adopts hydraulic variable speed and has high and low gears to meet the requirements of various strata and different drilling processes;

4. The drilling rig has a self-propelled crawler function, which makes it easy and fast to move the equipment;

5. The frame slewing adopts a large diameter slewing bearing, so the hole position can be easily turned to the side of the track manually when needed;

6. Compact structure, centralized operation, convenient and safe;

7. The column can be telescoped back and forth to meet the needs of anchor construction;

8. The standard equipment adopts a single gripper at the hole, equipped with special unloading tools, which makes it more convenient to dismantle the drill pipe, or optional double grippers, which reduces the labor intensity and operation time for loading and unloading the drill pipe;

GM-5B Crawler Type Anchor Drilling Rig 0



GM-5B Crawler Type Anchor Drilling Rig is used for foundation reinforcement, water isolation, leakage plugging, soft foundation treatment, and geological disaster management of various industrial and civil buildings such as railroads, highways, bridges, and roads foundations, and dam foundations. It can be used for rotary drilling with common alloy drill bits and other drilling tools, impact rotary drilling in rock layer with conventional ball tooth drill bits to form holes at high speed, and drilling holes with casing in unstable strata such as pebble layer with following pipe drilling tools.


GM-5B Crawler Type Anchor Drilling Rig 1


Matching Drill Tools:

  • GM-5B Crawler Type Fully Hydraulic Engineering Anchor Drilling Rig can be used together with XTB series foundation strengthening pump and automatic mixer.
  • GM-5B Crawler Type Fully Hydraulic Engineering Anchor Drilling Rig is combined with XiTian 5G intelligent cloud platform and diesel power unit.

The anchor hole drilling equipment is mainly an anchor drilling rig. According to the structure, anchor drilling rigs are divided into monoblock type, drilling car type, and machine type; according to the power, they are divided into electric type, pneumatic type, and hydraulic type; according to the rock-breaking mode, they are divided into rotary type, impact type, impact rotary type and rotary impact type. The drilling tools used with anchor drilling rigs are different according to the rock-breaking methods, in general, there are rotary rock-breaking tools, impact rock-breaking tools, and rotary impact rock-breaking tools.


Technical Data:

Mode GM-5B
Motor (55+11)kW
Weight 6.5t
Size Working(mm) 3260×2200×5500
Transportation(mm) 5000×2200×2300
Speed 1.5km/h
Climbing Capacity 20°
Diameter Pile
Max Diameter Max 2m
Max Depth 120m
Power Head
Feeding Stroke 3.4m
Pressurization 30kN
Rotation Speed 0~140 r/min
Lifting Power 65kN
Torque 8000N.m
Diameter Ф50mm Ф73 mm Ф89 mm
Drilling Angle 0°~ 90°
Expansion 900mm
Hydraulic System
Pressure Main Pump 18MPa
Sub-pump 1 18MPa
Sub-pump 2 18MPa


Product Packing:

GM-5B Crawler Type Anchor Drilling Rig 2

Company Profile:

Shannxi Xitan Geological Equipment Co., Ltd was established in 1958 as a specialized drilling rig manufacturer for more than 60 years. High-pressure jet grouting rigs, multifunctional engineering drilling rigs, anchor drilling rigs, and environmental drill rigs are our featured products with advanced technology, and other grouting equipment such as grouting pumps, and auto grout mixing stations are low energy consumption, environmental protection, and cost-effective. We are a High-pressure Jet Grouting Engineering Technology Center and National High-tec Enterprise in ancient City-Xi'an. The factory area is 23,000 m2. 300 million yuan production capacity per year can be reached. 150 million yuan has been invested in production line building and technological innovation.

GM-5B Crawler Type Anchor Drilling Rig 3GM-5B Crawler Type Anchor Drilling Rig 4

Factory Show:

GM-5B Crawler Type Anchor Drilling Rig 5


1. Are you the manufacturer?

Ans: Yes, we are a factory with more than 60years of manufacturing experience.


2. What are your terms of payment?

Ans: 50% deposit prepaid by T/T, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.


3. How about your delivery time?

Ans: Common drilling rig have in stock, could delivery in one week after get your full payment.

Customize drilling rig will take 15-45 days after receiving your advance payment. The specific delivery depends on the items and the quantity of your order.


4. What is the warranty of our machine?

Ans: Our main machine enjoys one year warranty. But unreasonable operation and wearing parts exclude.


5. Do you test all your goods before delivery?

Ans: Yes, we have 100% test before delivery. And we will attach our inspection report for every machine.


6. Do you have after-service?
Ans: Yes, we have a special after-sales service team that will supply you with professional guidance. And we provide videos for machine installation and operation.

If you need, we can send our engineers to your worksite and provide the training for your staff.
