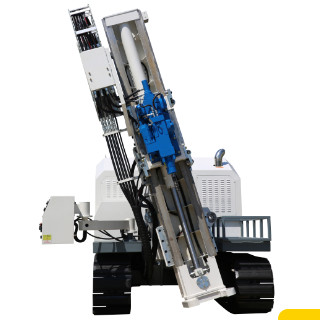

75kw 30m Depth Soil Remediation Treatment Drilling Rig for Sale
1 set
75kw  30m  Depth Soil Remediation Treatment Drilling Rig for Sale
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: XiTan Equipment
Certification: CE; ISO9001:2015
Model Number: ESD-70
Payment & Shipping Terms
Packaging Details: Container
Delivery Time: 7-120 days
Payment Terms: T/T
Supply Ability: 200 set/year
Product Name: ESD-70 Soil Drilling Rig
Stroke: 1.7 M
Weight: 7 T
Size: 4130X1900X3160 Working (mm)
Power: 75 Kw/2500 Rpm
Sampling Depth: 30 M
Sampling Diameter: Sampling Diameter
Product Description

75kw 30m Depth Soil Remediation Treatment Drilling Rig for Sale



The 75kw 30m depth soil remediation treatment drilling rig is the equipment that drives the drilling tool to break the rock at the bottom of the hole and take soil samples and cores. The soil remediation treatment drilling rig can be used to drill cores, mineral cores, rock chips, gaseous samples, liquid samples, etc., in order to explore the underground geology and mineral resources. The soil remediation treatment drilling rig has the features of lightweight, low fuel consumption, high power, stable performance, and long life. It is widely used in geology, metallurgy, hydropower, railroad, transportation, building materials, construction, environmental protection, and other departments and industries.


Product Profile of Soil Remediation Treatment Drilling Rig:

1. Power head: Achieve A: impact + rotary/B: auger two modes;

2. Column: feed cylinder direct push, column expansion, front and rear angle adjustment;

3. Man-machine console: realizing electro-hydraulic control and remote control operation;

4. Chassis: hydraulic motor reducer, rubber track walking;

5. Protective shields: provide protection for components and make the rig more integral;

6. Power unit: diesel engine;

7. Drill pipe compartment: store the drill pipe, easy to connect and dismantle the drill pipe;


75kw  30m  Depth Soil Remediation Treatment Drilling Rig for Sale 0





1. Direct push soil sampling.

2. Groundwater sampling.

3. Soil remediation treatment.

4. Groundwater remediation treatment.

5. High-pressure rotary jet soil remediation treatment.


75kw  30m  Depth Soil Remediation Treatment Drilling Rig for Sale 1





  • Soil Remediation Treatment Drilling Rig can quickly and efficiently complete the original soil layer, sedimentary sand layer sampling samples clear, undisturbed, sampling depth of up to 30 meters deep impact drilling.
  • Soil Remediation Treatment Drilling Rig does not need any flushing medium, using environmental non-polluting imported power impact system, powerful, reliable quality.
  • modular design, easy to transport, any module, two people can easily carry.
  • Single tube drilling tools, double tube drilling tools, and different caliber needs can be customized to meet the needs of different industries.
  • Using a hydraulic cylinder to pressurize and lift, is more stable than the traditional chain and other methods. Using a variable hydraulic system can better deploy lifting and pressurizing, lifting force 160kN, pressurizing force 100kN.



Soil Sampling Tools and Consumables:

  • Hollow auger drill
  • Direct push drilling rig drill pipe
  • Drill bit
  • Sampling tube
  • Monitoring well pipes
  • Tube
  • Disposable drill bit
  • Red and black bonnet
  • Quartz sand
  • Bentonite
  • Cutter and blade
  • Connector
  • Pullback cap

Technical Data:

Mode ESD-70
Sampling Depth 30m
Sampling Diameter 110mm(the depth of sampling will be reduced)
Power Head Impact Frequency ≥3,000 Hz
Impact Power Head
Torque 950 N·m
Rotation Speed 200rpm
Impact Frequency 3120/3990/4800 Hz
Impact Power 14.5 KW
Lifting Power 12t
Rotary Power Head
Torque 4000/8000 N·m
Rotation Speed 92/46 rpm
Feeding System
Stroke 1700mm
Feeding Force 100kN
Lifting Force 160kN
Power System
Power 75 kw/2500 rpm
Engine Model Dongfeng Cummins QSB3.9-C100-31
Size Transmission 4000X1800X2900 mm
Working 4130X1900X3160 mm
Weight 7t



1. Are you the manufacturer?

Ans: Yes, we are a factory with more than 60years of manufacturing experience.


2. What are your terms of payment?

Ans: 50% deposit prepaid by T/T, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.


3. How about your delivery time?

Ans: Common drilling rig have in stock, could delivery in one week after get your full payment.

Customize drilling rig will take 15-45 days after receiving your advance payment. The specific delivery depends on the items and the quantity of your order.


4. What is the warranty of our machine?

Ans: Our main machine enjoys one year warranty. But unreasonable operation and wearing parts exclude.


5. Do you test all your goods before delivery?

Ans: Yes, we have 100% test before delivery. And we will attach our inspection report for every machine.


6. Do you have after-service?
Ans: Yes, we have a special after-sales service team that will supply you with professional guidance. And we provide videos for machine installation and operation.

If you need, we can send our engineers to your worksite and provide the training for your staff.
