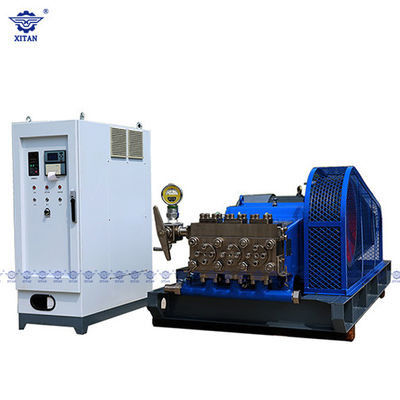

Widely Used Diesel Engine High-Pressure Grout Pump for Foundation Reinforcement in Russia for Sale
Application of Widely Used Diesel Engine High-Pressure Grout Pump for Foundation Reinforcement in Russia for Sale:
Widely Used Diesel Engine High-Pressure Grout Pump for Foundation Reinforcement in Russia for Sale product is suitable for the construction of foundation reinforcement, building settlement management, foundation seepage curtain, retaining cofferdam, slope anchoring, mine plugging, shaft wall protection, etc. in the fields of highway, railroad, mine, port, and national defense.
Feature of Widely Used Diesel Engine High-Pressure Grout Pump for Foundation Reinforcement in Russia for Sale:
1. Use of intelligent control technology, real-time display of instantaneous flow, pressure, and cumulative flow and printing.
2. The hydraulic end employs a plunger lubrication structure, the seal effectively increases service life, easy and rapid replacement of wearing parts, and a sturdy and anti-wear alloy valve seat, minimizing the frequency of stopping and replacing parts.
3. Use of frequency converter speed control eliminates the need for a mechanical gearbox, clutch, and other multi-fault transmission components, resulting in a smaller, more reliable unit with a compact structure, smooth start-up operation, and reduced energy consumption, and minimal impact on the power grid.
4. The electrical control circuit is simple and reliable, through the simple operation panel, it can realize "foolproof" operation and display the basic operating parameters; it can set and display various operating parameters of the equipment.
5. Widely Used Diesel Engine High-Pressure Grout Pump for Foundation Reinforcement in Russia for Sale includes a full range of protective features and can guard against and regulate power loss, phase loss, over-voltage, under-voltage, over-current, torque, and pump pressure, among other things.

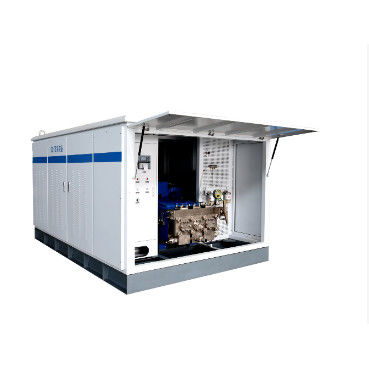

6. The whole adopts a container-type protection system (optional), which is environmentally friendly, simple, and easy to transport.
7. Widely Used Diesel Engine High-Pressure Grout Pump for Foundation Reinforcement in Russia for Sale can meet the technical requirements of single-pipe, double-pipe, and three-pipe rotary spray pile construction and other ultra-high pressure rotary spray construction methods.
|Model Name||ZJB/BP 55||ZJB/BP 55A||ZJB/BP 90||ZJB/BP 90A||ZJB/BP 132|
|Plunger Diameter||45 mm||55 mm||45 mm||55 mm||60 mm|
|Plunger Stroke||120 mm||120 mm||120 mm||120 mm||100 mm|
|Maximum Grouting Flow||
|Maximum Pressure||30 MPa||20 MPa||50 MPa||30 MPa||50 MPa|
|Motor Power||55 kW||55 kW||90 kW||90 kW||132 kW|
|Inlet Diameter||50 mm||50 mm||50 mm||50 mm||50mm|
|Outlet Diameter||25 mm||25 mm||25 mm||25 mm||25 mm|
|Total Weight||1450 Kg||1450 Kg||2200 Kg||2200 Kg||2900 Kg|
|Dimensions||2348X1056X826 mm||2348X1056X826 mm||2490X1196X915 mm||2490X1196X915 mm||2673X1546X1100 mm|
Shannxi Xitan Geological Equipment Co., Ltd was established in 1958 as a specialized drilling rig manufacturer for more than 60 years. High-pressure jet grouting rigs, multifunctional engineering drilling rigs, anchor drilling rigs, and environmental drill rigs are our featured products with advanced technology, and other grouting equipment such as grouting pumps, and auto grout mixing stations are low energy consumption, environmental protection, and cost-effective. We are a High-pressure Jet Grouting Engineering Technology Center and National High-tec Enterprise in ancient City-Xi'an. The factory area is 23,000 m2. 300 million yuan production capacity per year can be reached. 150 million yuan has been invested in production line building and technological innovation.
1. Are you the manufacturer?
Ans: Yes, we are a factory with more than 60years of manufacturing experience.
2. What are your terms of payment?
Ans: 50% deposit prepaid by T/T, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
3. How about your delivery time?
Ans: Except for the GY60/80 model anchor drilling rig which is not in stock, the common drilling rig has in stock, and could be delivered in one week after getting your full payment.
Customize drilling rig will take 15-45 days after receiving your advance payment. The specific delivery depends on the items and the quantity of your order.
4. What is the warranty of our machine?
Ans: Our main machine enjoys one year warranty. But unreasonable operation and wearing parts exclude.
5. Do you test all your goods before delivery?
Ans: Yes, we have 100% test before delivery. And we will attach our inspection report for every machine.
6. Do you have after-service?
Ans: Yes, we have a special after-sales service team that will supply you with professional guidance. And we provide videos for machine installation and operation.
If you need, we can send our engineers to your worksite and provide the training for your staff.
