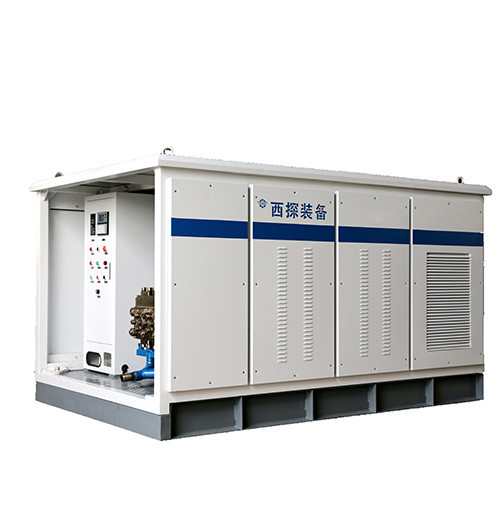

160KW 45MPa High Pressure Mud Pump Grouting Wear Resistant
1 set
160KW 45MPa High Pressure Mud Pump Grouting Wear Resistant
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: XiTan Equipment
Certification: CE;
Model Number: XTB-50
High Light:

45MPa High Pressure Mud Pump


160KW High Pressure Mud Pump


45MPa mud sucker pump

Payment & Shipping Terms
Packaging Details: Container
Delivery Time: 7-120 days
Payment Terms: T/T
Supply Ability: 200 set/year
Structure: Compact
Motor Power: 160KW
Application: Jet Grouting Construction
Performance: High Pressure
Inlet Diameter: 50 Mm
Outlet Diameter: 25 Mm
Package: Nude, Woody Box, As Customized
Condition: New
Product Description

XTB-50 High-pressure variable frequency grouting pump



High-pressure variable frequency grouting pump series products are applied in highway, railway, mine, port, national defense, and other fields of foundation reinforcement, building settlement treatment, foundation impermeable curtain, retaining cofferdam, slope anchorage, mine plugging, shaft wall, and other engineering construction.


Main feature:

1. Intelligent control technology is applied for displaying and printing instantaneous flow, pressure, and accumulated flow.

2. The plunger lubrication structure in the fluid end prolongs the service life of the sealing part and makes the wearing part be replaced easily and quickly. A durable and wear-resistant alloy valve seat reduces the frequency of parts replacement.

3. Invert speed control system without mechanical gearbox, clutch, and other transmission components, it reduces dimension, and has compact structure, low failure rate, stronger performance, stable start-up and operation, energy saving, and avoid impacting on the electric netting.

4. Safe and simple electrical control circuit. A simple operation panel, "fool" operation, can set various operating parameters of the equipment, and display basic operating parameters.

5. With complete protection function, it can control power loss, phase loss, over-voltage, under voltage, over current, torque, and pump pressure.

6. Cover protection system (optional) is good for environmental protection and convenient transportation.

7. It can meet the technical requirements of a single pipe, double pipe, and triple pipe rotary jet pile construction.


Technical Parameters




XTB---20/20(A) XTB---30A/30C XTB---50 XTB---60
Plunger diameter  45/55mm 60/65mm 70mm 85mm
Plunger stroke  120mm 100mm 135mm 152.4mm
Maximum mud flow 65/100L/min 95/100L/min 120L/min 150L/min
Maximum pressure  50/34MPa 50/40MPa 45MPa 45MPa
Motor power  90Kw 132Kw 160Kw 200Kw
Inlet diameter  38mm 38mm 50mm 60mm
Outlet diameter  25mm 25mm 25mm 32mm
Total weight  3250Kg 4600Kg 5950Kg 7200Kg
Dimensions  2700X1800X1600mm 3350X2226X1600mm 3425X2300X1800mm 3726X2400X2100mm

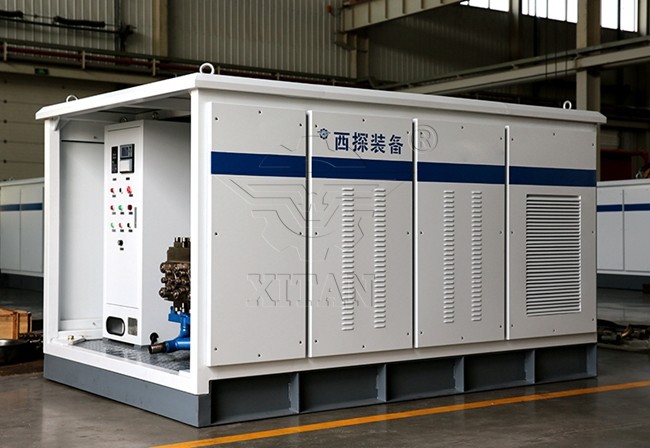

160KW 45MPa High Pressure Mud Pump Grouting Wear Resistant 0

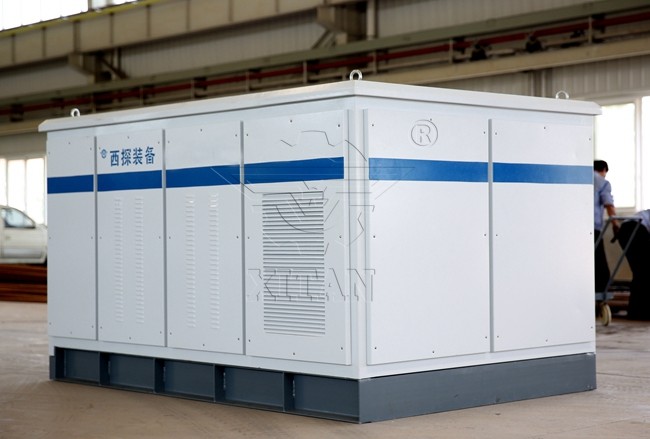

160KW 45MPa High Pressure Mud Pump Grouting Wear Resistant 1
