50 Meter Crawler Dia 42mm Rotary Foundation Drill Rig
1set
MOQ
Negotiation
Price
50 Meter Crawler Dia 42mm Rotary Foundation Drill Rig
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: XiTan Equipment
Certification: CE; ISO9001:2015
Model Number: XL-50C
High Light:

42mm Rotary Foundation Drill Rig

,

Crawler rotary foundation drill rig

,

50Meter foundation drilling machine

Payment & Shipping Terms
Packaging Details: Container
Delivery Time: 7-120 days
Payment Terms: T/T
Supply Ability: 200 pieces/year
Specifications
Product Name: XL-50C Crawler Jet Grouting Drill Rig
Drill Hole Depth: 50m
Pile Diameter: 1.5 M
Drilling Way: Rotary
X Type: Crawler
Power Type: Electric/Diesel
Applicable Industries: Construction Works
Condition: New
Product Description

XL-50C 50 Meter Crawler Dia 42mm Rotary Foundation Drill Rig





Application:

XL-50C 50 Meter Crawler Dia 42mm Rotary Foundation Drill Rig is mainly adapted for reinforcement foundation construction of railways, highways, bridges, dam , various industrial buildings, and civil buildings.anchoring for Pit foundation support; If it’s matched with air compressors and pneumatic down-the-hole hammers can be used for drilling with following pipe. It can be not only used for general jet grouting (swing jetting, fixed jetting) engineering construction, but also for shallow hole drilling and engineering exploration drilling.



Main Features:

1. It adopts full hydraulic control, convenient and flexible operation, crawler type is convenient moving and quick walking and moving in place. the power head is a long stroke, assistant time is shortened.

2. High efficiency and Low energy consumption. Direct-acting load feedback and fine-tuning hydraulic system, power changes with the loading.

3. The special valve with friction positioning is adopted for the gyrator and meets the requirements of the jet grouting process.

4. The power head has a wide variable speed range, which can meet the requirements of various formations and different drilling techniques.

5. Equipped with a slewing bearing, the hole position can be transferred to the side of the crawler when needed.

6. Compact structure for centralized operation, it’s convenient and safe.

7. Equipped with display devices for vertical drilling tower, power head rotation, and lifting speed.



Technical Data:

Mode XL-50C
Torque Max 3000 N·m
Weight 2.8t
Climbing Ability 30°
Speed 1km/h
Size Working(mm) 2600×1800×4600
Transportation(mm) 1780×1800×4600
Diameter Pile
Max Diameter 1.5m
Max Depth 50m
Power Head
Rotation Speed High 0—148r/min r/min Low 0—48r/min
Stroke 3.5m
Power Head Rated Lifting Force 30kN
Power Head Pressurization 12kN
Quick up-down 0~22/0~28 m/min
Borehole
Diameter Ф42mm Ф50mm Ф73mm
Angle Left and right ± 3° Tilt 10° forward and 90° back
Depth 50m


Supporting Drilling Tools:

1. In single pipe drilling and jet grouting integrated construction , wchich is suitable for high-speed drilling in soil, sand and other formations.Only need to be matched with a three-wing drill bit or in-line drill bit and Ф42 or Ф50 drill pipe.

2. In jet grouting and anchor construction, just equipped with 65 locking anchor rod thruster and anchor rope drill pipe, it can be suitable for reinforcement by anchor cable.

3. Single-tube, double-tube, triple-tube rotary spray, swing spray, fixed spray, and other techniques.



50 Meter Crawler Dia 42mm Rotary Foundation Drill Rig 0

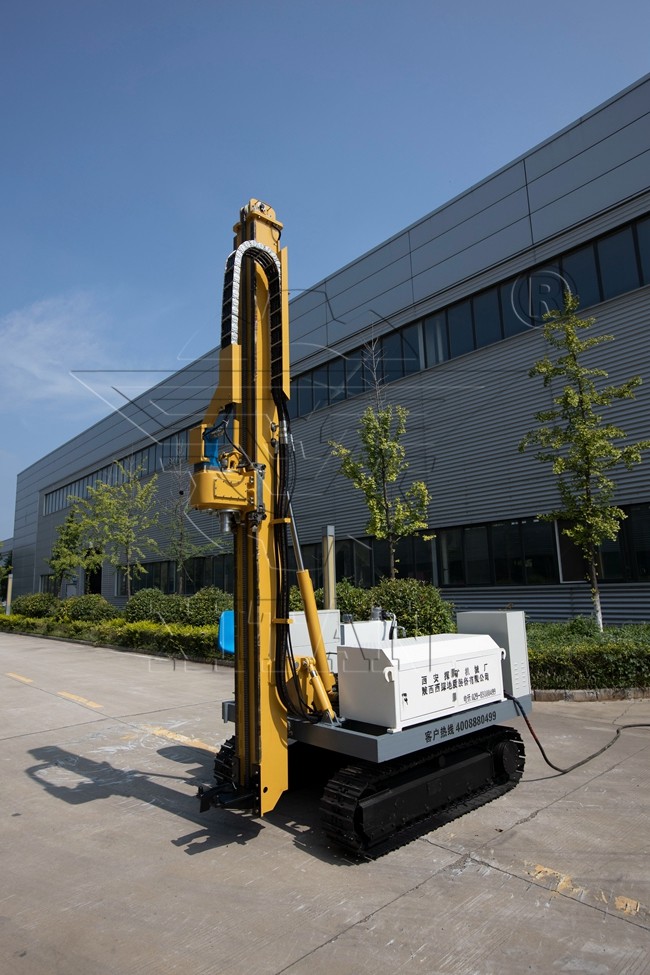

50 Meter Crawler Dia 42mm Rotary Foundation Drill Rig 1

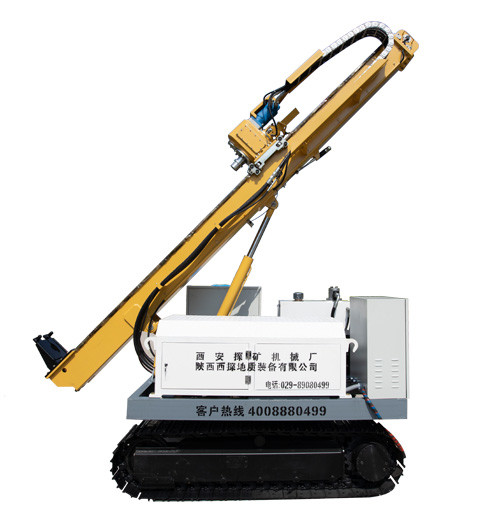

50 Meter Crawler Dia 42mm Rotary Foundation Drill Rig 2

50 Meter Crawler Dia 42mm Rotary Foundation Drill Rig 3
