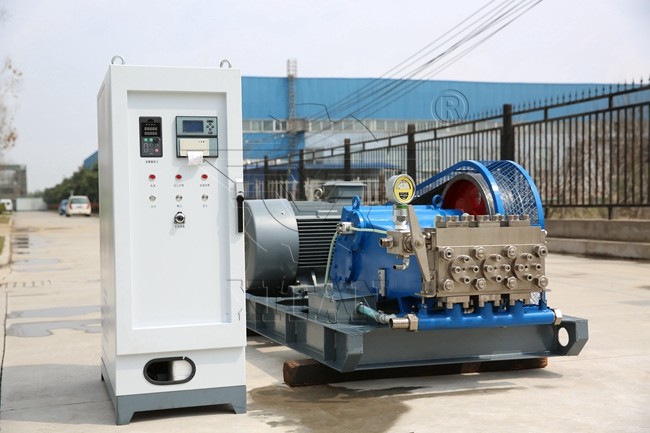

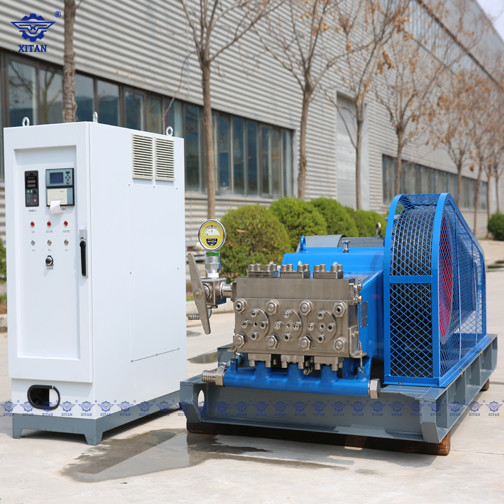

ZJB-55/55(A) Cement Slurry Grouting Triplex Mud Pump For Drilling Construction
High-pressure variable frequency grouting pump series products are applied in highway, railway, mine, port, national defense, and other fields of foundation reinforcement, building settlement treatment, foundation impermeable curtain, retaining cofferdam, slope anchorage, mine plugging, shaft wall, and other engineering construction.
1. Intelligent control technology is applied for displaying and printing instantaneous flow, pressure, and accumulated flow.
2. The plunger lubrication structure in the fluid end prolongs the service life of the sealing part and makes the wearing part be replaced easily and quickly. A durable and wear-resistant alloy valve seat reduces the frequency of parts replacement.
3. Invert speed control system without mechanical gearbox, clutch, and other transmission components, it reduces dimension, and has compact structure, low failure rate, stronger performance, stable start-up and operation, energy saving, and avoid impacting on the electric netting.
4. Safe and simple electrical control circuit. A simple operation panel, "fool" operation, can set various operating parameters of the equipment, and display basic operating parameters.
5. With complete protection function, it can control power loss, phase loss, over-voltage, under voltage, over current, torque, and pump pressure.
6. Cover protection system (optional) is good for environmental protection and convenient transportation.
7. It can meet the technical requirements of a single pipe, double pipe, and triple pipe rotary jet pile construction.
|Model Name||ZJB/BP55||ZJB/BP 55(A)|
|Maximum grouting flow||114L/min||160L/min|
