Home /Products/High Pressure Mud Pump/High Pressure Mud Slurry Water Pump Triplex Motor or Diesel

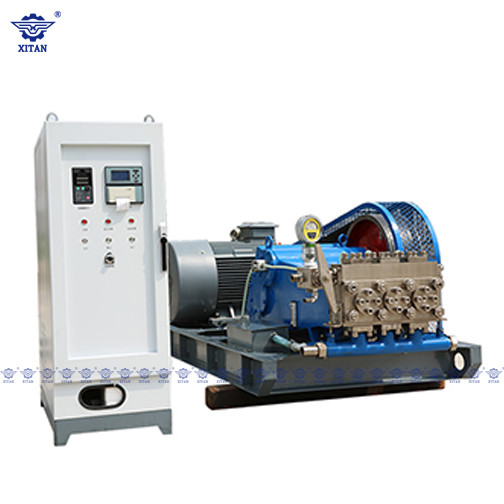

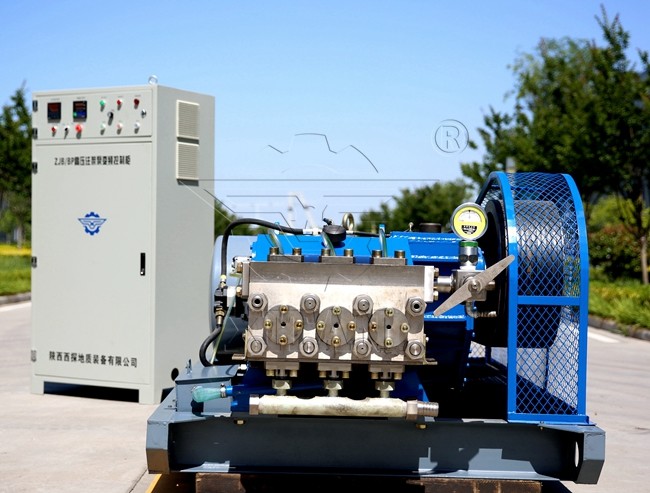

High Pressure Mud Slurry Water Pump Triplex Motor or Diesel
1 set
MOQ
Negotiation
Price
High Pressure Mud Slurry Water Pump Triplex Motor or Diesel
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: XiTan Equipment
Certification: CE;
Model Number: ZJB-132/132(A)
High Light:

Triplex Motor Slurry Water Pump

,

Diesel Motor Slurry Water Pump

,

High Pressure mud water pump
Payment & Shipping Terms
Packaging Details: Container
Delivery Time: 7-120 days
Payment Terms: T/T
Supply Ability: 200 set/year
Specifications
Structure: Compact
Motor Power: 132 Kw
Application: Ground Improvement Construction
Performance: High Pressure, Variable Frequency
Inlet Diameter: 50 Mm
Outlet Diameter: 25 Mm
Package: Nude, Woody Box, As Customized
Condition: New
Product Description

High-Pressure Mud Slurry Water Pump Triplex Motor or Diesel



Construction Application:

Grout Pump is used for grouting in soil, earth foundation stabilization, waterproofing, tunnel lining, underwater foundations, bridge decks, deep well casing, slope line grouting, etc.



Pump Structure:

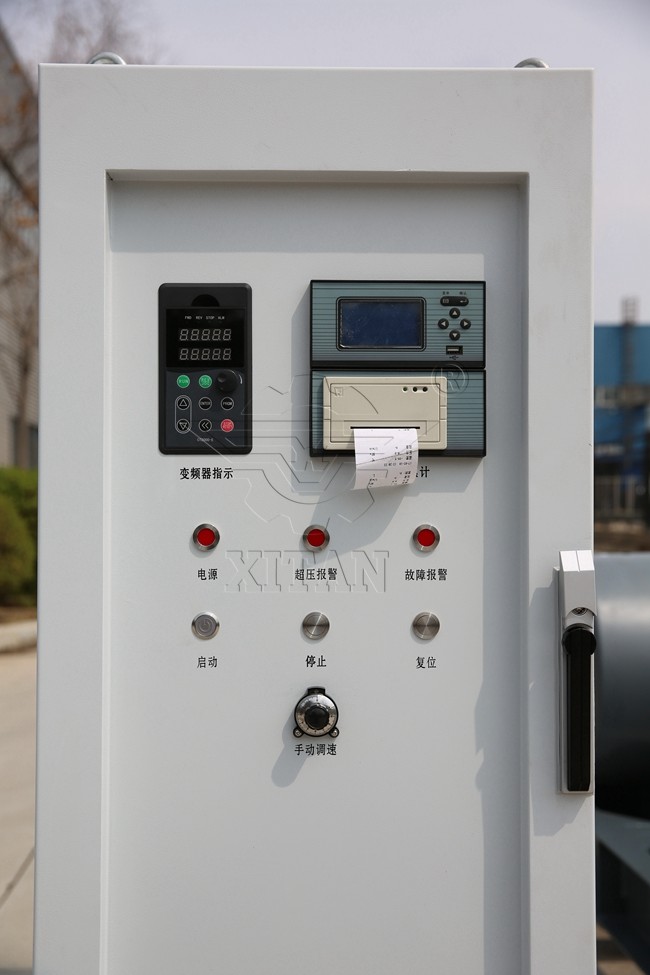

It is mainly composed of a pump head, pump body, frame,  filter, VFD cabinet, grout inlet pipe, and tap of grout inlet.



Main Feature:

1. High Pressure

2. Variable Frequency

3. Pure cement grouting only



Technic Parameter



Model Name ZJB/BP132 ZJB/BP 132(A)
Plunger diameter 60mm 65mm
Plunger stroke 100mm 100mm
Maximum grouting flow 150L/min 170L/min
Maximum pressure 50MPa 50MPa
Motor power 132Kw 132Kw
Inlet diameter 50mm 50mm
Outlet diameter 25mm 25mm
Total weight 2900Kg 2900Kg
Dimensions

2673X1546X1100mm

2673X1546X1100mm







High Pressure Mud Slurry Water Pump Triplex Motor or Diesel 0

High Pressure Mud Slurry Water Pump Triplex Motor or Diesel 1

High Pressure Mud Slurry Water Pump Triplex Motor or Diesel 2

Tag:

160KW Cement Grouting Pump

High Pressure Cement Grouting Pump

Mine cement pressure grouting machine
