Hydraulic DTH 110r/Min 55kW Jet Grouting Drilling Rig
1set
MOQ
Negotiation
Price
Hydraulic DTH 110r/Min 55kW Jet Grouting Drilling Rig
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: XiTan Equipment
Certification: CE; ISO9001:2015
Model Number: GL-6000S
High Light:

55kW Jet Grouting Drilling Rig

,

DTH Jet Grouting Drilling Rig

,

110r/min Hydraulic Drilling Rig

Payment & Shipping Terms
Packaging Details: Container
Delivery Time: 7-120 days
Payment Terms: T/T
Supply Ability: 200 set/year
Specifications
Product Name: Jet Grouting Rig
Type: Full Hydraulic, Crawler, Rotary, Jet Grouting
Condition: New
Power Type: Electric/Diesel
Dimension(L*W*H): 5.6m×2m×2.93m
Drill Diameter (mm): 110-400mm
Drill Depth (m): 50-200m
Drilling Angle:: 360
Applicable Industries: Construction Works,ground Improvement
Pile Diameter: 2.2 M
Supplier: Manufacture
Voltage: As Requirement
Product Description

GL-6000S Hydraulic DTH 110r/Min 55kW Jet Grouting Drilling Rig



Feature:

Powerful
Top-drive head driven by hydraulic, stepless speed regulation, high efficiency, and low labor intensity.
Variable hydraulic system with load feedback, low energy consumoment.
Satiable for jet grouting technic.
Top-drive head has a wide range of rotary speeds and meets varying layers,s, and drilling technology.
With track chassis, easy and speedy to move.
With rotary support.
A longer stroke of the top-drive head reduces auxiliary operation time.
Compact structure, centralized operation, easy and safe.
With display unit.



Drilling Method:

1. Carbide bits drilling.

2. rotation drilling.

3. auger drilling.

4. Drilling with a pneumatic DTH hammer.

5. Pneumatic DTH hammer and following-up casing drilling.

6. Extensional functions are rotary jet grouting, swivel jet grouting, or fixed jet grouting drilling.



Construction Application:

1. Tunnels Pipe shed support.

2. Rock and soil anchoring.

3. Blasting holes.

4. Embankment and dam reinforcement.

5. Drilling holes for geothermal energy.

6. Hydrological wells.

7. Foundation pile construction.
8. Geological disaster treatment and other engineering fields.



Optional power:

1. Diesel power

2. Electric motor

3. Diesel electric dual power



Technical Data:

Mode GL6000S
Motor Motor 55kW Diesel 56kW
Weight 7.9t
Size 5600mm×2000mm×2930mm
Speed High 5.06 km/h Low 2.6km/h
Climbing Capacity 20°
Diameter Pile
Max Diameter Max 2.2m
Max Depth 200m
Power Head
Feeding Stroke 3m
Feeding Force 58kN
Rotation Speed Low 8~50.6r/min
High 16~101r/min
Lifting Power 110kN
Torque 3000N.m~6000N.m
Borehole
Depth 50~200m
Diameter 110~400mm
Drill pipe (diameter x length) 60~89×2500mm
Horizontal Hole Height High 3450mm Low 338mm
Column
Sliding Stroke 1200mm
Pitch Angle 120°
Swing Angle 0°~90°
Drill Arm Pitching Angle Elevation angle 35°

Pitch Angle

16°

Hydraulic System
Rated Flow Main Pump 100L/min
Sub-pump 30L/min 15L/min
Rated Pressure Main Pump 21MPa
Sub-pump 18MPa

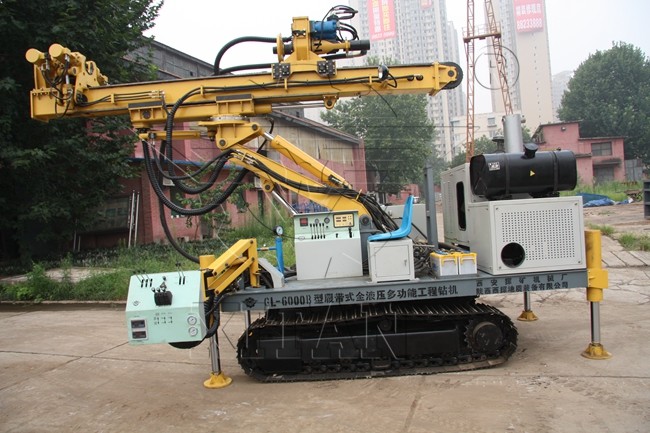

Hydraulic DTH 110r/Min 55kW Jet Grouting Drilling Rig 0

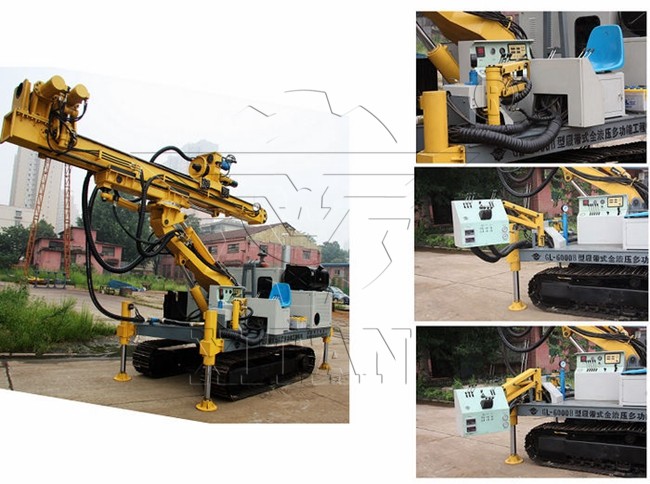

Hydraulic DTH 110r/Min 55kW Jet Grouting Drilling Rig 1

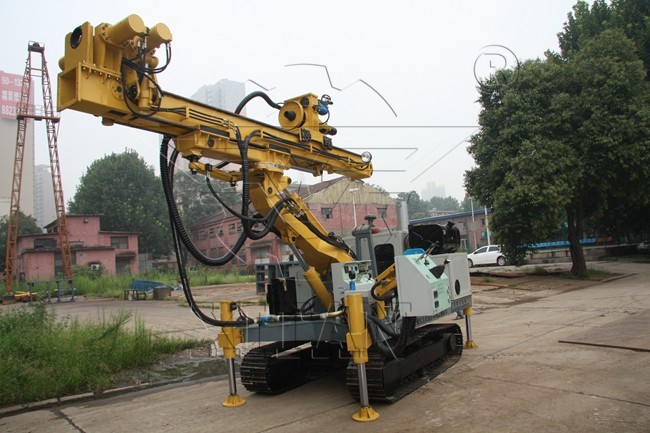

Hydraulic DTH 110r/Min 55kW Jet Grouting Drilling Rig 2
