GM-6A Multifunctional Engineering Drilling Rig
1 set
GM-6A Multifunctional Engineering Drilling Rig
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: XiTan Equipment
Certification: CE; ISO9001:2015
Model Number: GM-6A
Payment & Shipping Terms
Packaging Details: Container
Delivery Time: 7-120 days
Payment Terms: T/T
Supply Ability: 200 set/year
Product Name: GM-6A Construction Drilling Rig
Stroke: 3.4 M
Weight: 7.5 T
Size: 5000mm×2200mm×2300mm
Motor: Motor 55kW Diesel 55kW
Torque: 4000N.m-8000N.m
Pile Diameter: 2.2 M
Drilling Depth: 200 M
Product Description

GM-6A Multifunctional Engineering Drilling Rig



GM-6A Multifunctional Engineering Drilling Rig is a new model developed by our factory according to the market demand of engineering, mainly applicable to rotary drilling, auger drilling, air submersible hammer drilling, pipe following drilling, high-pressure rotary spray construction, and other drilling process methods.

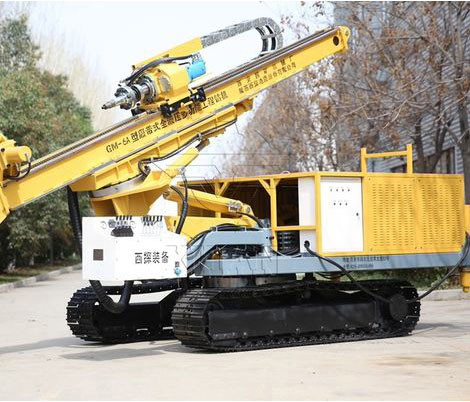

GM-6A Multifunctional Engineering Drilling Rig 0


1. The shell: the installation of the shell shape not only makes the machine more scientific but also protects the key hydraulic parts from pollution.

2. Outriggers: not only to protect the cylinder from damage but also to enhance the support strength.

3. Console: split console, make the operation simpler, to avoid misuse. The console can swing and rotate, and the distance from the orifice can be adjusted to facilitate the observation of the orifice.

4. Track: longer and stronger track, effectively preventing sagging, to adapt to a wider range of strata.

5. Lifting: Adjustable orifice height no longer depends on the level of the face.

6. Automatic turntable: eliminating manual labor, it is easier and more convenient.

7. Through-hole high-pressure faucet: the necessary equipment to expand the head construction.

8. Power head: The GM-6A Multifunctional Engineering Drilling Rig machine gyrator is driven by a double hydraulic motor, with higher output torque and a lower swing center than similar products, which greatly improves the balance of the drilling rig drilling. Expansion joints are configured to greatly extend the drill pipe thread life. The sliding mode of the power head is a roller, the drilling angle is stable and the maintenance cost is low. Modular design, the whole machine reserved spare hydraulic system position, convenient later upgrade to change the top driving head, realize top drive construction.

9. Cooling system: According to the customer's special conditions, the cooling system is optimized to ensure that the hydraulic system when the outdoor temperature is 45 °C, the maximum temperature does not exceed 70 °C.

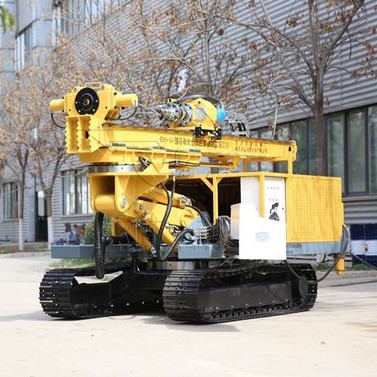

GM-6A Multifunctional Engineering Drilling Rig 1

Optional Parts:

1. GM-6A Multifunctional Engineering Drilling Rig can be equipped with high power and high flow XTB series foundation strengthening pump and automatic mixer.

2. Wireless transmission and diesel power units are optional to monitor and control the equipment on the drilling rig.

Note: The user can choose diesel engine power, electric motor power, or diesel engine power/motor dual power.



GM-6A Multifunctional Engineering Drilling Rig can be widely used in the following engineering fields: tunnel pipe shed support, over-advance forecast, deep foundation pit anchorage, open quarry shell hole, anti-floating anchorage, ground source heat pump hole, hydrological water well, and geological disaster management.

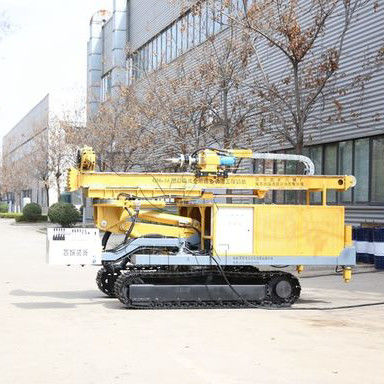

GM-6A Multifunctional Engineering Drilling Rig 2

Technical Data:

Mode GM-6A
Motor Motor 55kW Diesel 55kW
Weight 7.5t
Size 5000mm×2200mm×2300mm
Speed 1.5km/h
Climbing Capacity 20°
Diameter Pile
Max Diameter Max 2.2m
Max Depth 200m
Power Head
Feeding Stroke 3.4m
Feeding Force 35kN
Rotation Speed Low 0—60r/min
High 0-120r/min
Lifting Power 65KN
Torque 4000N.m-8000N.m
Depth 50~200m
Diameter Φ50-Φ200mm
Drill pipe (diameter x length) (Φ50,Φ89)x3000mm
Horizontal Hole Height High 3100mm Low 2100mm
Sliding Stroke 900mm
Pitch Angle 90°~ -10°
Swing Angle ±25°


Product Packing:

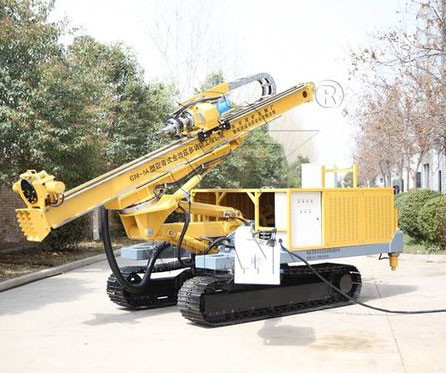

GM-6A Multifunctional Engineering Drilling Rig 3

Company Profile:

Shannxi Xitan Geological Equipment Co., Ltd was established in 1958 as a specialized drilling rig manufacturer for more than 60 years. High-pressure jet grouting rigs, multifunctional engineering drilling rigs, anchor drilling rigs, and environmental drill rigs are our featured products with advanced technology, and other grouting equipment such as grouting pumps, and auto grout mixing stations are low energy consumption, environmental protection, and cost-effective. We are a High-pressure Jet Grouting Engineering Technology Center and National High-tec Enterprise in ancient City-Xi'an. The factory area is 23,000 m2. 300 million yuan production capacity per year can be reached. 150 million yuan has been invested in production line building and technological innovation.

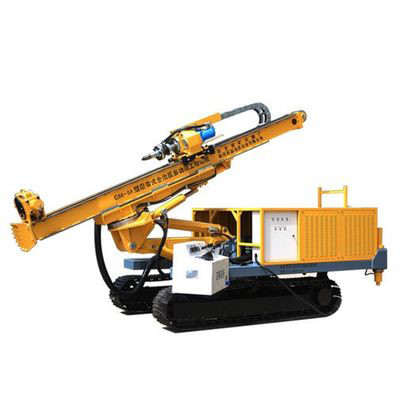

GM-6A Multifunctional Engineering Drilling Rig 4GM-6A Multifunctional Engineering Drilling Rig 5

Factory Show:

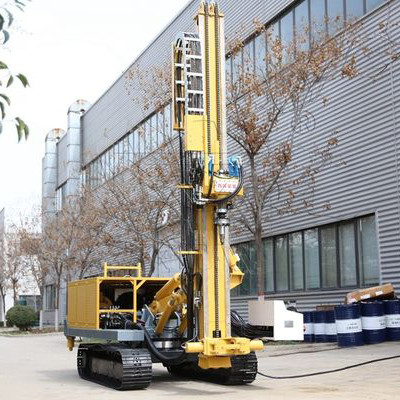

GM-6A Multifunctional Engineering Drilling Rig 6


1. Are you the manufacturer?

Ans: Yes, we are a factory with more than 60years of manufacturing experience.


2. What are your terms of payment?

Ans: 50% deposit prepaid by T/T, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.


3. How about your delivery time?

Ans: Common drilling rig have in stock, could delivery in one week after get your full payment.

Customize drilling rig will take 15-45 days after receiving your advance payment. The specific delivery depends on the items and the quantity of your order.


4. What is the warranty of our machine?

Ans: Our main machine enjoys one year warranty. But unreasonable operation and wearing parts exclude.


5. Do you test all your goods before delivery?

Ans: Yes, we have 100% test before delivery. And we will attach our inspection report for every machine.


6. Do you have after-service?
Ans: Yes, we have a special after-sales service team that will supply you with professional guidance. And we provide videos for machine installation and operation.

If you need, we can send our engineers to your worksite and provide the training for your staff.
