GL-6000S Multifunctional Engineering Drilling Rig
1 set
MOQ
Negotiation
Price
GL-6000S Multifunctional Engineering Drilling Rig
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: XiTan Equipment
Certification: CE; ISO9001:2015
Model Number: GL-6000S
Payment & Shipping Terms
Packaging Details: Container
Delivery Time: 7-120 days
Payment Terms: T/T
Supply Ability: 200 set/year
Specifications
Product Name: GL-6000S Construction Drilling Rig
Stroke: 3 M
Weight: 7.9 T
Size: 5600mm×2000mm×2930mm
Motor: Motor 55kW Diesel 56kW
Torque: 3000N.m~6000N.m
Pile Diameter: 2.2 M
Drilling Depth: 200 M
Product Description

GL-6000S Multifunctional Engineering Drilling Rig



Feature:

  • Multi-directional variable amplitude mechanism, the GL-6000S Multifunctional Engineering Drilling Rig can achieve multi-row and multi-angle drilling in one position, with strong adaptability;
  • High rotary torque and long feed stroke can effectively improve drilling efficiency;
  • The GL-6000S Multifunctional Engineering Drilling Rig has a self-propelled crawler function, with high and low speed, and is equipped with a rack slewing device, which is convenient and quick to move the equipment;
  • The hole entrance is equipped with a hydraulic gripper and buckle-unloading device, which can shorten the up and down drilling time and reduce the labor intensity of workers;
  • The main components of the hydraulic system of the drilling rig are imported brands, and the general components are selected from famous domestic brands, which make the system stable, reliable, and long service life;
  • Power head adopts hydraulic variable speed mode, can realize step-less variable speed in a certain range, and has high and low grade;
  • Adopt direct-acting load feedback fine-tuning variable hydraulic system, the power changes with the load, high efficiency, low energy consumption;
  • Equipped with power head rotation speed, lifting speed, and column vertical display device, fast and accurate positioning of the hole;

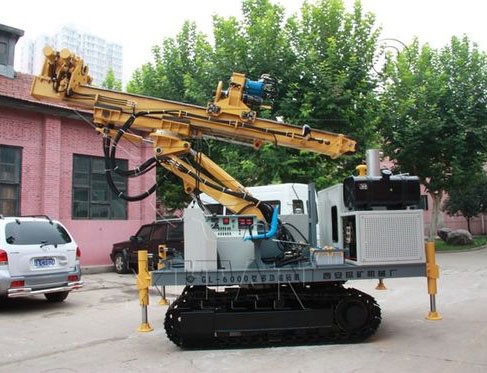

GL-6000S Multifunctional Engineering Drilling Rig 0

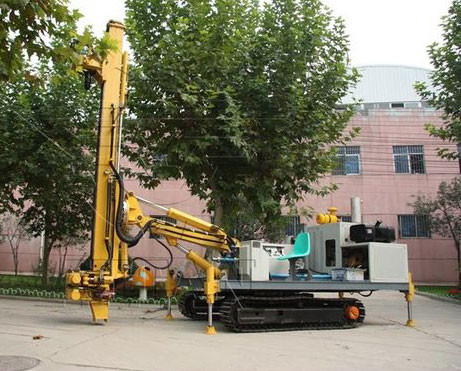

GL-6000S Multifunctional Engineering Drilling Rig 1



Application:

GL-6000S Multifunctional Engineering Drilling Rig is a new type of machine developed according to the engineering market demand. The machine is mainly suitable for cemented carbide rotary drilling, screw drilling, pneumatic dive hammer drilling, pneumatic dive hammer pipe drilling, rotary jet ( swing jet, fixed jet ) engineering construction, and other drilling methods. The equipment can be widely used in engineering fields such as tunnel pipe roof support, rock and soil anchoring, blasting holes, embankment reinforcement, ground source heat pump holes, hydrological wells, pile construction, and geological disaster management.

Note: The user can choose diesel engine power, electric motor power, or diesel engine power/motor dual power.

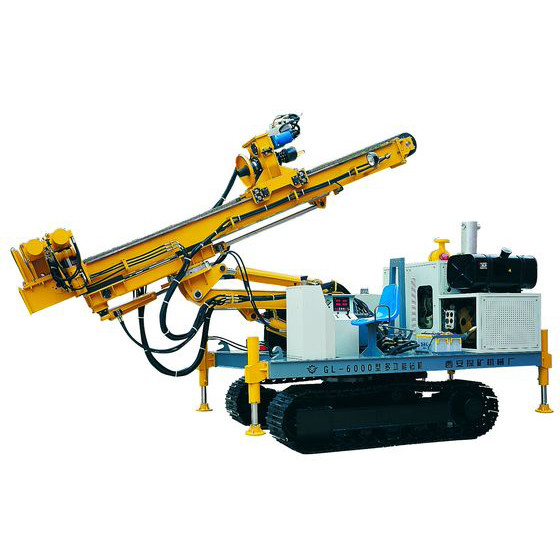

GL-6000S Multifunctional Engineering Drilling Rig 2

Optional Parts:

1. GL-6000S Multifunctional Engineering Drilling Rig can be equipped with high power and high flow XTB series foundation strengthening pump and automatic mixer.

2. Wireless transmission and diesel power units are optional to monitor and control the equipment on the drilling rig.

3. The drilling rig is also suitable for carbide rotary drilling, screw drilling, pneumatic submersible hammer drilling, pneumatic submersible hammer drilling with pipe, rotary jet (pendulum jet, fixed jet), and other multifunctional types.

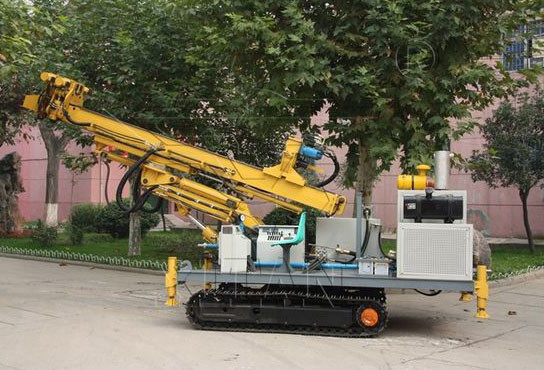

GL-6000S Multifunctional Engineering Drilling Rig 3



Construction Scope of Drilling Rig:

1. Suitable for high-speed drilling in soil, sand, and other strata, mud slag discharge; three-wing drill bit, or horseshoe-shaped drill bit drilling.

2. Air down-the-hole hammer drilling and air slag discharge in rock formations and broken layers.

3. Hole bottom hydraulic hammer drilling and mud discharge slag in broken layer, sand egg layer, etc.

4. Drill robe or rob and casing combined drilling.

6. Meet single-tube, double-tube, or triple-tube jet grouting drilling and swing or fixed jet grouting technique requirements, (customer optional).

7. Equipment with the high-pressure grouting pump, mud mixer, rotary or swing jet drilling tool, deflector, nozzle, three-wing drill bit, horseshoe-shape drill bit, and PDC drill bit from Xi Tan Equipment Company.

8. Reducing joints are good for seamlessly connecting with domestic and foreign drilling tools.



Technical Data:

Mode GL6000S
Motor Motor 55kW Diesel 56kW
Weight 7.9t
Size 5600mm×2000mm×2930mm
Speed High 5.06 km/h Low 2.6km/h
Climbing Capacity 20°
Diameter Pile
Max Diameter Max 2.2m
Max Depth 200m
Power Head
Feeding Stroke 3m
Feeding Force 58kN
Rotation Speed Low 8~50.6r/min
High 16~101r/min
Lifting Power 110kN
Torque 3000N.m~6000N.m
Borehole
Depth 50~200m
Diameter 110~400mm
Drill pipe (diameter x length) 60~89×2500mm
Horizontal Hole Height High 3450mm Low 338mm
Column
Sliding Stroke 1200mm
Pitch Angle 120°
Swing Angle 0°~90°
Drill Arm Pitching Angle Elevation angle 35°

Pitch Angle

16°

Hydraulic System
Rated Flow Main Pump 100L/min
Sub-pump 30L/min 15L/min
Rated Pressure Main Pump 21MPa
Sub-pump 18MPa



Product Packing:

GL-6000S Multifunctional Engineering Drilling Rig 4

Company Profile:

Shannxi Xitan Geological Equipment Co., Ltd was established in 1958 as a specialized drilling rig manufacturer for more than 60 years. High-pressure jet grouting rigs, multifunctional engineering drilling rigs, anchor drilling rigs, and environmental drill rigs are our featured products with advanced technology, and other grouting equipment such as grouting pumps, and auto grout mixing stations are low energy consumption, environmental protection, and cost-effective. We are a High-pressure Jet Grouting Engineering Technology Center and National High-tec Enterprise in ancient City-Xi'an. The factory area is 23,000 m2. 300 million yuan production capacity per year can be reached. 150 million yuan has been invested in production line building and technological innovation.

GL-6000S Multifunctional Engineering Drilling Rig 5GL-6000S Multifunctional Engineering Drilling Rig 6

Factory Show:

GL-6000S Multifunctional Engineering Drilling Rig 7

RFQ:

1. Are you the manufacturer?

Ans: Yes, we are a factory with more than 60years of manufacturing experience.



2. What are your terms of payment?

Ans: 50% deposit prepaid by T/T, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.



3. How about your delivery time?

Ans: Common drilling rig have in stock, could delivery in one week after get your full payment.

Customize drilling rig will take 15-45 days after receiving your advance payment. The specific delivery depends on the items and the quantity of your order.



4. What is the warranty of our machine?

Ans: Our main machine enjoys one year warranty. But unreasonable operation and wearing parts exclude.



5. Do you test all your goods before delivery?

Ans: Yes, we have 100% test before delivery. And we will attach our inspection report for every machine.



6. Do you have after-service?
Ans: Yes, we have a special after-sales service team that will supply you with professional guidance. And we provide videos for machine installation and operation.

If you need, we can send our engineers to your worksite and provide the training for your staff.
