GL-6000S Multipurpose Concrete Full Hydraulic Jet Grouting Engineering Drill Rig
1set
MOQ
Negotiation
Price
GL-6000S Multipurpose Concrete Full Hydraulic Jet Grouting Engineering Drill Rig
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: XiTan Equipment
Certification: CE; ISO9001:2015
Model Number: GL-6000S
Payment & Shipping Terms
Packaging Details: Container
Delivery Time: 7-120 days
Payment Terms: T/T
Supply Ability: 200 set/year
Specifications
Product Name: Jet Grouting Rig
Type: Crawler, Rotary, Jet Grouting
Condition: New
Power Type: Electric/Diesel
Dimension(L*W*H): 5.6m×2m×2.93m
Drill Diameter (mm): 110-400 Mm
Drill Depth (m):: 50-200 M
Drilling Angle:: 360
Applicable Industries: Construction Works,ground Improvement
Pile Diameter: 2.2 M
Supplier: Manufacture
Voltage: As Requirement
Product Description

GL-6000S Multipurpose Concrete Full Hydraulic Jet Grouting Engineering Drill Rig





Application:

It can be appropriate for carbide bits drilling, rotation drilling, auger drilling, pneumatic DTH hammer drilling, and following-up casing drilling. Besides, extensional functions such as rotary jet grouting, swivel jet grouting, or fixed jet grouting drilling techniques can be done as well; This engineering driller can be applied in tunnels Pipe shed support, rock and soil anchoring, blasting holes, embankments, and dam reinforcement, drilling hole for geothermal energy, hydrological wells, foundation pile construction and geological disaster treatment and other engineering fields.

Note: The user can choose diesel engine power, electric motor power, or diesel engine power/motor dual power.



Main Features:

1. Multi-directional luffing mechanism, the drilling rig can perform multi-row and multi-angle drilling in one position.

2. Large rotating torque and long feed stroke, drilling efficiency is improved.

3. The crawler has a self-propelled function, equipped with a frame rotation device, which is convenient and fast for moving and accurate hole alignment.

4. Equipped with hydraulic clamp and shackle device to shorten installing and replacing time and reduce labor intensity.

5. Imported main components of the hydraulic system are stable, reliable, and long service life.

6. The power head adopts hydromechanical variable transmission. When equipped with different power heads, it meets the requirements of different drilling techniques.

7. With the direct-acting load feedback and fine-tuning variable hydraulic system, the power changes with the load, high efficiency, and low energy consumption.

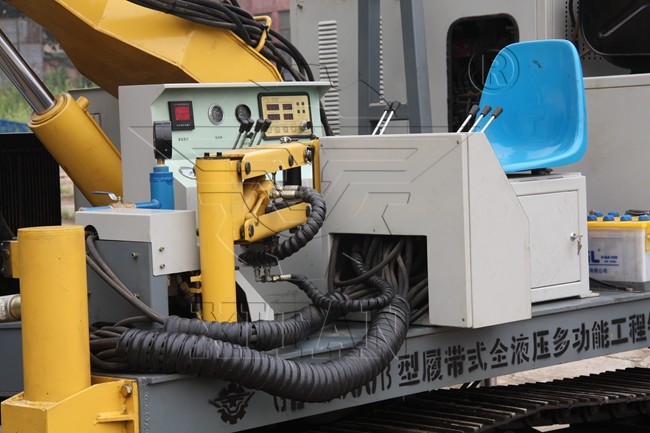

8. Equipped with a display device that shows power head rotation speed, lifting speed and perpendicularity column, fast and accurate hole positioning.

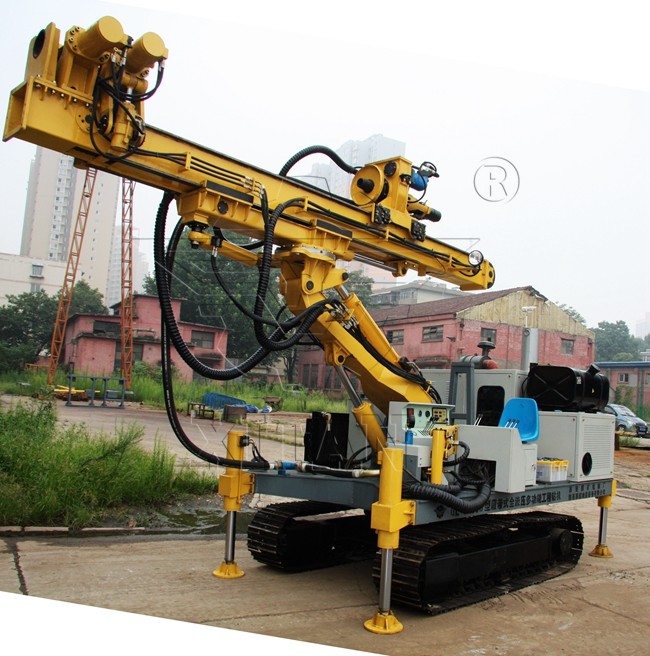

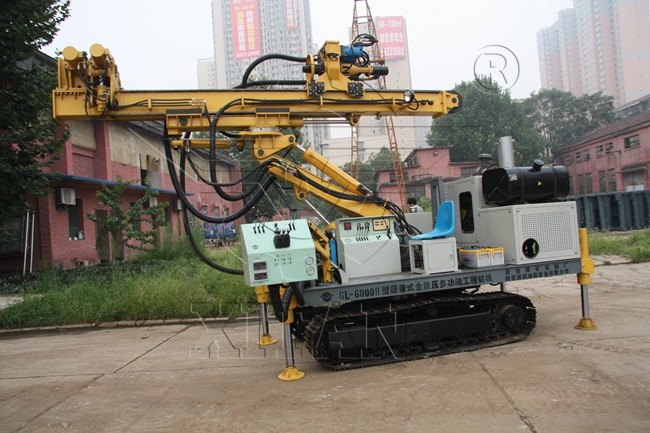

GL-6000S Multipurpose Concrete Full Hydraulic Jet Grouting Engineering Drill Rig 0GL-6000S Multipurpose Concrete Full Hydraulic Jet Grouting Engineering Drill Rig 1GL-6000S Multipurpose Concrete Full Hydraulic Jet Grouting Engineering Drill Rig 2GL-6000S Multipurpose Concrete Full Hydraulic Jet Grouting Engineering Drill Rig 3GL-6000S Multipurpose Concrete Full Hydraulic Jet Grouting Engineering Drill Rig 4





Construction Scope of Drilling Rig:

1. Suitable for high-speed drilling in soil, sand, and other strata, mud slag discharge; three-wing drill bit, or horseshoe-shaped drill bit drilling.

2. Air down-the-hole hammer drilling and air slag discharge in rock formations and broken layers.

3. Hole bottom hydraulic hammer drilling and mud discharge slag in broken layer, sand egg layer, etc.

4. Drill robe or rob and casing combined drilling.

6. Meet single-tube, double-tube, triple-tube jet grouting drilling, and swing or fixed jet grouting technique requirements, (customer optional).

7. Equipment with the high-pressure grouting pump, mud mixer, rotary or swing jet drilling tool, deflector, nozzle, three-wing drill bit, horseshoe-shape drill bit, and PDC drill bit of Xi Tan Equipment Company.

8. Reducing joints is good for seamlessly connecting with domestic and foreign drilling tools.



GL-6000S Multipurpose Concrete Full Hydraulic Jet Grouting Engineering Drill Rig 5





Technical Data:

Mode GL6000S
Motor Motor 55kW Diesel 56kW
Weight 7.9t
Size 5600mm×2000mm×2930mm
Speed High 5.06 km/h Low 2.6km/h
Climbing Capacity 20°
Diameter Pile
Max Diameter Max 2.2m
Max Depth 200m
Power Head
Feeding Stroke 3m
Feeding Force 58kN
Rotation Speed Low 8~50.6r/min
High 16~101r/min
Lifting Power 110kN
Torque 3000N.m~6000N.m
Borehole
Depth 50~200m
Diameter 110~400mm
Drill pipe (diameter x length) 60~89×2500mm
Horizontal Hole Height High 3450mm Low 338mm
Column
Sliding Stroke 1200mm
Pitch Angle 120°
Swing Angle 0°~90°
Drill Arm Pitching Angle Elevation angle 35°

Pitch Angle

16°

Hydraulic System
Rated Flow Main Pump 100L/min
Sub-pump 30L/min 15L/min
Rated Pressure Main Pump 21MPa
Sub-pump 18MPa





GL-6000S Multipurpose Concrete Full Hydraulic Jet Grouting Engineering Drill Rig 6
