GM-6A Crawler Soil Nailing Anchoring Engineering Drilling Rig
1set
MOQ
Negotiation
Price
GM-6A Crawler Soil Nailing Anchoring Engineering Drilling Rig
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: XiTan Equipment
Certification: CE; ISO9001:2015
Model Number: GM-6A
Payment & Shipping Terms
Packaging Details: Nude Package in 20GP Container
Delivery Time: 7-120 days
Payment Terms: T/T
Supply Ability: 200 set/year
Specifications
Condition: New
Drill Hole Diameter: Φ50-Φ200 Mm
Drill Hole Depth: 50-200 M
Bit Type: Diamond
Voltage: As Yours
After-Sales Service Provided: Engineers Available To Service Machinery Overseas
Product Description

GM-6A Crawler Soil Nailing Anchoring Engineering Drilling Rig

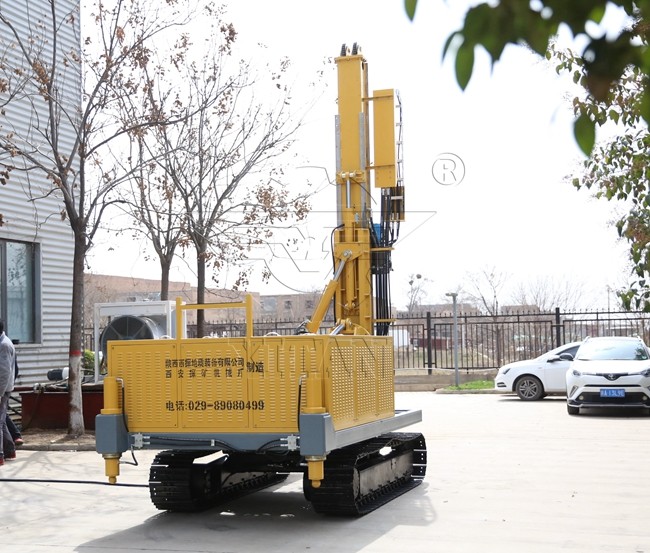

GM-6A Crawler Soil Nailing Anchoring Engineering Drilling Rig 0



Construction Features:

1, optional with the special drill pipe drilling tools (drill pipe, casing, eccentric drill, etc.), in the unstable formation casing wall openings, the conventional ball-bit drill hole. High drilling efficiency, good hole quality.

2, the drilling rig is mainly suitable for deep foundation pit anchor support, but also through the rotary spray module replacement, so that the drilling rig can be rotary jet spray construction. In addition, the machine also has a strong performance in the construction of geothermal holes, precipitation wells, micro-steel pipe piles, and micro-pouring piles.

3, In addition to crawler chassis crawler, gripping and unloading buckle and turntable, we also provide users with spin-jet module and other options, the user when ordering rig overlay matching, so that our rig is more suitable for your project.

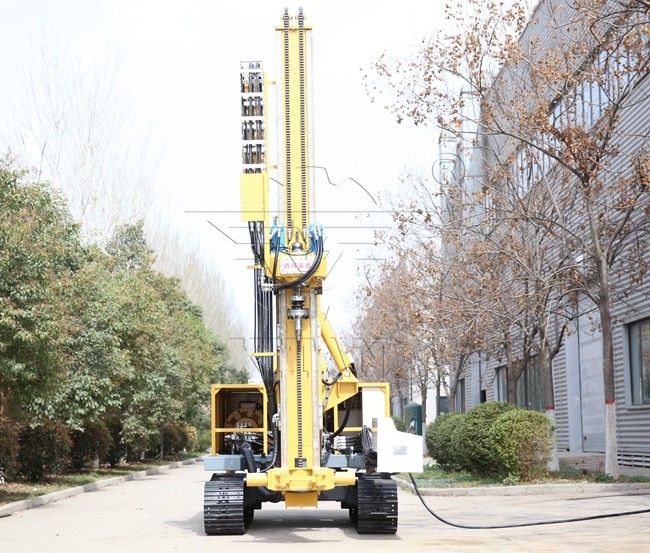

GM-6A Crawler Soil Nailing Anchoring Engineering Drilling Rig 1

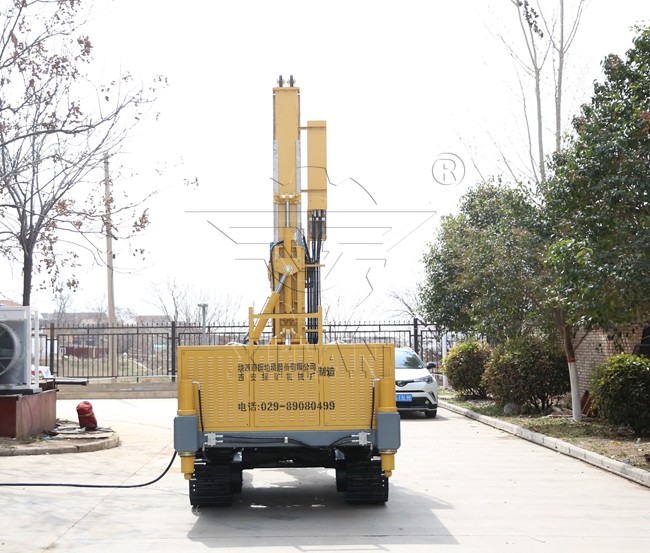

GM-6A Crawler Soil Nailing Anchoring Engineering Drilling Rig 2





Technical Data:

Mode GM-6A
Motor Motor 55kW Diesel 55kW
Weight 7.5t
Size 5000mm×2200mm×2300mm
Speed 1.5km/h
Climbing Capacity 20°
Diameter Pile
Max Diameter Max 2.2m
Max Depth 200m
Power Head
Feeding Stroke 3.4m
Feeding Force 35kN
Rotation Speed Low 0—60r/min
High 0-120r/min
Lifting Power 65KN
Torque 4000N.m-8000N.m
Borehole
Depth 50~200m
Diameter Φ50-Φ200mm
Drill pipe (diameter x length) (Φ50,Φ89)x3000mm
Horizontal Hole Height High 3100mm Low 2100mm
Column
Sliding Stroke 900mm
Pitch Angle 90°~ -10°
Swing Angle ±2
