XL-3 Crawler Hydraulic Multi-function Jet Grouting Drilling Rig
1set
MOQ
Negotiation
Price
XL-3 Crawler Hydraulic Multi-function Jet Grouting Drilling Rig
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: XiTan Equipment
Certification: CE; ISO9001:2015
Model Number: XL-3
Payment & Shipping Terms
Packaging Details: Container
Delivery Time: 7-120 days
Payment Terms: T/T
Supply Ability: 200 pieces/year
Specifications
Condition: New
Drill Hole Diameter: 100mm-200mm
Drill Hole Depth: 75m
Pile Diameter: 0.6-0.8m
Drilling Way: Rotary
X Type: Crawler
Product Description

XL-3 Crawler Hydraulic Multi-function Jet Grouting Drilling Rig



Description:

XL-3 crawler-type full-hydraulic multifunction jet grouting drilling rig is suitable for different requirements such as high-pressure jet grouting, jet grouting anchor cable, rock bolt supporting, single-tube, double-tube, and triple-tube spraying (swing spraying, fixed spraying, intermittent lifting), spraying anchor rope. And it is also applied to cemented carbide rotary drilling, screw drilling, pneumatic down-the-hole hammer drilling, pneumatic (DTH) hammer drilling with simultaneous casing tool (following pipe), engineering exploration, and other drilling techniques.



Application:

Applicable to different construction the railways, highways, bridges, dam foundations, and various industrial and civil building foundation treatment and reinforcement of jet grouting construction; Anchorage engineering of foundation pit support; Matching with air compressor and pneumatic DTH hammer, it can be used for pipe drilling, general rotary spraying (swing spraying, fixed spraying) engineering construction, but also for shallow hole drilling, engineering survey drilling, and other engineering construction.

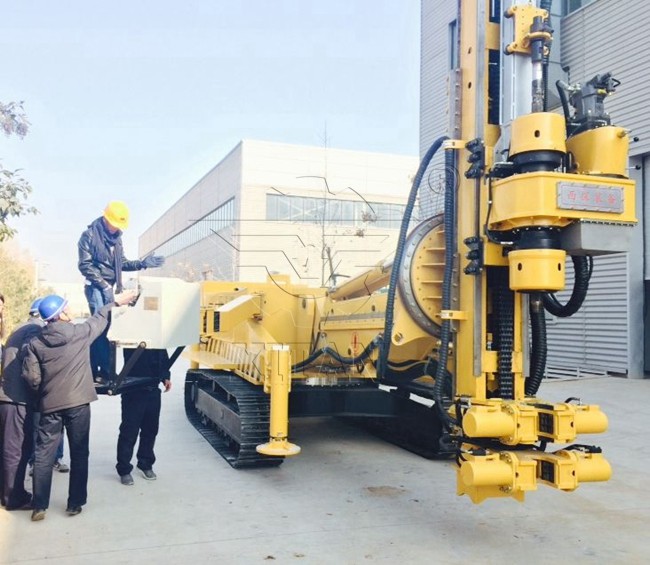

XL-3 Crawler Hydraulic Multi-function Jet Grouting Drilling Rig 0

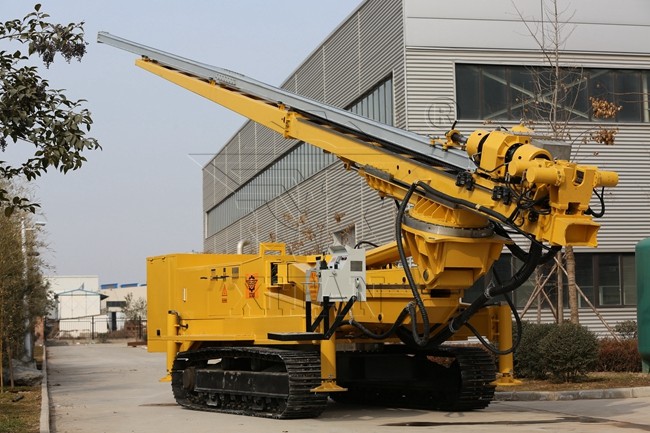

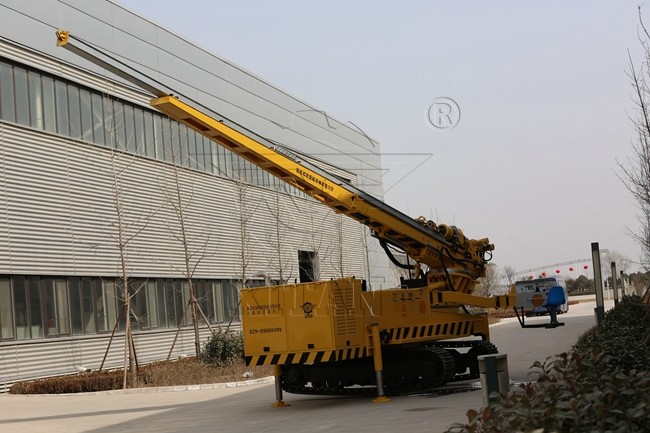

XL-3 Crawler Hydraulic Multi-function Jet Grouting Drilling Rig 1XL-3 Crawler Hydraulic Multi-function Jet Grouting Drilling Rig 2

XL-3 Crawler Hydraulic Multi-function Jet Grouting Drilling Rig 3

XL-3 Crawler Hydraulic Multi-function Jet Grouting Drilling Rig 4

XL-3 Crawler Hydraulic Multi-function Jet Grouting Drilling Rig 5





Technical Data:

Mode XL-3
Diesel Engine brand: Cummins model No.:4BTA3.9-C125
electric power: 93kw speed:2200 r/mp
Weight 26t
Size Working (mm) 9000×2800×19000
Transmission (mm) 8600×2800×3200
Speed 1km/h
Climbing Capacity 15°
Power Head
Stroke 4m
Diameter Ф94mm
Feeding Force 35kN
Rapid Lifting 0~8/0~11.8 m/min
Lifting/Pressurizing Speed of Power Head accurate speed adjustment of rotary jet:0.06~0.8/1.6 m/min
Gear Control Rotate Speed Maximum Torque
1 0~32r/min 13215Nm
2 0~132r/min 3199Nm
3 0~252r/min 1681Nm
4 0~500r/min 946Nm
Rated Lifting Force 120kN
Added Pressure 60kN
Column
Stretch 800m
Drill Tower Telescopic Distance 1500mm
Drilling Rig Height 14m
Mast Height 12m
Rob Length 16m
Main Swing Machine Swing Amplitude -18°~18°
Rig Swing Amplitude -90°~90°
Rotation Range of Rig Frame 360°(hydraulic drive)
Hydraulic Chuck spring clamp, hydraulic open
