Jet Grouting 380V Engineering Drilling Rig 2800mm Width
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: XiTan Equipment
Certification: CE; ISO9001:2015
Model Number: XPS-15
High Light:

380V Engineering Drilling Rig

,

engineering drilling rig 2800mm

,

Engineering grouting rig

Payment & Shipping Terms
Packaging Details: Container
Delivery Time: 7-120 days
Payment Terms: T/T
Supply Ability: 200 pieces/year
Specifications
Product Name: Jet Grouting Rig
Drilling Depth: 0-75m
Pile Diameter: 0.6-0.8m
Drilling Way: Rotary Drilling
Type: Crawler
Power Type: Electric/Diesel
Applicable Industries: Construction Works,Tunneling
Condition: New
Product Description

XPS-15 Jet Grouting 380V Engineering Drilling Rig 2800mm Width



Introduction:

The XPS-15 Jet Grouting 380V Engineering Drilling Rig 2800mm Width is special equipment for advanced pre-supporting when encountering aeolian sand and other weak layers during tunnel construction. Through the jet grouting technique, a closed waterproof and sand-fixed jet-grouted pile curtain are formed before the tunnel excavation. The drilling rig can also be equipped with different drilling tools for slope disaster treatment and bolting.



Features:

1. Walking system: steel track, with a width of 2800mm, a chain plate width of 600mm, and a driving speed of 1-1.4Km/h. The walking is driven by a hydraulic motor, which is suitable for construction under complex ground conditions.

2. Power system: 110KW electric motor can be started by 183KW DEUTZ diesel generator or powered by 380 AC

3. Hydraulic system: using hydraulic components from world-renowned brands such as REXROTH, brevini, EATON, and advanced technologies such as load-sensitive control system, electro-hydraulic proportional control, etc., making the operation simple, efficient, and reliable.

4. Operating system: equipped with a wireless remote control operator, which can remotely control. The master operational console is equipped with a display that can show drilling depth, mast angle, rotation speed, feed and return speed, hydraulic system pressure, etc.

5. Electrical control system: adopts PLC centralized control, with fault alarm and other functions, safe and reliable.

6. Equipped with a foldable arm work trolley, manned space, operate the orifice expediently.

7. Structural parts: Frame slewing mechanism, dual-arm supporting, and mast are integrated into the compact structure. Dual-arm supporting is two-grade lifting, stable supporting, avoiding drift during deep hole operation. The first grade with a turning machanism can rotary ±120°. It can achieve multi-hole operation in the same working plane for improving work efficiency. The mast is composed of three sections, both ends are foldable for easy transportation. The power head has a four-grade speed change, wide speed range, and large torque. (Optional hydraulic impact power head)

The stroke of the power head is 14m, and the length of the drill rod is 15m. It can drill a hole and jet-grouted pile in one go. Feeding and pulling back by hoist; the gripper supporting drill rods and shackles, the labor intensity is reduced. The front end of the rear gripper is equipped with a pull-back cylinder. The stroke of it is 600mm and the pulling back force is 15.7 tons. When the drill is stuck, the winch can pull back forcibly.

8. Equipped with a centralizer to reduce the swing of the drill rod during drilling, the drilling is stable and reliable.

9. Jet grouting tools: 76 single-tube jet grouting, 89 double-tube jet grouting drill pipe accessories.

10. If equipped with different drilling tools, it can perform anchor rods, down-the-hole, rock drilling, and others.

11. Paired with XTB series high-pressure grouting pump with large dynamic rate and large flow and automatic mixer.



Technical Data:

Mode XPS-15

Rotation Speed of Power Head (r/min

0)

First gear Second gear Third gear Fourth gear
0~30 30~65 65~138 138~269
Mast Pitch Angle (°) 15
Mast Swing Angle (°) -5~5
Upper Arm Rotation Angle (°) -120~120
Stroke (m) 14
Torque (Nm) Max 17000(Rotary power head)
Max. Winch Feed Force (KN) 75
Max. Winch Drag Force (KN) 75
Working Height (m) Max 8.8
Rotation Radius (m) Max 4.7/Min 2.7
Motor 110KW electric motors(equipped with 183Kw DEUTZ diesel generator set)
Size (mm) 13500×2800×3430
Weight (T) 50

Construction Application:

1. Pipe roof support

2. Tunneling construction

3. Anchoring

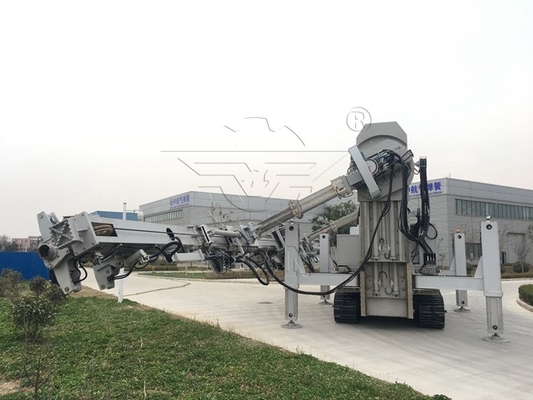

Jet Grouting 380V Engineering Drilling Rig 2800mm Width 0

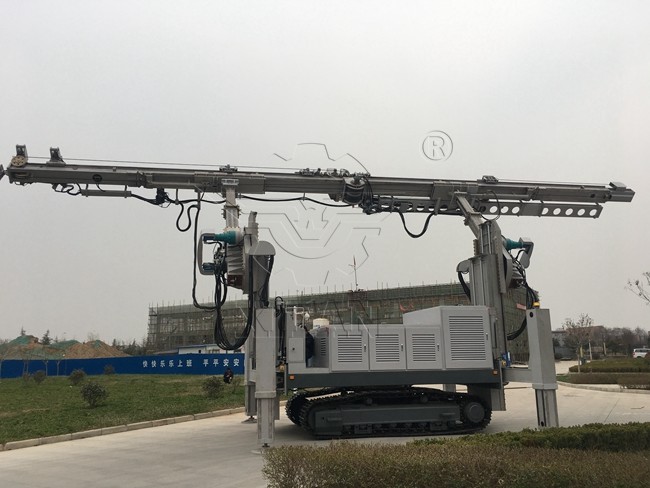

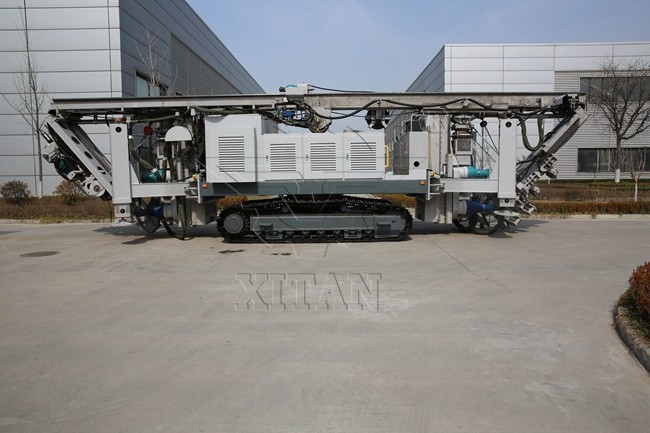

Jet Grouting 380V Engineering Drilling Rig 2800mm Width 1                                                                  Jet Grouting 380V Engineering Drilling Rig 2800mm Width 2

Jet Grouting 380V Engineering Drilling Rig 2800mm Width 3

Jet Grouting 380V Engineering Drilling Rig 2800mm Width 4
