DGZ-150B Jet Grouting Drilling Machine with Crawler for Exploration
1set
MOQ
Negotiation
Price
DGZ-150B Jet Grouting Drilling Machine with Crawler for Exploration
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: XiTan Equipment
Certification: CE; ISO9001:2015
Model Number: DGZ-150B
Payment & Shipping Terms
Packaging Details: Container
Delivery Time: 7-120 days
Payment Terms: T/T, Western Union
Supply Ability: 200 set/year
Specifications
Product Name: Jet Grouting Rig
Type: Stepping, Rotary, Jet Grouting
Condition: New
Power Type: Electric/Diesel
Dimension(L*W*H): 2750×2010×2800
Drill Diameter (mm): 142-150 Mm
Drill Depth (m):: 100 M
Drilling Angle: 360
Applicable Industries: Construction Works,ground Improvement
Pile Diameter: 4 M
Supplier: Manufacture
Voltage: As Requirement
Product Description

DGZ-150B Jet Grouting Drilling Machine with Crawler for Exploration





Introduction:

With a drill diameter of 142mm, the DGZ-150B drilling rig is appropriate for DG multi-tube rotary grouting construction. Hydraulic control systems that are load-sensitive and independently created electronic control systems are used.

The structure's small size makes relocating it simple. It has a monitoring system installed. Mud volume, air volume, ground pressure, rotation speed, lifting speed, lifting and stopping distance, and wing angle are all displayed on the driller control board.

It can be built using vertical technology like full rotation and swing jet grouting, and it is applied to different soil textures.



Technical Data:

Mode DGZ-150B
Motor (45+11)KW
Weight 9t
Sub-tower Height 2m--4m
Chassis Form Stepping
Column Form Vertical fixed
Diameter Pile
Max Diameter Max 4m
Max Depth 100m
Power Head
Feeding Stroke 1 m
Rotation Speed Low 0-24r/min
High 0-48r/min
Lifting Power 10t
Torque Max 12Kn·m
Lifting Speed Max 4 m/min
Through-hole 150 mm hydraulic chucks


Application:

(1) Reinforcement foundations and cut-off water in gravel, sand, and cohesive soil.

(2) Used in a complex construction environment.

(3) Reinforcing the cut-off curtain at the circumscribed joint of an ultra-deep underground continuous wall.

(4) Fracture grouting for damaged cut-off curtains.

(5) Stabilization treatment of the foundations of bridges, shields, subways, pipelines, and other buildings.



Main Features:

1. Operation is made simple by the drill rig's small size, electric control, and hydraulic control.

2. Direct-acting load feedback variable hydraulic system: High efficiency and low energy usage.

3. A two-speed hydraulic motor with a constant rotation speed and lots of torque is used in the power head. The through-hole spindle load that rob can move quickly may fulfill the needs of the DG multi-tube in construction. The minimum rotation speed is 0.35r/min, which significantly improves the quality of the grouting pile.

4. By looking at the screen that displays the column's verticality and the frame's horizontality, you may quickly and accurately locate the hole.

5. Lower the level of effort required to mount and demount the auxiliary tower and winding engine.

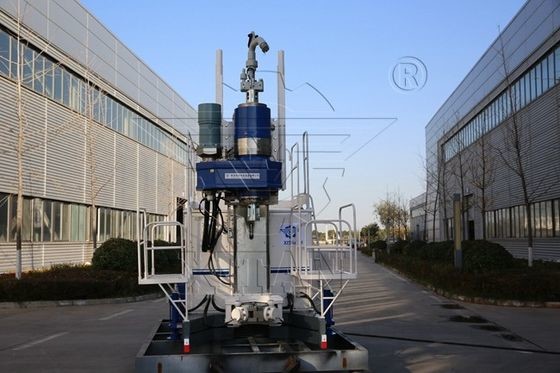

DGZ-150B Jet Grouting Drilling Machine with Crawler for Exploration 0

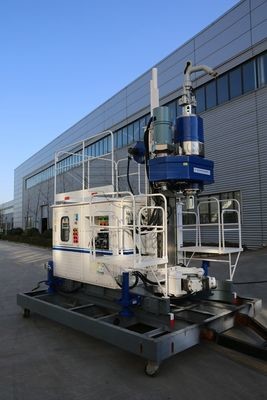

DGZ-150B Jet Grouting Drilling Machine with Crawler for Exploration 1

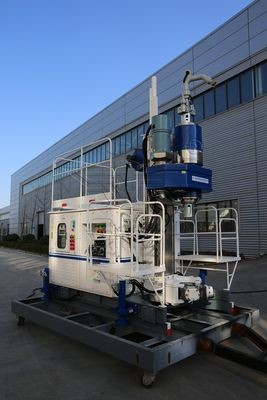

DGZ-150B Jet Grouting Drilling Machine with Crawler for Exploration 2

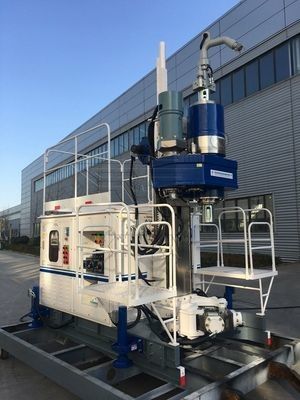

DGZ-150B Jet Grouting Drilling Machine with Crawler for Exploration 3

DGZ-150B Jet Grouting Drilling Machine with Crawler for Exploration 4
