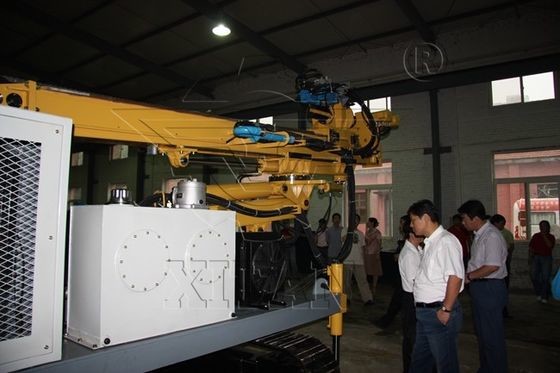

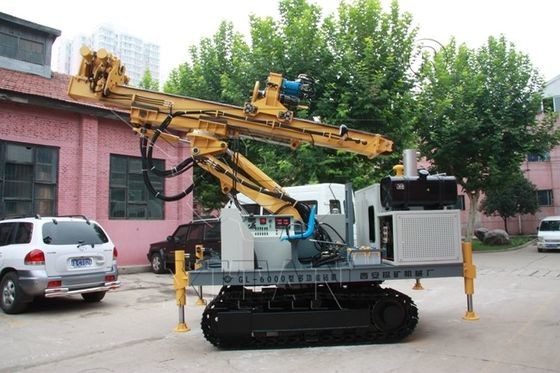

50-200m Depth High-Performance Construction Drilling Rig
Features of 50-200m Depth High-Performance Construction Drilling Rig:
1. The drilling rig's multi-directional luffing system allows it to drill in many rows and at multiple angles from the same location.
2. Long feed strokes and high rotating torque increase drilling efficiency.
3. The crawler features a self-propelled feature and a frame rotation gear, which makes it easy to move and quickly aligns holes accurately.
4. A hydraulic clamp and shackle mechanism that reduces work effort and speeds up installation and replacement.
5. The hydraulic system's primary imported components have a steady, dependable, and lengthy lifespan.
6. A hydromechanical variable transmission is used by the power head. It complies with the needs of various drilling processes when outfitted with various power heads.
Note: The user can choose diesel engine power, electric motor power, or diesel engine power/motor dual power.
|Motor||Motor 55kW||Diesel 56kW|
|Speed||High 5.06 km/h||Low 2.6km/h|
|Max Diameter||Max 2.2m|
|Rotation Speed||Low 8～50.6r/min|
|Drill pipe (diameter x length)||60～89×2500mm|
|Horizontal Hole Height||High 3450mm||Low 338mm|
|Drill Arm Pitching Angle||Elevation angle 35°||
|Rated Flow||Main Pump||100L/min|
|Rated Pressure||Main Pump||21MPa|
