High Quality Drilling Rig Manufacturers for Jet Grouting Drilling
1 set
MOQ
Negotiation
Price
High Quality Drilling Rig Manufacturers for Jet Grouting Drilling
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: XiTan Equipment
Certification: CE; ISO9001:2015
Model Number: DGZ-150L
Payment & Shipping Terms
Packaging Details: Container
Delivery Time: 7-120 days
Payment Terms: T/T
Supply Ability: 200 set/year
Specifications
Product Name: DGZ-150L Jet Grouting Rig
Motor: (45+18.5) KW
Weight: 12 T
Diameter Pile: 4 M
Drilling Depth: 100 M
Torque: 12Kn·m
Product Description

High Quality Drilling Rig Manufacturers for Jet Grouting Drilling



Description:

The High-Quality Drilling Rig Manufacturers for Jet Grouting Drilling is are suitable for DG multi-tube rotary grouting construction with a drill diameter of 142mm or less. A load-sensitive hydraulic control system and a self-developed electronic control system are built in. The main hydraulic parts are from an internationally famous supplier, which is stable and durable. The whole machine adopts a combination of hydraulic control and electric control, which is simple and flexible to operate, saving time. The compact structure design is easy to move. It is equipped with a monitoring system. It is on the driller control coard that shows mud volume, air volume, ground pressure, rotating speed, lifting speed, lifting and stepping distance, and wing angle. The instantaneous mud volume, cumulative mud volume, instantaneous grouting pressure, lifting speed, pressure in the bottom of the hole, air pressure, airflow, cutting water pressure, cutting water flow, etc.

It is applied to various soil textures and can be constructed by vertical technology such as full rotation and swing jet grouting.

Remark: It can be used for DG multi-tube after matching with drilling tools, a high-pressure pump, and a mixing system.



Feature:

1. Compact drill rig structure: combined with electric control and hydraulic control, it's convenient for operation.

2. High efficiency and low energy consumption by direct-acting load feedback variable hydraulic system.

3. Accurate control of rotary jet lifting speed and stepping distance.

4. The power head adopts a two-speed hydraulic motor with a stable rotation speed and large torque. The minimum rotation speed is 0.35 r/min, which effectively improves the quality of the grouting pile; the through-hole spindle load that rob can be moving fast, which can meet the requirements of the DG multi-tube.

5. Any direction grouting drilling and any special-shaped pile.

6. Quick and accurate hole positioning by viewing the screen showing the vertical of the column and the horizontal of the frame.

7. Stepping type drilling rig is flexible operation and easy moving.

8. Reduce the working intensity of installing and dismantling an auxiliary tower and winding engine.

9. Reasonable control system with PLC electronic control display, clear identification, and easy operation.

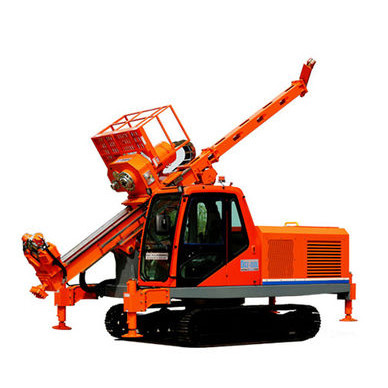

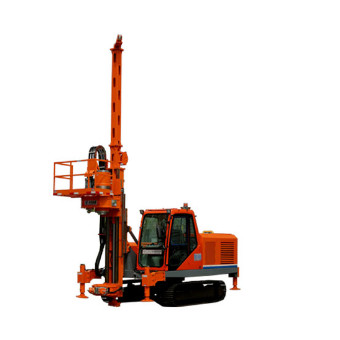

High Quality Drilling Rig Manufacturers for Jet Grouting Drilling 0High Quality Drilling Rig Manufacturers for Jet Grouting Drilling 1





Application:

1. Reinforcement foundations and cut-off water in gravel, sand, and cohesive soil.

2. Adopted in a complex construction environment.

3. Running in a narrow construction space.

4. Reinforcing the cut-off curtain at the circumscribed joint of an ultra-deep underground continuous wall.

5. Fracture grouting for damaged cut-off curtains.

6. Special-shaped grouted piles.

7. Stabilization treatment of the foundations of bridges, shields, subways, pipelines, and other buildings.

8Subfluvial layer strengthening.

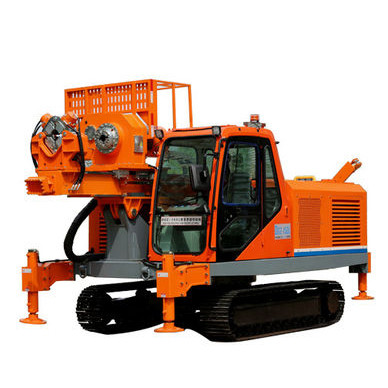

High Quality Drilling Rig Manufacturers for Jet Grouting Drilling 2

Optional Parts:

1. High-Quality Drilling Rig Manufacturers for Jet Grouting Drilling can be equipped with high power and high flow XTB series foundation strengthening pump and automatic mixer.

2. Wireless transmission is optional to monitor and control the equipment on the drilling rig, and the wireless transmission range is stable within a 200m-300m radius.

3. In addition, High-Quality Drilling Rig Manufacturers for Jet Grouting Drilling are also suitable for other processes.

High Quality Drilling Rig Manufacturers for Jet Grouting Drilling 3



Technical Data:

Mode DGZ-150L
Motor (45+18.5)KW
Weight 12t
Sub-tower Height 2m--4m
Chassis Form Crawler travel 360° rotation
Column Form 0–90° swing
Diameter Pile
Max Diameter Max 4m
Max Depth 100m
Power Head
Feeding Stroke 1.7m
Rotation Speed Low 0-24r/min
High 0-48r/min
Winch Capacity 12t
Torque Max 12Kn·m
Lifting Speed Max 6m/min
Through-hole 150mm hydraulic chucks
