XiTan Jet Grouting Crawler Engineering Drilling Rig
1 set
MOQ
Negotiation
Price
XiTan Jet Grouting Crawler Engineering Drilling Rig
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: XiTan Equipment
Certification: CE; ISO9001:2015
Model Number: XL-50L
Payment & Shipping Terms
Packaging Details: Container
Delivery Time: 7-120 days
Payment Terms: T/T
Supply Ability: 200 set/year
Specifications
Product Name: XL-50L Jet Grouting Rig
Stroke: 6.5 M
Weight: 5.75 T
Diameter Pile: 1.5 M
Drilling Depth: 50 M
Torque: 3000 N·m
Product Description

XiTan Jet Grouting Crawler Engineering Drilling Rig





Feature:

1. Adopt full hydraulic control and easy and flexible operation. Crawler chassis loading, easy and quick to walk and move into position. Long power head stroke, reducing auxiliary time;

2. Extra-long power head stroke, within 6.5m, no need to change the connecting drill pipe, prolong the life of drilling tools, and Reduce auxiliary personnel and auxiliary time;

3. Direct-acting load feedback fine-tuning variable hydraulic system, power varies with load, high efficiency, low energy consumption;

4. A special valve for friction positioning is used in rotary, and its characteristics fully meet the requirements of the rotary jet process;

5. The wide range of variable speeds of the power head can meet the requirements of various strata and different drilling processes;

6. With rotary bearing, hole position can be turned to track side when needed;

7. Compact structure, centralized operation, convenient and safe;

8. Equipped with vertical drill tower, power head rotation, and lifting speed display device;



Application:

It is suitable for the jet grouting construction of railroad, highway, bridge, dam foundations and various industrial and civil building foundation treatment and reinforcement; anchoring project of foundation pit support; with the air compressor and pneumatic submersible hammer supporting can follow the tube drilling, can carry out general rotary jet (swing jet, fixed jet) engineering construction, but also for shallow hole drilling and engineering survey drilling and other engineering construction.

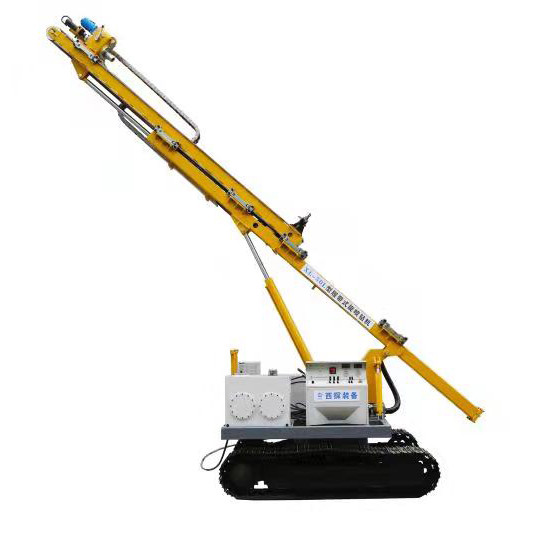

XiTan Jet Grouting Crawler Engineering Drilling Rig 0XiTan Jet Grouting Crawler Engineering Drilling Rig 1





Matching Drill Tools:

1. The single pipe drilling-spraying integration method, with a three-wing bit or one-shaped bit at the front end and Ф42 or Ф50 drill pipe; is suitable for high-speed drilling in soil and sand layers.

2. Rotary jet anchor cable method, with 65 lock bolt propeller and anchor drill pipe, suitable for anchor cable reinforcement.



Optional Parts:

1. XiTan Jet Grouting Crawler Engineering Drilling Rig is suitable for single, double, and triple pipe rotary jet, swing jet, fixed jet, and other methods.

2. XiTan Jet Grouting Crawler Engineering Drilling Rig can be used together with XTB series foundation strengthening pump and automatic mixer.

3. XiTan Jet Grouting Crawler Engineering Drilling Rig is combined with XiTian 5G intelligent cloud platform and diesel power unit.



Technical Data:

Mode XL-50L
Torque Max 3000 N·m
Weight 5.75t
Climbing Ability 30°
Speed 1km/h
Size Working(mm) 2880×1800×8145
Transportation(mm) 5770×1800×2352
Diameter Pile
Max Diameter 1.5m
Max Depth 50m
Power Head
Rotation Speed High 0—148r/min r/min Low 0—48r/min
Stroke 6.5m
Power Head Rated Lifting Force 30kN
Power Head Pressurization 12kN
Quick up-down 0~22/0~28 m/min
Borehole
Diameter Ф42mm Ф50mm Ф73mm
Angle Left and right ± 3° Tilt 10° forward and 90° back
Depth 50m
