200KW High Pressure Mud Pump for Building Settlement Treatment in Kyrgyzstan
1 set
MOQ
Negotiation
Price
200KW High Pressure Mud Pump for Building Settlement Treatment in Kyrgyzstan
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: XiTan Equipment
Certification: CE;
Model Number: XTB
Payment & Shipping Terms
Packaging Details: Container
Delivery Time: 7-120 days
Payment Terms: T/T
Supply Ability: 200 set/year
Specifications
Product Name: High Pressure Pump
Application: Conceret Construction
Weight : 3250Kg-7200Kg
Dimension: 2700X1800X1600mm-3726X2400X2100mm
Product Description

200KW High-Pressure Mud Pump for Building Settlement Treatment in Kyrgyzstan



Application:

High-pressure variable frequency grouting pump series products are applied in highway, railway, mine, port, national defense, and other fields of foundation reinforcement, building settlement treatment, foundation impermeable curtain, retaining cofferdam, slope anchorage, mine plugging, shaft wall, and other engineering construction.

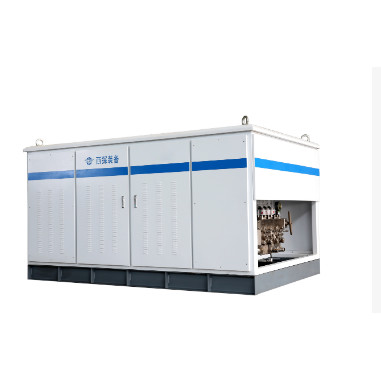

200KW High Pressure Mud Pump for Building Settlement Treatment in Kyrgyzstan 0



Feature of 200KW High-Pressure Mud Pump for Building Settlement Treatment in Kyrgyzstan:

1. Use of intelligent control technology, real-time display of instantaneous flow, pressure, and cumulative flow and printing.

2. The hydraulic end uses a plunger lubrication structure, the seal effectively extends the service life, easy and quick replacement of wearing parts, durable and anti-wear alloy valve seat, reducing the frequency of stopping and changing parts.

3. Adopt frequency converter speed control, eliminating the mechanical gearbox, clutch, and other multi-fault transmission parts, smaller size, compact structure, more reliable; smooth start-up operation, energy saving, no impact on the power grid.

4. The electrical control circuit is simple and reliable, through the simple operation panel, it can realize "foolproof" operation and display the basic operating parameters; it can set and display various operating parameters of the equipment.

5. With complete protection function, it can protect and control power loss, phase loss, over-voltage, under-voltage, over-current, torque, pump pressure, etc.

6. The whole adopts a container-type protection system (optional), which is environmentally friendly, simple, and easy to transport.

7. It can meet the technical requirements of single-pipe, double-pipe, and three-pipe rotary spray pile construction and other ultra-high pressure rotary spray construction methods.



Technical Data:

Model Name



XTB---2B/2B(A) XTB---2B/2B(A) XTB---180 XTB---220 XTB---280
  CGP114/500PL-90E CGP160/300PL-90E CGP150/500PL-132E CGP160/450PL-160E CGP250/450PL-200E
Plunger Diameter 45 mm 55 mm 60 mm 70 mm 85 mm
Plunger Stroke 120 mm 100 mm 100 mm 135 mm 152.4 mm
Maximum Grouting Flow 114 L/min 160 L/min 150 L/min 160 L/min 250 L/min
Maximum Pressure 50 MPa 30 MPa 50 MPa 45 MPa 45 MPa
Motor Power 90 kW 90 kW 132 kW 160 kW 200 kW
Inlet Diameter 50 mm 50 mm 50 mm 50 mm 50mm
Outlet Diameter 25 mm 25 mm 25 mm 25 mm 25mm
Total Weight 3250 Kg 3250 Kg 4600 Kg 5950Kg 7200Kg
Dimensions 2700X1800X1600 mm 2700X1800X1600 mm 3350X2226X1600 mm 3425X2300X1800 mm 3726X2400X2100 mm

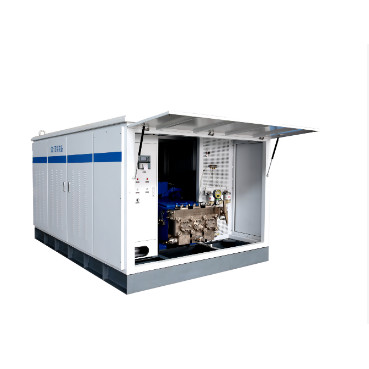

200KW High Pressure Mud Pump for Building Settlement Treatment in Kyrgyzstan 1



RFQ:

1. Are you the manufacturer?

Ans: Yes, we are a factory with more than 60years of manufacturing experience.



2. What are your terms of payment?

Ans: 50% deposit prepaid by T/T, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.



3. How about your delivery time?

Ans: Common drilling rig have in stock, could delivery in one week after get your full payment.

Customize drilling rig will take 15-45 days after receiving your advance payment. The specific delivery depends on the items and the quantity of your order.



4. What is the warranty of our machine?

Ans: Our main machine enjoys one year warranty. But unreasonable operation and wearing parts exclude.



5. Do you test all your goods before delivery?

Ans: Yes, we have 100% test before delivery. And we will attach our inspection report for every machine.



6. Do you have after-service?
Ans: Yes, we have a special after-sales service team that will supply you with professional guidance. And we provide videos for machine installation and operation.

If you need, we can send our engineers to your worksite and provide the training for your staff.
