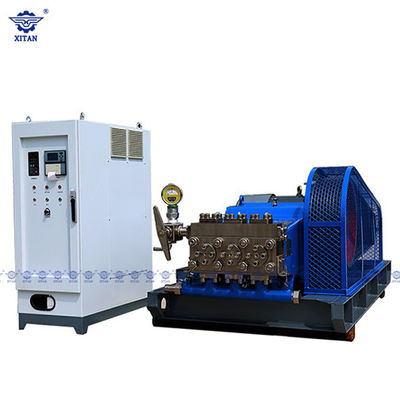

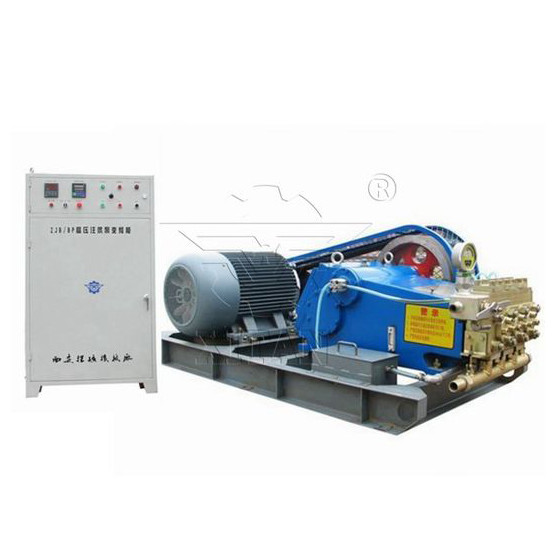

55Kw-132Kw High-Pressure Mud Pump for Engineering Construction Methods in Afghanistan
55Kw-132Kw High-Pressure Mud Pump for Engineering Construction Methods in Afghanistan products are suitable for the construction of foundation reinforcement, building settlement management, foundation seepage curtain, retaining cofferdam, slope anchoring, mine plugging, shaft wall protection, etc. in the fields of highway, railroad, mine, port, and national defense.
Feature of 55Kw-132Kw High-Pressure Mud Pump for Engineering Construction Methods in Afghanistan:
1. Use of intelligent control technology, real-time display of instantaneous flow, pressure, and cumulative flow and printing.
2. The hydraulic end uses a plunger lubrication structure, the seal effectively extends the service life, easy and quick replacement of wearing parts, durable and anti-wear alloy valve seat, reducing the frequency of stopping and changing parts.
3. Adopt frequency converter speed control, eliminating the mechanical gearbox, clutch, and other multi-fault transmission parts, smaller size, compact structure, more reliable; smooth start-up operation, energy saving, no impact on the power grid.
4. The electrical control circuit is simple and reliable, through the simple operation panel, it can realize "foolproof" operation and display the basic operating parameters; it can set and display various operating parameters of the equipment.
5. With complete protection function, it can protect and control power loss, phase loss, over-voltage, under-voltage, over-current, torque, pump pressure, etc.
6. The whole adopts a container-type protection system (optional), which is environmentally friendly, simple, and easy to transport.
7. 55Kw-132Kw High-Pressure Mud Pump for Engineering Construction Methods in Afghanistan can meet the technical requirements of single-pipe, double-pipe, and three-pipe rotary spray pile construction and other ultra-high pressure rotary spray construction methods.
|Model Name||ZJB/BP 55||ZJB/BP 55A||ZJB/BP 90||ZJB/BP 90A||ZJB/BP 132|
|Plunger Diameter||45 mm||55 mm||45 mm||55 mm||60 mm|
|Plunger Stroke||120 mm||120 mm||120 mm||120 mm||100 mm|
|Maximum Grouting Flow||
|Maximum Pressure||30 MPa||20 MPa||50 MPa||30 MPa||50 MPa|
|Motor Power||55 kW||55 kW||90 kW||90 kW||132 kW|
|Inlet Diameter||50 mm||50 mm||50 mm||50 mm||50mm|
|Outlet Diameter||25 mm||25 mm||25 mm||25 mm||25 mm|
|Total Weight||1450 Kg||1450 Kg||2200 Kg||2200 Kg||2900 Kg|
|Dimensions||2348X1056X826 mm||2348X1056X826 mm||2490X1196X915 mm||2490X1196X915 mm||2673X1546X1100 mm|
1. Are you the manufacturer?
Ans: Yes, we are a factory with more than 60years of manufacturing experience.
2. What are your terms of payment?
Ans: 50% deposit prepaid by T/T, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
3. How about your delivery time?
Ans: Common drilling rig have in stock, could delivery in one week after get your full payment.
Customize drilling rig will take 15-45 days after receiving your advance payment. The specific delivery depends on the items and the quantity of your order.
4. What is the warranty of our machine?
Ans: Our main machine enjoys one year warranty. But unreasonable operation and wearing parts exclude.
5. Do you test all your goods before delivery?
Ans: Yes, we have 100% test before delivery. And we will attach our inspection report for every machine.
6. Do you have after-service?
Ans: Yes, we have a special after-sales service team that will supply you with professional guidance. And we provide videos for machine installation and operation.
If you need, we can send our engineers to your worksite and provide the training for your staff.
