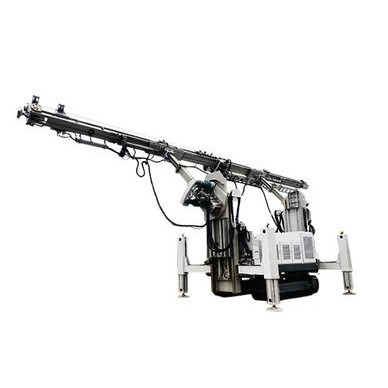

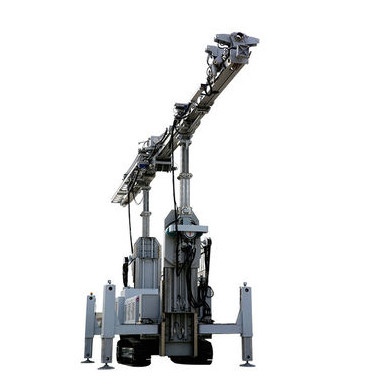

Best Price with 183Kw DEUTZ Diesel Generator Tunnel Horizontal Rotary Jet Drilling Rig in Kazakhstan
The Best Price with 183Kw In Kazakhstan, the DEUTZ Diesel Generator Tunnel Horizontal Rotary Jet Drilling Rig is a unique piece of machinery for enhanced pre-supporting when running into aeolian sand and other weak layers. Before tunnel excavation, a closed, watertight, and sand-fixed jet-grouted pile curtain is created using the jet grouting process. For the treatment of slope disasters and bolting, the drilling rig can also be fitted with various drilling instruments.
Feature of Best Price with 183Kw DEUTZ Diesel Generator Tunnel Horizontal Rotary Jet Drilling Rig in Kazakhstan:
1. Power system: 183KW DEUTZ diesel generator set and 110KW electric motor, the motor can be driven by 380V power supply and generator set respectively;
2. Walking system: steel track, track width 2800, chain board width 600, running speed 1-1.4 Km/h. Walking is driven by a hydraulic motor to complex ground construction;
3. Hydraulic system: Adopting hydraulic components of REXROTH, brevini, EATON, and other world-famous brands, adopting load-sensitive control system, electro-hydraulic proportional control, and other advanced technologies, making the operation simple, efficient, and reliable;
4. Electrical control system: PLC centralized control, with fault alarm and other functions, safe and reliable;
5. Operating system: equipped with a wireless remote control operator, which can realize remote control from a distance, the main operating console is equipped with a monitor, which can display parameters such as drilling depth, mast angle, rotation speed, feed and drag speed, system pressure, etc;
6. Structural components: frame rotary mechanism, double arm support mechanism, mast integration, compact structure; the double-arm support mechanism is two-stage lifting, and the support is stable to avoid drifting in deep hole operation. The first stage has a rotary mechanism, which can realize ±120°rotation, and can realize porous operation in the same working plane, which improves the work efficiency. The mast is composed of three sections, and both ends can be folded to facilitate transportation; power head four-speed, speed range, and large torque. ( Optional hydraulic impact head );
7. The stroke of the power head is 14m, and the length of the drill pipe is 15m, which can be drilled once and jetted into piles. Use a hoist for feeding and backhauling; the clamping device adds a drill pipe and release button to reduce labor intensity. The front end of the rear clamping device is equipped with a tractor return cylinder. The stroke of the tractor return cylinder is 600 mm and the drag force is 15.7 tons. When stuck drill, you can cooperate with the hoist back strong drag;
8. Equipped with foldable arm type work cart, convenient for the manned operation of the hole;
9. With a centralizer, the drill pipe swing is reduced during drilling, which makes the drilling smooth and reliable;
10. Rotary jet drilling tools: 76 single pipe rotary jet, 89 double pipe rotary jet drill pipe accessories;
11. Equipped with different drilling tools, it can perform anchor, downhole, rock drilling, and other operations;
12. Equipped with large dynamic rate and large flow rate XTB series foundation strengthening pump and automatic mixer;
The Best Price with 183Kw The DEUTZ Diesel Generator Tunnel Horizontal Rotary Jet Drilling Rig in Kazakhstan is a piece of specialized equipment for tunnel construction over-advance pre-support when encountering weak substrates like wind accumulation sand, through the rotary jet construction method, the formation of a closed rotary pile curtain before the tunnel excavation, and water and sand fixation. The Best Price with 183Kw The DEUTZ Diesel Generator Tunnel Horizontal Rotary Jet Drilling Rig can also be fitted with various drilling equipment for anchor rods, slope disaster management, and other tasks.
1. Best Price with 183Kw DEUTZ Diesel Generator Tunnel Horizontal Rotary Jet Drilling Rig in Kazakhstan is suitable for anchor, submerged hole, rock drilling, and other work methods.
2. Best Price with 183Kw DEUTZ Diesel Generator Tunnel Horizontal Rotary Jet Drilling Rig in Kazakhstan can be used with high power and high flow XTB series foundation strengthening pump and automatic mixer.
3. Best Price with 183Kw DEUTZ Diesel Generator Tunnel Horizontal Rotary Jet Drilling Rig in Kazakhstan can be seamlessly connected with domestic and foreign drilling tools through reducer joints.
Rotation Speed of Power Head (r/min
|First gear||Second gear||Third gear||Fourth gear|
|Mast Pitch Angle (°)||15|
|Mast Swing Angle (°)||-5～5|
|Upper Arm Rotation Angle (°)||-120～120|
|Torque (Nm)||Max 17000(Rotary power head)|
|Max. Winch Feed Force (KN)||75|
|Max. Winch Drag Force (KN)||75|
|Working Height (m)||Max 8.8|
|Rotation Radius (m)||Max 4.7/Min 2.7|
|Motor||110KW electric motors(equipped with 183Kw DEUTZ diesel generator set)|
1. Are you the manufacturer?
Ans: Yes, we are a factory with more than 60years of manufacturing experience.
2. What are your terms of payment?
Ans: 50% deposit prepaid by T/T, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
3. How about your delivery time?
Ans: In addition to the GY60/80 model anchor drilling rig, the common drilling rig in stock, could be delivered in one week after getting your full payment.
Customize drilling rig will take 15-45 days after receiving your advance payment. The specific delivery depends on the items and the quantity of your order.
4. What is the warranty of our machine?
Ans: Our main machine enjoys one year warranty. But unreasonable operation and wearing parts exclude.
5. Do you test all your goods before delivery?
Ans: Yes, we have 100% test before delivery. And we will attach our inspection report for every machine.
6. Do you have after-service?
Ans: Yes, we have a special after-sales service team that will supply you with professional guidance. And we provide videos for machine installation and operation.
If you need, we can send our engineers to your worksite and provide the training for your staff.
