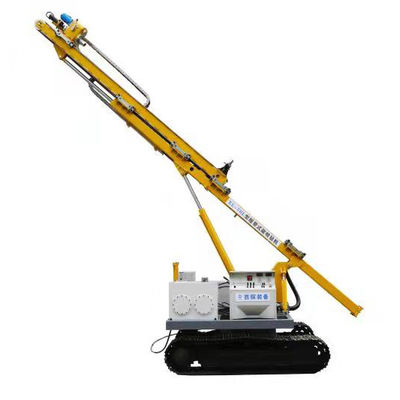

China Super Quality Jet Grouting Equipment with Rotary Bearing and Equipped with Vertical Drill Tower in Turkmenistan
Feature of China Super Quality Jet Grouting Equipment with Rotary Bearing and Equipped with Vertical Drill Tower in Turkmenistan:
1. Adopt full hydraulic control and easy and flexible operation. Crawler chassis loading, easy and quick to walk and move into position. Long power head stroke, reducing auxiliary time;
2. Extra-long power head stroke, within 6.5m, no need to change the connecting drill pipe, prolong the life of drilling tools, and Reduce auxiliary personnel and auxiliary time;
3. Direct-acting load feedback fine-tuning variable hydraulic system, power varies with load, high efficiency, low energy consumption;
4. A special valve for friction positioning is used in rotary, and crawler-type multi-pipe jet grouting drilling rig characteristics fully meet the requirements of the rotary jet process;
5. The wide range of variable speeds of the power head can meet the requirements of various strata and different drilling processes;
6. With rotary bearing, hole position can be turned to track side when needed;
7. Compact structure, centralized operation, convenient and safe;
8. Equipped with vertical drill tower, power head rotation, and lifting speed display device;
Application of China Super Quality Jet Grouting Equipment with Rotary Bearing and Equipped with Vertical Drill Tower in Turkmenistan:
China Super Quality Jet Grouting Equipment with Rotary Bearing and Equipped with Vertical Drill Tower in Turkmenistan is suitable for the jet grouting construction of railroad, highway, bridge, dam foundations, and various industrial and civil building foundation treatment and reinforcement; anchoring projects of foundation pit support; with the air compressor and pneumatic submersible hammer supporting can follow the tube drilling, can carry out general rotary jet (swing jet, fixed jet) engineering construction, but also for shallow hole drilling and engineering survey drilling and other engineering construction.
Matching Drill Tools:
1. The single pipe drilling-spraying integration method, with a three-wing bit or one-shaped bit at the front end and Ф42 or Ф50 drill pipe; is suitable for high-speed drilling in soil and sand layers.
2. Rotary jet anchor cable method, with 65 lock bolt propeller and anchor drill pipe, suitable for anchor cable reinforcement.
1. China Super Quality Jet Grouting Equipment with Rotary Bearing and Equipped with Vertical Drill Tower in Turkmenistan is suitable for single, double, and triple pipe rotary jet, swing jet, fixed jet, and other methods.
2. China Super Quality Jet Grouting Equipment with Rotary Bearing and Equipped with Vertical Drill Tower in Turkmenistan can be used together with XTB series foundation strengthening pump and automatic mixer.
3. China Super Quality Jet Grouting Equipment with Rotary Bearing and Equipped with Vertical Drill Tower in Turkmenistan is combined with XiTian 5G intelligent cloud platform and diesel power unit.
|Torque||Max 3000 N·m|
|Rotation Speed||High 0—148r/min r/min||Low 0—48r/min|
|Power Head Rated Lifting Force||30kN|
|Power Head Pressurization||12kN|
|Quick up-down||0～22/0～28 m/min|
|Angle||Left and right ± 3° Tilt 10° forward and 90° back|
Shannxi Xitan Geological Equipment Co., Ltd was established in 1958 as a specialized drilling rig manufacturer for more than 60 years. High-pressure jet grouting rigs, multifunctional engineering drilling rigs, anchor drilling rigs, and environmental drill rigs are our featured products with advanced technology, and other grouting equipment such as grouting pumps, and auto grout mixing stations are low energy consumption, environmental protection, and cost-effective. We are a High-pressure Jet Grouting Engineering Technology Center and National High-tec Enterprise in ancient City-Xi'an. The factory area is 23,000 m2. 300 million yuan production capacity per year can be reached. 150 million yuan has been invested in production line building and technological innovation.
1. Are you the manufacturer?
Ans: Yes, we are a factory with more than 60years of manufacturing experience.
2. What are your terms of payment?
Ans: 50% deposit prepaid by T/T, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
3. How about your delivery time?
Ans: Common drilling rig have in stock, could delivery in one week after get your full payment.
Customize drilling rig will take 15-45 days after receiving your advance payment. The specific delivery depends on the items and the quantity of your order.
4. What is the warranty of our machine?
Ans: Our main machine enjoys one year warranty. But unreasonable operation and wearing parts exclude.
5. Do you test all your goods before delivery?
Ans: Yes, we have 100% test before delivery. And we will attach our inspection report for every machine.
6. Do you have after-service?
Ans: Yes, we have a special after-sales service team that will supply you with professional guidance. And we provide videos for machine installation and operation.
If you need, we can send our engineers to your worksite and provide the training for your staff.
