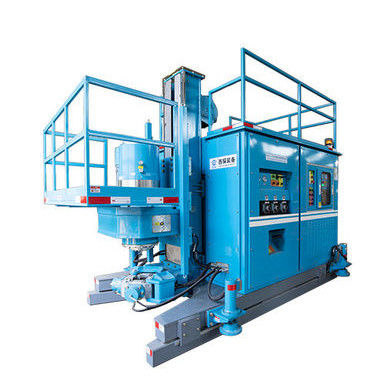

Factory Price Hydraulic Jet Grouting Drilling Rig for Soft Foundation in Russia for Sale
Introduction of Factory Price Hydraulic Jet Grouting Drilling Rig for Soft Foundation in Russia for Sale:
Factory Price Hydraulic Jet Grouting Drilling Rig for Soft Foundation in Russia for Sale is suitable for DG multi-tube rotary grouting construction with a drill diameter of 142mm or less. Factory Price Hydraulic Jet Grouting Drilling Rig for Soft Foundation in Russia for Sale can show mud volume, air volume, ground pressure, rotation speed, lifting speed, lifting distance, step distance, swing angle, etc; Printing part: able to print instantaneous mud volume, cumulative mud volume, instantaneous grouting pressure, lifting speed, hole bottom pressure, air pressure, airflow, hole cutting water pressure and hole cutting water flow; In order to prevent the drill pipe from falling into the hole, the upper and lower grippers are equipped. When the drill pipe is inverted, it is ensured that at least one of the upper and lower grippers can tighten the drill pipe. When the upper and lower grippers act together, Factory Price Hydraulic Jet Grouting Drilling Rig for Soft Foundation in Russia for Sale must be ensured that one of the two grippers tightens the drill pipe, and the other gripper or chuck can be opened; Optional wireless transmission for monitoring and equipment control on the drilling rig, with a stable wireless transmission range of 200m to 300m; It is applied to various soil textures and can be constructed by vertical technology such as full rotation and swing jet grouting.
Remark: Factory Price Hydraulic Jet Grouting Drilling Rig for Soft Foundation in Russia for Sale can be used for DG multi-tube after matching with drilling tools, high-pressure pump, and mixing system.
Main Features of Factory Price Hydraulic Jet Grouting Drilling Rig for Soft Foundation in Russia for Sale:
1. Compact drill rig structure, combined with electric control and hydraulic control, it's convenient for operation.
2. High efficiency and low energy consumption by Direct-acting load feedback variable hydraulic system.
3. Accurate control of rotary jet lifting speed and stepping distance.
4. The power head adopts a two-speed hydraulic motor with stable rotation speed and large torque. The minimum rotation speed is 0.35r/min, which effectively improves the quality of the grouting pile; the through-hole spindle load that robs can be moving fast, which can meet the requirements of the DG multi-tube.
5. Any direction grouting drilling and any special-shaped pile.
6. Quick and accurate hole positioning by viewing the screen showing the verticality of the column and the horizontality of the frame.
7. Stepping type drilling rig is flexible operation and easy moving.
8. Reduce the working intensity of installing and dismouting by an auxiliary tower and winding engine.
9. Reasonable control system with PLC electronic control display, clear identification, and easy operation.
Application of Factory Price Hydraulic Jet Grouting Drilling Rig for Soft Foundation in Russia for Sale:
Factory Price Hydraulic Jet Grouting Drilling Rig for Soft Foundation in Russia for Sale can be applied to railways, highways, bridges, roadbeds, dam foundations, and other industrial and civil buildings, such as foundation reinforcement, water insulation, and plugging engineering, soft foundation treatment, and geological disaster control.
1. Factory Price Hydraulic Jet Grouting Drilling Rig for Soft Foundation in Russia for Sale can be equipped with high power and high flow XTB series foundation strengthening pump and automatic mixer.
2. Wireless transmission is optional to monitor and control the equipment on the drilling rig, and the wireless transmission range is stable within a 200m-300m radius.
3. In addition, the Factory Price Hydraulic Jet Grouting Drilling Rig for Soft Foundation in Russia for Sale is also suitable for other processes.
|Column Form||Vertical fixed|
|Max Diameter||Max 4m|
|Feeding Stroke||1 m|
|Rotation Speed||Low 0-24r/min|
|Lifting Speed||Max 4 m/min|
|Through-hole||150 mm hydraulic chucks|
Shannxi Xitan Geological Equipment Co., Ltd was established in 1958 as a specialized drilling rig manufacturer for more than 60 years. High-pressure jet grouting rigs, multifunctional engineering drilling rigs, anchor drilling rigs, and environmental drill rigs are our featured products with advanced technology, and other grouting equipment such as grouting pumps, and auto grout mixing stations are low energy consumption, environmental protection, and cost-effective. We are a High-pressure Jet Grouting Engineering Technology Center and National High-tec Enterprise in ancient City-Xi'an. The factory area is 23,000 m2. 300 million yuan production capacity per year can be reached. 150 million yuan has been invested in production line building and technological innovation.
1. Are you the manufacturer?
Ans: Yes, we are a factory with more than 60years of manufacturing experience.
2. What are your terms of payment?
Ans: 50% deposit prepaid by T/T, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
3. How about your delivery time?
Ans: Except GY60/80 anchor drilling rig is not in stock, the common drilling rig has in stock, and could be delivered in one week after getting your full payment.
Customized drilling rig will take 15-45 days after receiving your advance payment. The specific delivery depends on the items and the quantity of your order.
4. What is the warranty of our machine?
Ans: Our main machine enjoys one year warranty. But unreasonable operation and wearing parts exclude.
5. Do you test all your goods before delivery?
Ans: Yes, we have 100% test before delivery. And we will attach our inspection report for every machine.
6. Do you have after-service?
Ans: Yes, we have a special after-sales service team that will supply you with professional guidance. And we provide videos for machine installation and operation.
If you need, we can send our engineers to your worksite and provide the training for your staff.
