Diamond Bit 200m 7500kg Hydraulic Crawler Drilling Machine
1set
MOQ
Negotiation
Price
Diamond Bit 200m 7500kg Hydraulic Crawler Drilling Machine
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: XiTan Equipment
Certification: CE; ISO9001:2015
Model Number: GM-6A
High Light:

7500kg Hydraulic Crawler Drilling Machine

,

200m hydraulic crawler drilling machine

,

GM6A Crawler Drilling Machine

Payment & Shipping Terms
Packaging Details: Container
Delivery Time: 7-120 days
Payment Terms: T/T
Supply Ability: 200 set/year
Specifications
Condition: New
Drill Hole Diameter: Φ50-Φ200 Mm
Drill Hole Depth: 50-200 M
Bit Type: Diamond
Voltage: As Yours
After-Sales Service Provided: Engineers Available To Service Machinery Overseas
Product Description

GM-6A Diamond Bit 200m 7500kg Hydraulic Crawler Drilling Machine



Application:

GM-6A Diamond Bit 200m 7500kg Hydraulic Crawler Drilling Machine is mainly applied for a variety of drilling techniques such as rotary drilling, auger drilling, air down-the-hole hammer drilling, follow-up drilling, and high-pressure jet grouting for construction, which is widely used in engineering fields such as tunnel pipe-shed support, advanced forecasting, deep foundation anchoring, blast holes in open-air quarrying, anti-floating anchoring, geothermal holes, hydrological wells, and geological disaster control.



Technical Data:

Mode GM-6A
Motor Motor 55kW Diesel 55kW
Weight 7.5t
Size 5000mm×2200mm×2300mm
Speed 1.5km/h
Climbing Capacity 20°
Diameter Pile
Max Diameter Max 2.2m
Max Depth 200m
Power Head
Feeding Stroke 3.4m
Feeding Force 35kN
Rotation Speed Low 0—60r/min
High 0-120r/min
Lifting Power 65KN
Torque 4000N.m-8000N.m
Borehole
Depth 50~200m
Diameter Φ50-Φ200mm
Drill pipe (diameter x length) (Φ50,Φ89)x3000mm
Horizontal Hole Height High 3100mm Low 2100mm
Column
Sliding Stroke 900mm
Pitch Angle 90°~ -10°
Swing Angle ±25°





Features:

■ Wide luffing angle, the drilling rig can do multi-row and multi-angle drilling in one position, with strong adaptability.

■ With crawler self-propelled function, and equipped with frame rotation device, the equipment can be moved conveniently and quickly.

■ Optional orifice single clamp holder or double clamp holders, equipped with special shackle tools, it is more convenient to disassemble the drill pipe, , which effectively reduces the labor intensity and installing and disassembling drill pipe.

■ Hydraulic system adopts imported brand components, which are stable, reliable, and has a long service life.

■ The power head adopts hydraulic speed change mode, which can be stepless speed change within a certain range, and has high and low gears.

■ The console can swing and rotate, Easy observation through adjustable distance between the orifice and rig.

■ The rolling sliding way of the power head, makes the drilling angle stable and low maintenance cost .

■ Modular design, the whole machine reserves the position of the spare hydraulic system, which is convenient for the later upgrade and modification of the top drive head for the top drive construction.

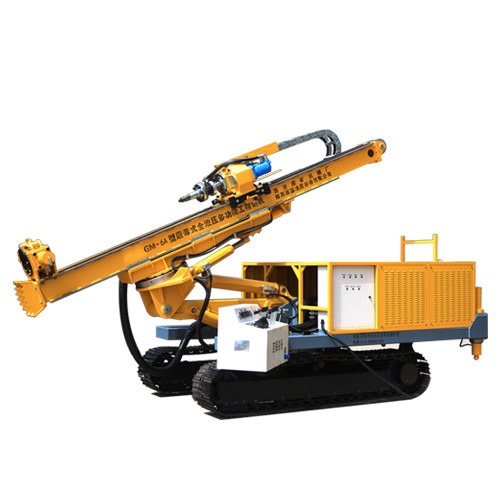

Diamond Bit 200m 7500kg Hydraulic Crawler Drilling Machine 0

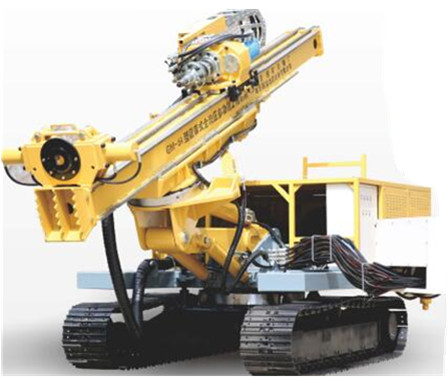

Diamond Bit 200m 7500kg Hydraulic Crawler Drilling Machine 1

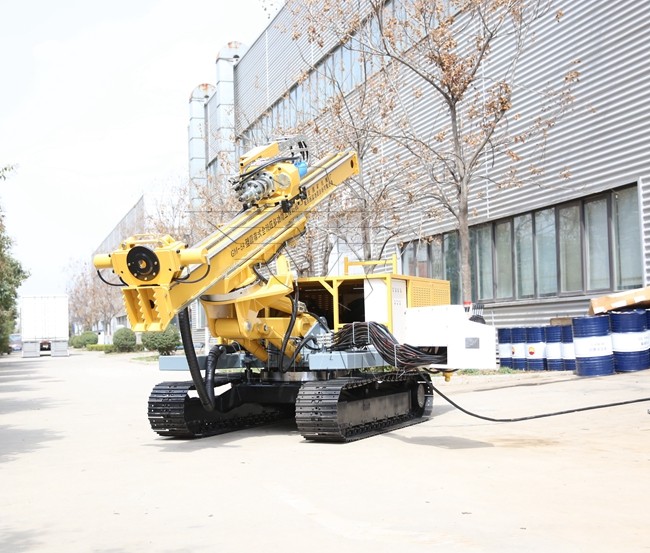

Diamond Bit 200m 7500kg Hydraulic Crawler Drilling Machine 2
