56kW Diesel 150m Drilling Equipment In Construction
1set
MOQ
Negotiation
Price
56kW Diesel 150m Drilling Equipment In Construction
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: XiTan Equipment
Certification: CE; ISO9001:2015
Model Number: GL-6000S
High Light:

150m Drilling Equipment In Construction

,

56kW Drilling Equipment In Construction

,

GL 6000S Diesel Drilling Rig

Payment & Shipping Terms
Packaging Details: Container
Delivery Time: 7-120 days
Payment Terms: T/T
Supply Ability: 200 set/year
Specifications
Product Name: Jet Grouting Rig
Type: Full Hydraulic, Crawler,Rotary, Jet Grouting
Condition: New
Power Type: Electric/Diesel
Dimension(L*W*H): 5.6m×2m×2.93m
Drill Diameter (mm): 110-400mm
Drill Depth (m): 50-200m
Drilling Angle: 360
Applicable Industries: Construction Works,ground Improvement
Pile Diameter: 2.2 M
Supplier: Manufacture
Voltage: As Requirement
Product Description

GL-6000S 56kW Diesel 150m Drilling Equipment In Construction



Construction Application:

1. Tunnels Pipe shed support.

2. Rock and soil anchoring.

3. Blasting holes.

4. Embankment and dam reinforcement.

5. Drilling holes for geothermal energy.

6. Hydrological wells.

7. Foundation pile construction.
8. Geological disaster treatment and other engineering fields.



Technical Data:

Mode GL6000S
Motor Motor 55kW Diesel 56kW
Weight 7.9t
Size 5600mm×2000mm×2930mm
Speed High 5.06 km/h Low 2.6km/h
Climbing Capacity 20°
Diameter Pile
Max Diameter Max 2.2m
Max Depth 200m
Power Head
Feeding Stroke 3m
Feeding Force 58kN
Rotation Speed Low 8~50.6r/min
High 16~101r/min
Lifting Power 110kN
Torque 3000N.m~6000N.m
Borehole
Depth 50~200m
Diameter 110~400mm
Drill pipe (diameter x length) 60~89×2500mm
Horizontal Hole Height High 3450mm Low 338mm
Column
Sliding Stroke 1200mm
Pitch Angle 120°
Swing Angle 0°~90°
Drill Arm Pitching Angle Elevation angle 35°

Pitch Angle

16°

Hydraulic System
Rated Flow Main Pump 100L/min
Sub-pump 30L/min 15L/min
Rated Pressure Main Pump 21MPa
Sub-pump 18MPa





Drilling Method:

1. Carbide bits drilling.

2. rotation drilling.

3. auger drilling.

4. Drilling with a pneumatic DTH hammer.

5. Pneumatic DTH hammer and following-up casing drilling.

6. Extensional functions are rotary jet grouting, swivel jet grouting, or fixed jet grouting drilling.



Optional Power:

1. Diesel power

2. Electric motor

3. Diesel electric dual power

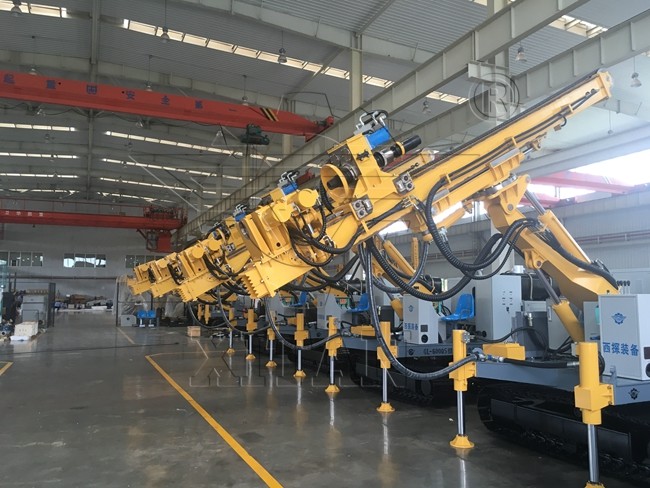

56kW Diesel 150m Drilling Equipment In Construction 0

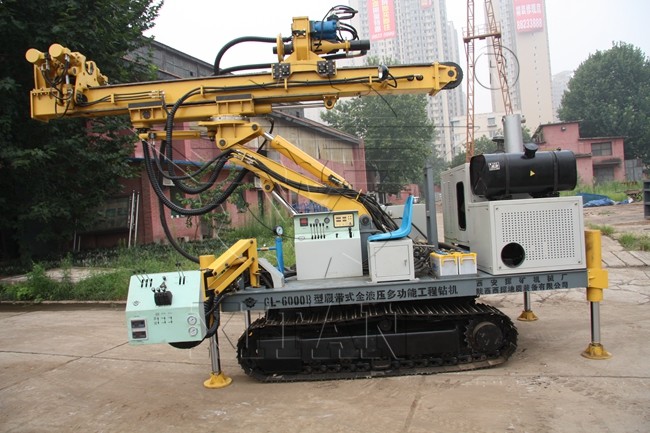

56kW Diesel 150m Drilling Equipment In Construction 1
