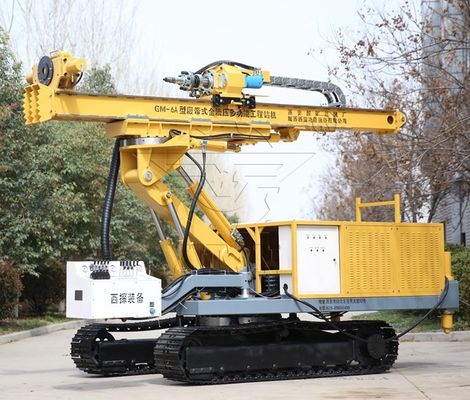

GM-6A Crawler Type Full Hydraulic Construction Jet Grouting Drilling Rig
GM-6A Construction Drilling Rig is mainly applied for a variety of drilling techniques such as rotary drilling, auger drilling, air down-the-hole hammer drilling, follow-up drilling, and high-pressure jet grouting for construction, which is widely used in engineering fields such as tunnel pipe-shed support, advanced forecasting, deep foundation anchoring, blast holes in open-air quarrying, anti-floating anchoring, geothermal holes, hydrological wells, and geological disaster control.
|Motor||Motor 55kW||Diesel 55kW|
|Max Diameter||Max 2.2m|
|Rotation Speed||Low 0—60r/min|
|Drill pipe (diameter x length)||(Φ50,Φ89)x3000mm|
|Horizontal Hole Height||High 3100mm||Low 2100mm|
|Pitch Angle||90°~ -10°|
