GM-6A Soil Nail Anchoring Construction Drilling Rig
GM-6A Soil Nail Anchoring Construction Drilling Rig
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: XiTan Equipment
Certification: CE; ISO9001:2015
Model Number: GM-6A
Payment & Shipping Terms
Packaging Details: Container
Delivery Time: 7-120 days
Payment Terms: T/T
Supply Ability: 200 set/year
Condition: New
Drill Hole Diameter: Φ50-Φ200 Mm
Drilling Method: Rotary Drilling, Auger Drilling, DTH Hammer Drilling,anchoring
Bit Type: Diamond
Voltage: As Yours
After-Sales Service Provided: Engineers Available To Service Machinery Overseas
Type: Crawler Full Hydraulic Drilling Rig
Application: Deep Foundation Engineering, Soil Nailing, Anchoring,pipe Support
Product Description

GM-6A Soil Nail Anchoring Construction Drilling Rig



1.  The shell: the installation of the shell shape makes the machine more scientific, but also protects the key hydraulic parts from pollution.

2. Outriggers: Not only to allow the cylinder from damage but also to enhance the support strength.

3. Console: split console, make the operation more simple, to avoid misuse.

4. Track: longer and stronger track, effectively prevent sagging, to adapt to a wider range of strata.

5. Lifting: Adjustable orifice height, no longer depends on the level of the face.

6. Automatic turntable: eliminating manual labor, easier and more convenient.

7. Through-hole high-pressure faucet: the necessary equipment to expand the head construction.

8. Power head: The drilling machine gyrator is driven by a double hydraulic motor, with big output torque and a lower swing center than similar products, which greatly improves the balance of drilling rig drilling. Expansion joints are configured to greatly extend the drill pipe thread life.

9. Cooling system: According to the customer's special conditions, the cooling system is optimized to ensure that the hydraulic system when the outdoor temperature is 45 ℃, the maximum temperature does not exceed 70 ℃.

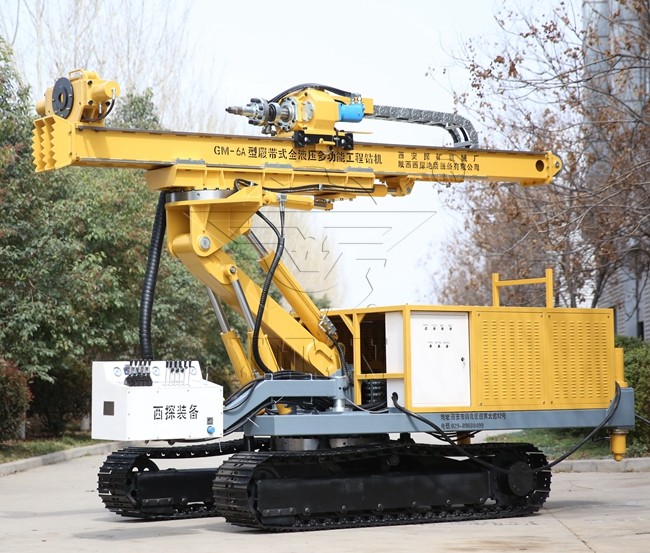

GM-6A Soil Nail Anchoring Construction Drilling Rig 0


GM-6A Construction Drilling Rig is mainly used for rotary drilling, auger drilling, pneumatic DTH  hammer drilling, follow-up drilling, and high-pressure jet grouting.


Application of Construction:

1. Tunnel pipe-shed support, advanced forecasting

2.  Deep foundation

3. Anchoring

4. Blastholes in open-air quarrying

5. Anti-floating anchoring

6. Geothermal pump holes

7. Hydrological wells

8. geological disaster control

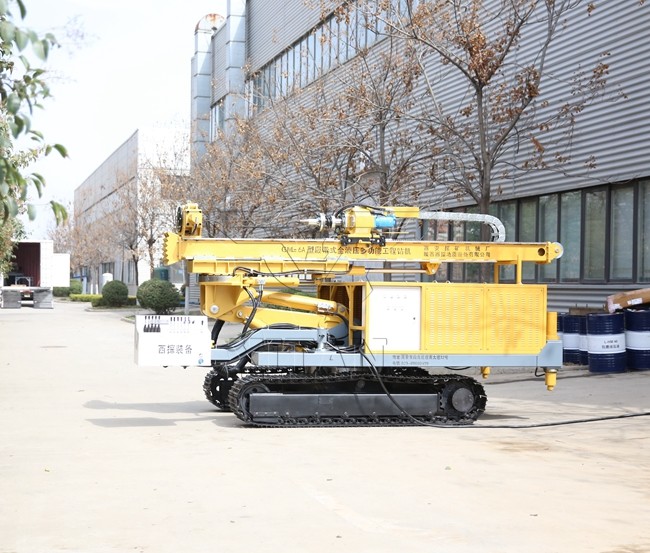

GM-6A Soil Nail Anchoring Construction Drilling Rig 1

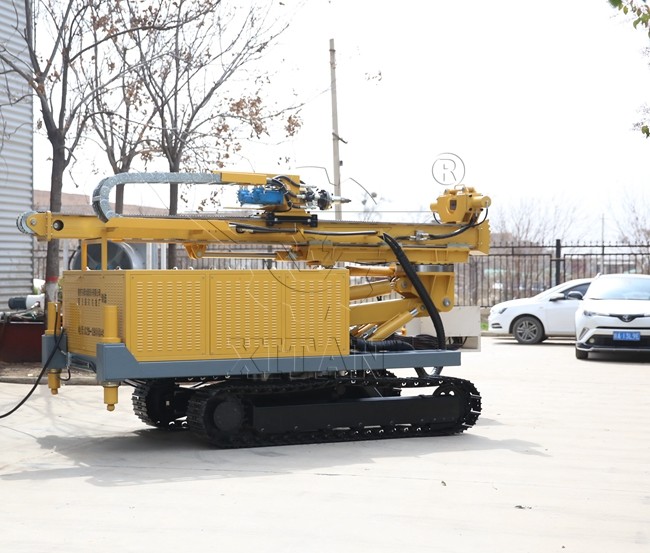

GM-6A Soil Nail Anchoring Construction Drilling Rig 2


GM-6A Soil Nail Anchoring Construction Drilling Rig 3



Technical Data:

Mode GM-6A
Motor Motor 55kW Diesel 55kW
Weight 7.5t
Size 5000mm×2200mm×2300mm
Speed 1.5km/h
Climbing Capacity 20°
Diameter Pile
Max Diameter Max 2.2m
Max Depth 200m
Power Head
Feeding Stroke 3.4m
Feeding Force 35kN
Rotation Speed Low 0—60r/min
High 0-120r/min
Lifting Power 65KN
Torque 4000N.m-8000N.m
Depth 50~200m
Diameter Φ50-Φ200mm
Drill pipe (diameter x length) (Φ50,Φ89)x3000mm
Horizontal Hole Height High 3100mm Low 2100mm
Sliding Stroke 900mm
Pitch Angle 90°~ -10°
Swing Angle ±25°
